67D-Link DIR-815 User Manual
Section 3 - Conguration
IPv6
6to4-StatelessAutoconguration

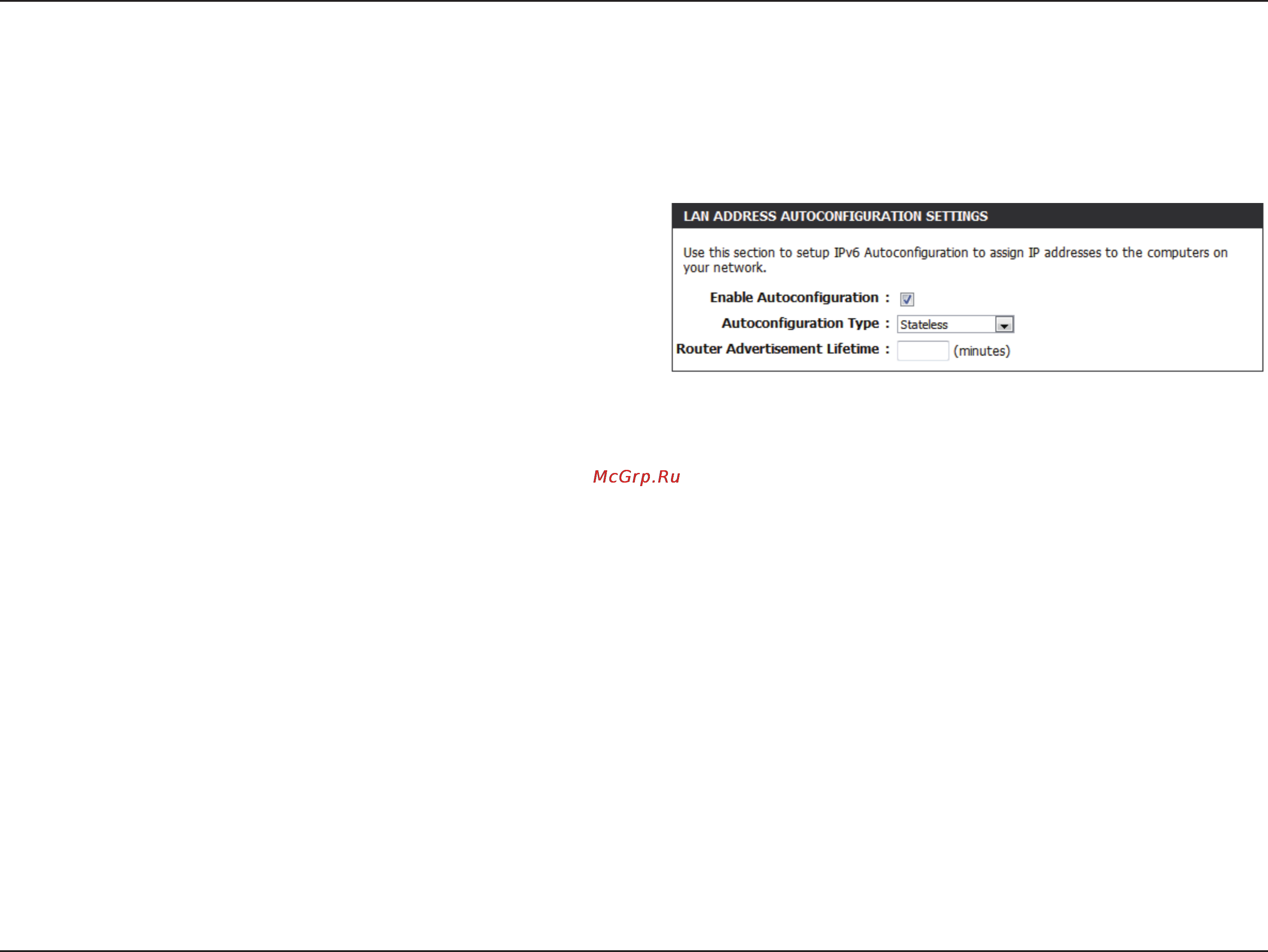

To congure the Router to use an IPv6 to IPv4 tunnel stateless autoconguration connection, congure the parameters in the
LAN Address Autoconguration Settings section as described below:
Check to enable the Autoconguration feature.
Select the Stateless option from the drop-down menu.
Enter the Router Advertisement Lifetime (in minutes).
Enable
Autoconguration:
Autoconguration
Type:
Router
Advertisement
Lifetime:
Click the Save Settings button to save any changes made.
