75D-Link DIR-815 User Manual
Section 3 - Conguration

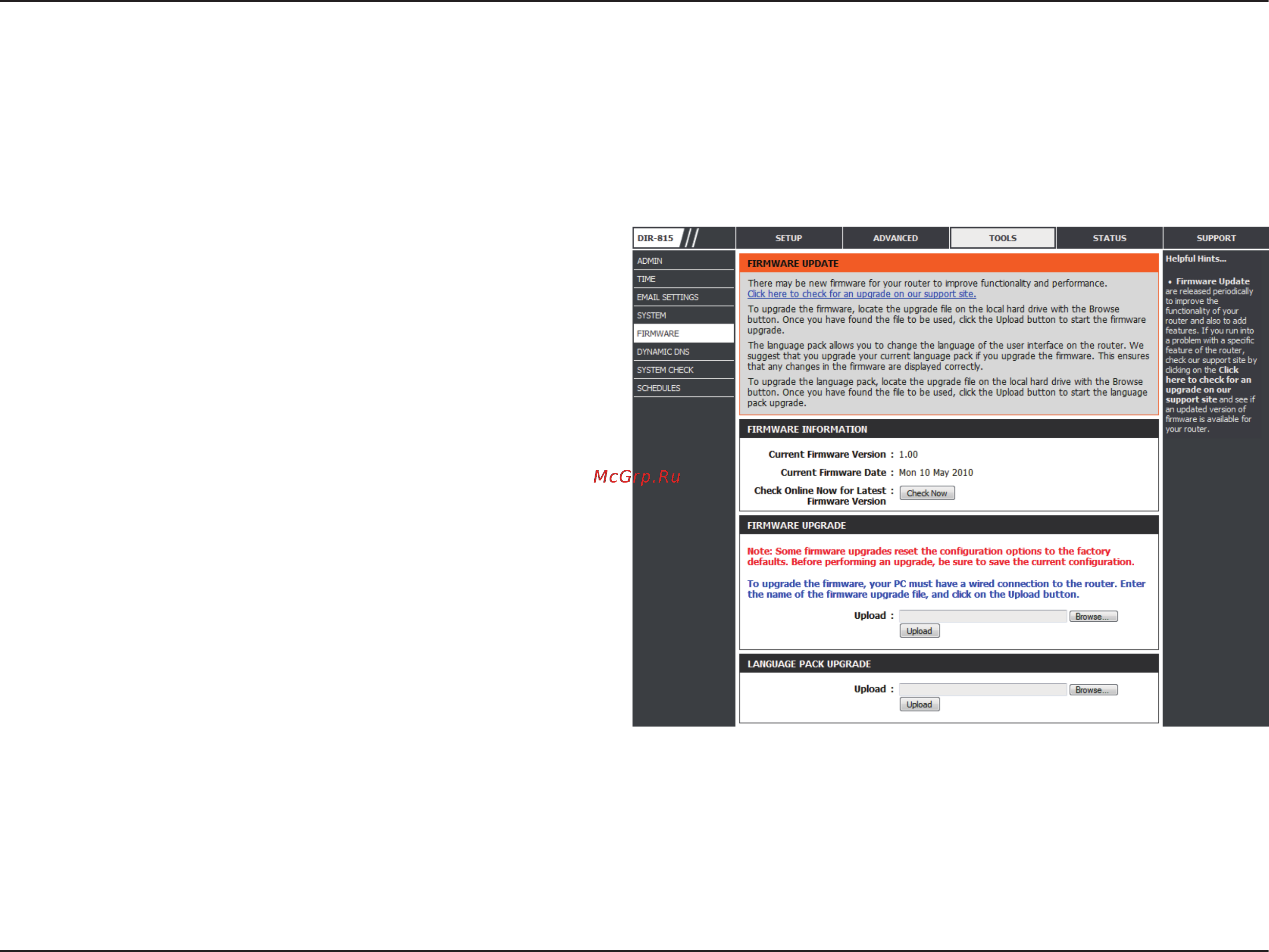

This section displays information about the rmware
that is loaded on the Router. Click the Check Now
button to nd out if there is an updated rmware; if so,
download the new rmware to your hard drive.
After you have downloaded the new rmware, click
Browse to locate the rmware update on your hard
drive. Click Upload to complete the rmware upgrade.
If you want to change the Router’s language pack, click
Browse to locate the language pack. Click Upload to
complete the load the new language pack.
Firmware
Information:
Firmware
Upgrade:
Language Pack
Upgrade:
Firmware
Use the Firmware window to upgrade the rmware of the Router and install language packs. If you plan to install new rmware,
make sure the rmware you want to use is on the local hard drive of the computer. If you want to install a new language pack,
make sure that you have the language pack available. Please check the D-Link support site for rmware updates at http://
support.dlink.com. You can download rmware upgrades to your hard drive from the D-Link support site.
