D-Link DIR-815 [45/123] Router settings
![D-Link DIR-815 [45/123] Router settings](/views2/1044559/page45/bg2d.png)
40D-Link DIR-815 User Manual
Section 3 - Conguration
Network Settings
Enter the IP address of the router. The default IP address
is 192.168.0.1.
If you change the IP address, once you click Apply, you
will need to enter the new IP address in your browser to
get back into the conguration utility.
Enter the Subnet Mask. The default subnet mask is
255.255.255.0.
Enter a Host Name to identify the DIR-815.
Enter the Domain name (Optional).
Uncheck the box to transfer the DNS server information
from your ISP to your computers. If checked, your
computers will use the router for a DNS server.
Router IP Address:
Default Subnet
Mask:
Host Name:
Local Domain:
Enable DNS Relay:

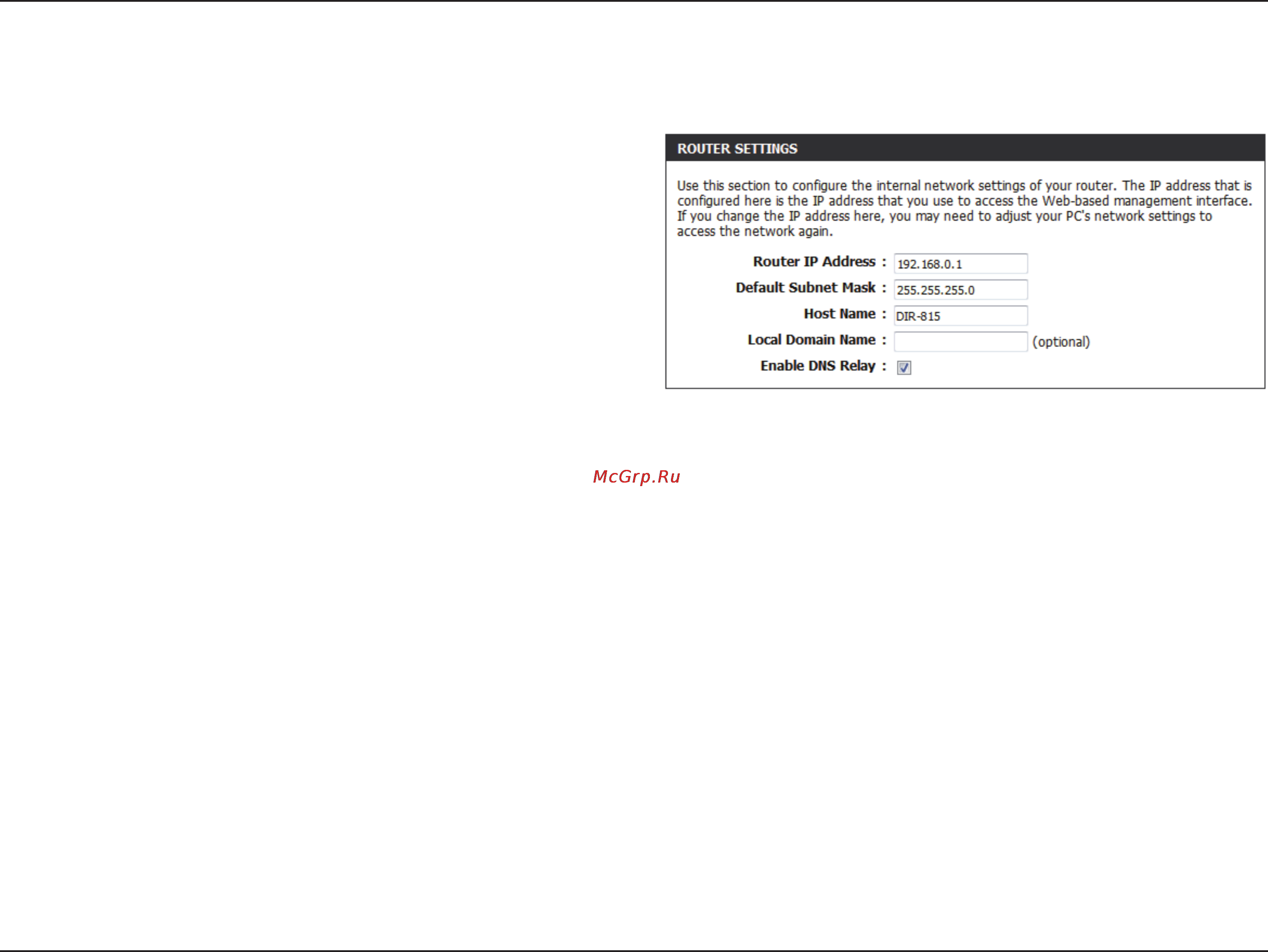

Router Settings
Click the Save Settings button to save any changes made.
