66D-Link DIR-815 User Manual
Section 3 - Conguration
IPv6
6to4

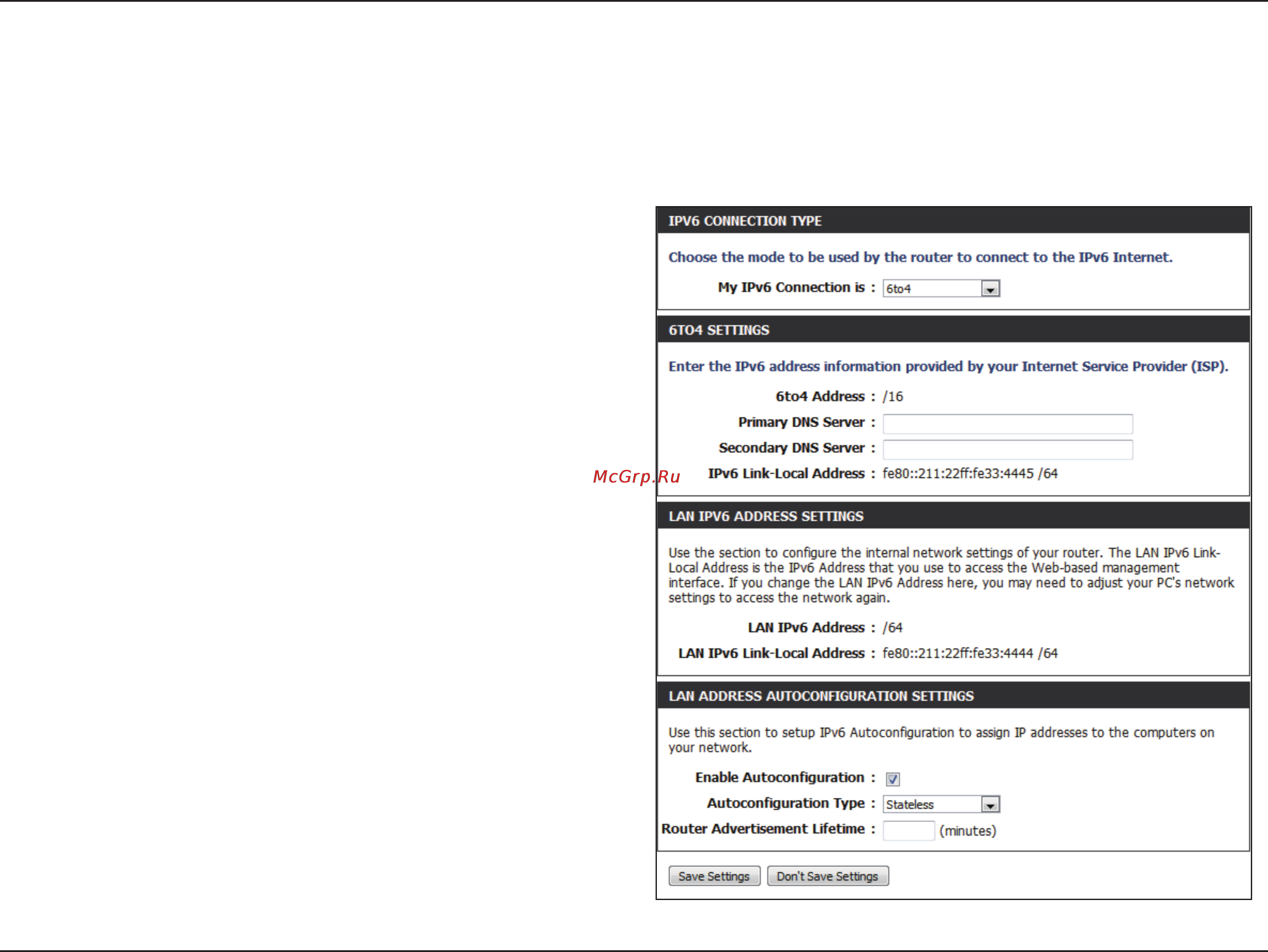

Select 6to4 from the MyIPv6Connectionis drop-down menu if your Router will use an IPv6 to IPv4 tunnel to connect to the
Internet.
Enter the address settings supplied by your Internet
provider (ISP).
Enter the LAN (local) IPv6 address for the router.
Displays the Router’s LAN Link-Local Address.
Use this section to congure the IPv6 autoconguration
settings.
WANIPv6Address
Settings:
LANIPv6Address:
LANIPv6
Link-Local Address:
LAN Address
Autoconguration
Settings:
Click the Save Settings button to save any changes made.
