D-Link DIR-815 [88/123] Wireless
![D-Link DIR-815 [88/123] Wireless](/views2/1044559/page88/bg58.png)
83D-Link DIR-815 User Manual
Section 3 - Conguration

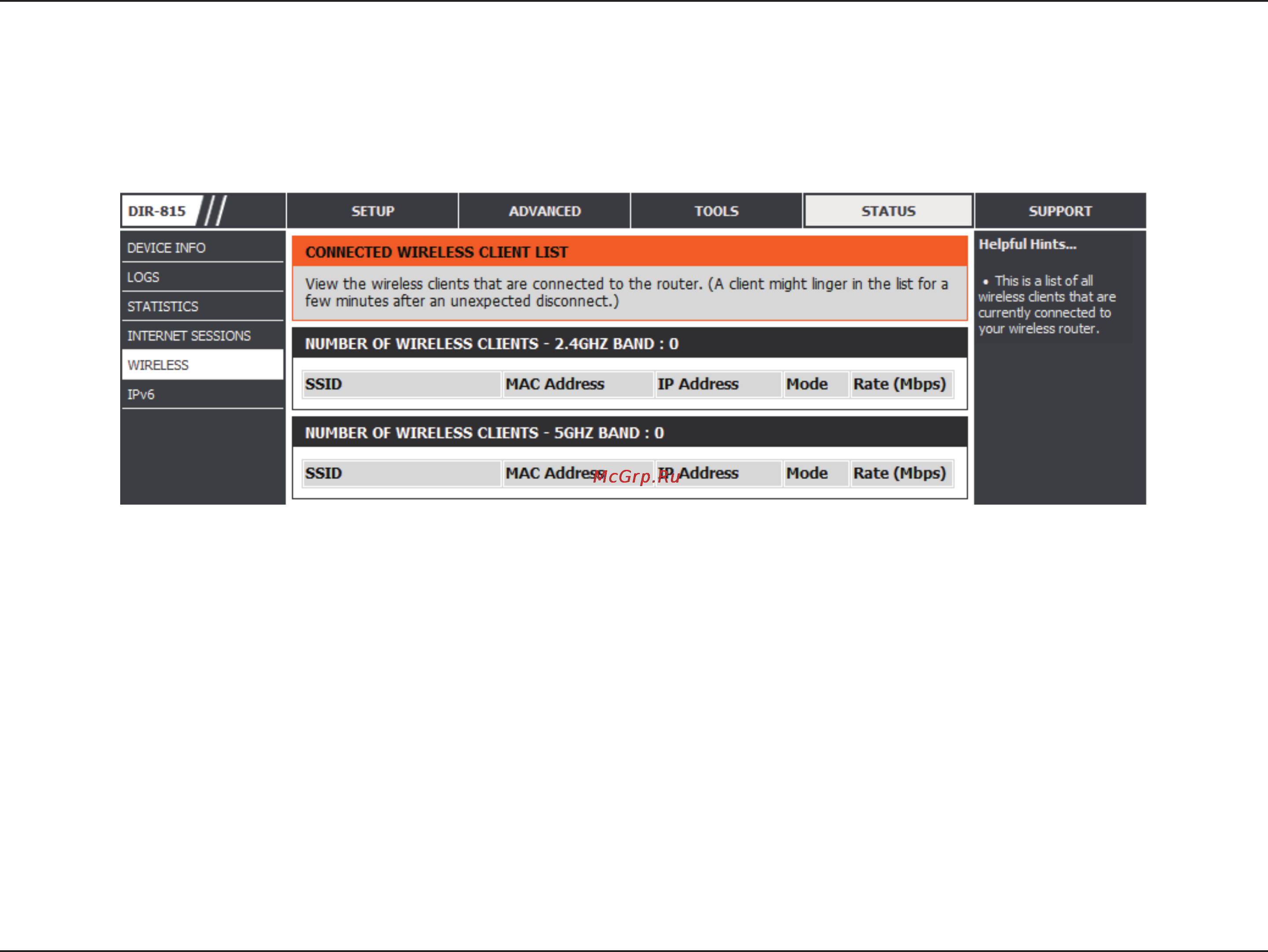

The wireless client table displays a list of current connected wireless clients. This table also displays the connection time and
MAC address of the connected wireless clients.
Wireless
