26D-Link DIR-815 User Manual
Section 3 - Conguration
Select Static IP if your ISP assigned you the IP address,
subnet mask, gateway, and DNS server addresses. In most
cases, select Dynamic.
Enter the IP address (Static PPPoE only).
Enter your PPPoE user name.
Enter your PPPoE password and then retype the password
in the next box.
Enter the ISP Service Name (optional).
Use the radio buttons to specify the reconnect mode.
The user can specify a custom schedule or specify the On
Demand, or Manual option.
To specify a custom schedule, use the drop-down menu to
select one of the schedules that has been dened in the
Tools> Schedules window. To create a new schedule, click
the New Schedule button to open the Tools> Schedules
window. Refer to “Schedules” on page 78 for more information.
Enter a maximum idle time during which the Internet
connection is maintained during inactivity. To disable this
feature, enable Auto-reconnect.
Enter the Primary and Secondary DNS Server Addresses (Static PPPoE only).
Address Mode:
IP Address:
User Name:
Password:
Service Name:
Reconnect
Mode:
MaximumIdle
Time:
DNS Servers:

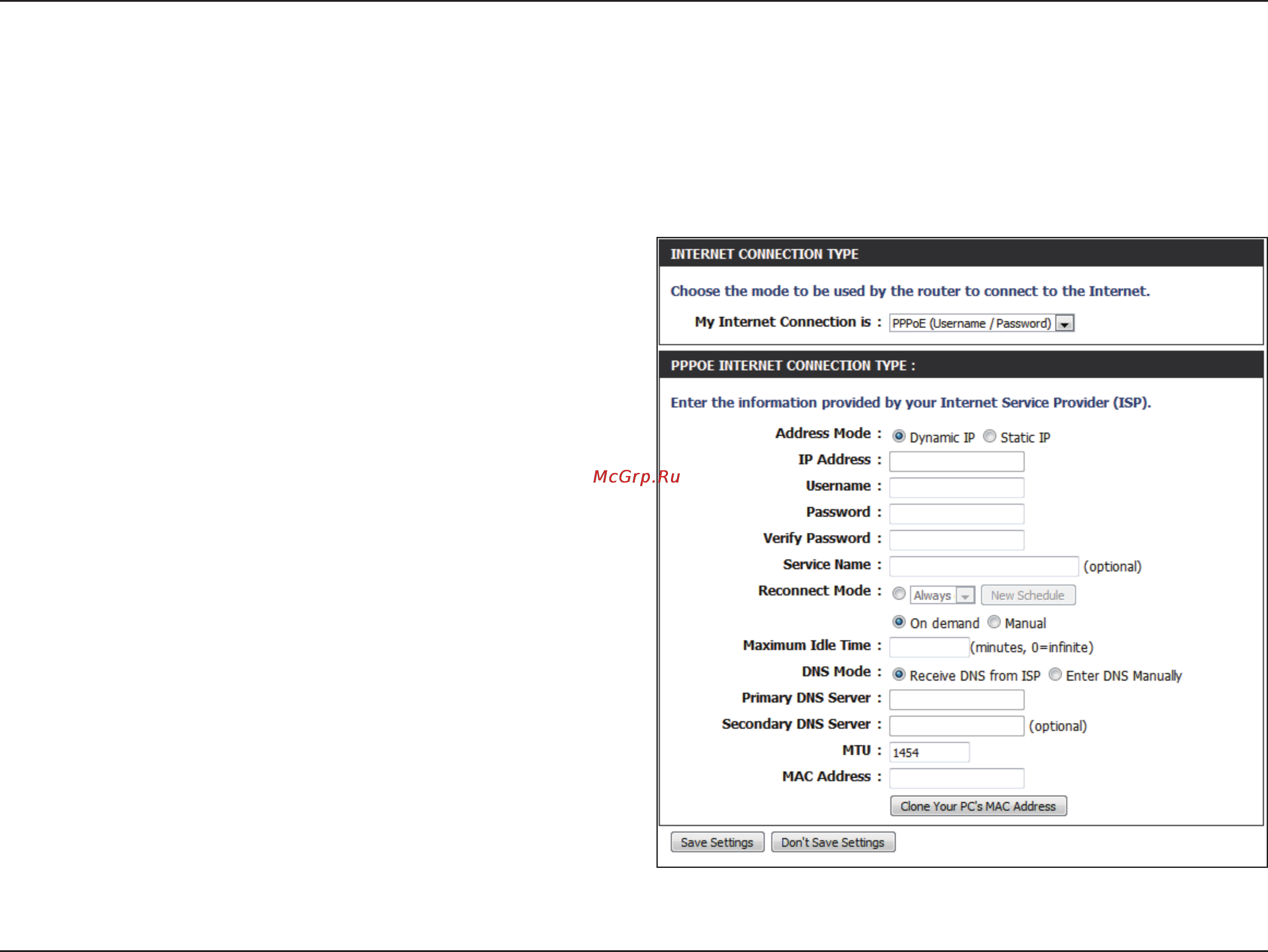

Manual Internet Connection Setup
PPPoE (Username/Password)
Select PPPoE (Username/Password) from the drop-down menu if your ISP uses a PPPoE connection. Your ISP will provide you
with a username and password. This option is typically used for DSL services. Make sure to remove your PPPoE software from
your computer. The software is no longer needed and will not work through a router.
