84D-Link DIR-815 User Manual
Section 3 - Conguration
IPv6

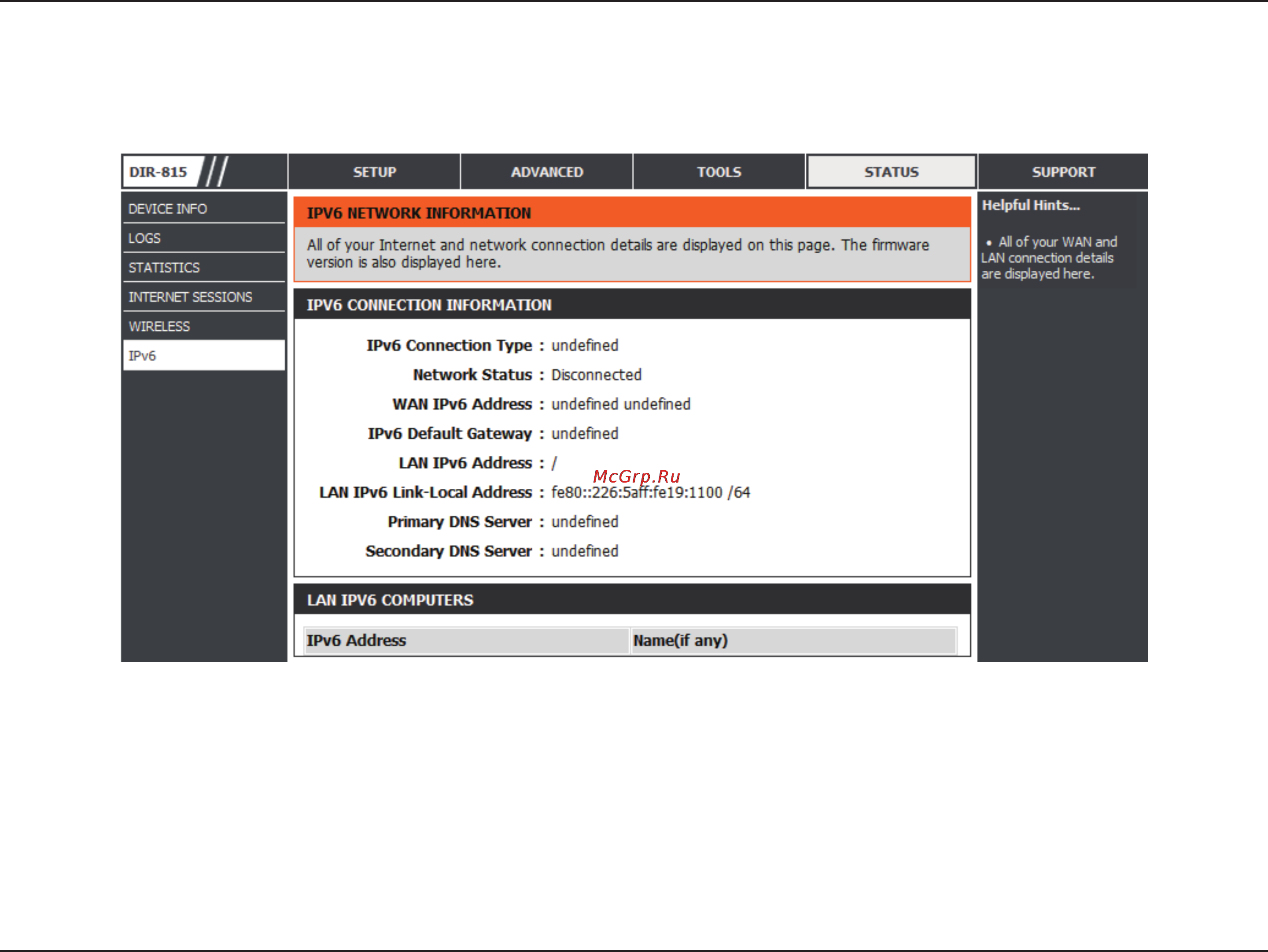

The IPv6 page displays a summary of the Router’s IPv6 settings and lists the IPv6 address and host name of any IPv6 clients.
