51D-Link DIR-815 User Manual
Section 3 - Conguration

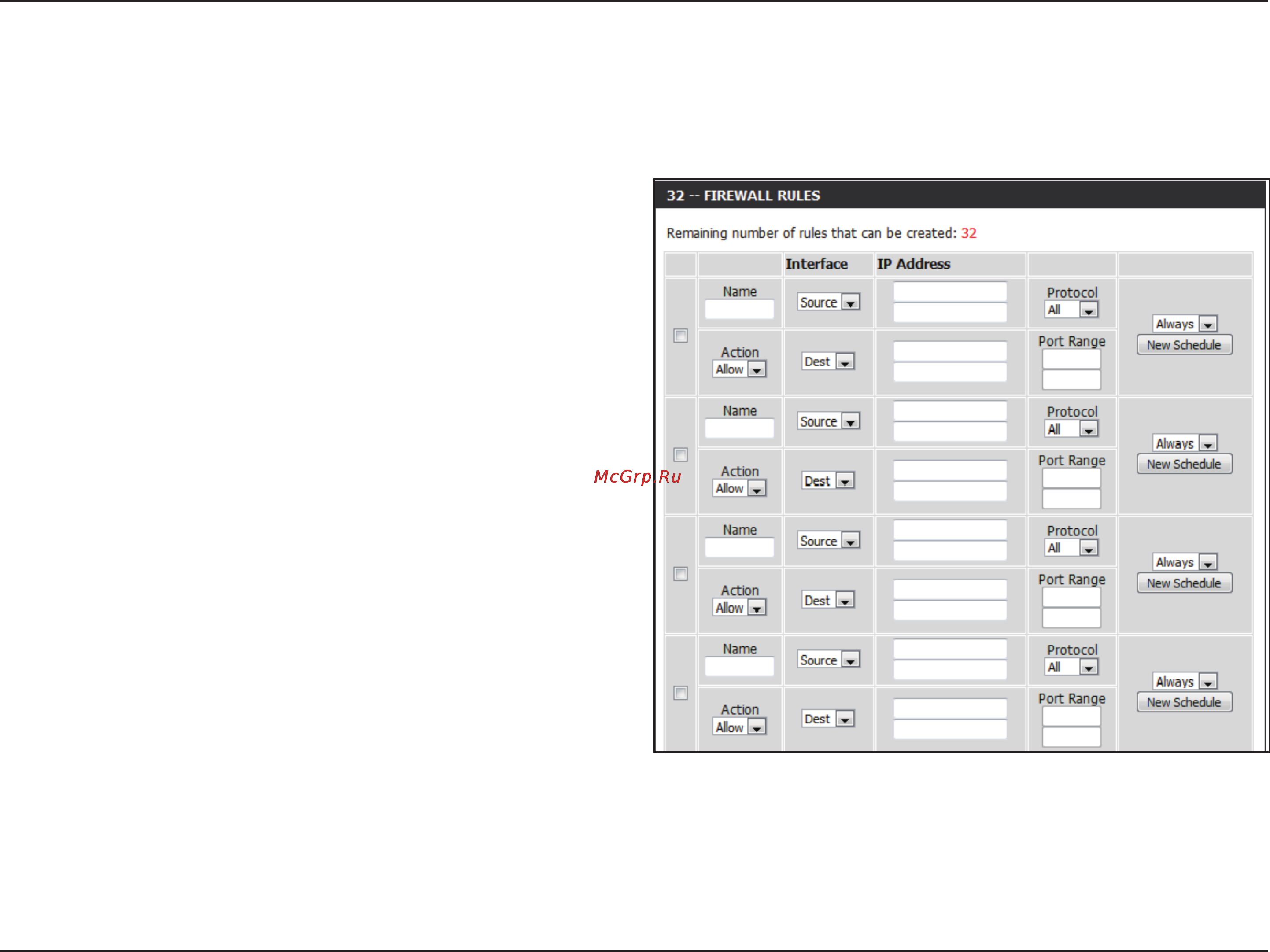

Use the Firewall Rules section to create/modify rewall rules.
Firewall Settings
Firewall Rules
Check the box on the left side to enable the rewall rule.
Enter a name to identify the rewall rule.
Use the drop-down menu to Allow or Deny transport of
the data packets according to the criteria dened in the
rewall rule.
Use the Source drop-down menu to specify the interface
that connects to the source IP addresses of the rewall rule.
Enter the rst source IP address in the range in the adjacent
top IP Address eld.
Enter the last source IP address in the range in the IP
Address eld below.
Use the Dest drop-down menu to specify the interface that
connects to the destination IP addresses of the rewall rule.
Enter the rst destination IP address in the range in the
adjacent top IP Address eld.
Enter the last destination IP address in the range in the IP
Address eld below.
EnableCheckbox:
Name:
Action:
Source:
Dest:
