91D-Link DIR-815 User Manual
Section 4 - Security
Congure WEP
It is recommended to enable encryption on your wireless router before your wireless network adapters. Please establish
wireless connectivity before enabling encryption. Your wireless signal may degrade when enabling encryption due to the
added overhead.
1. Log into the web-based conguration by opening a web browser
and entering the IP address of the router (192.168.0.1).
2.Click on Setup and then click Wireless Settings on the left side.
3. Click the Manual Wireless Connection Setup button.

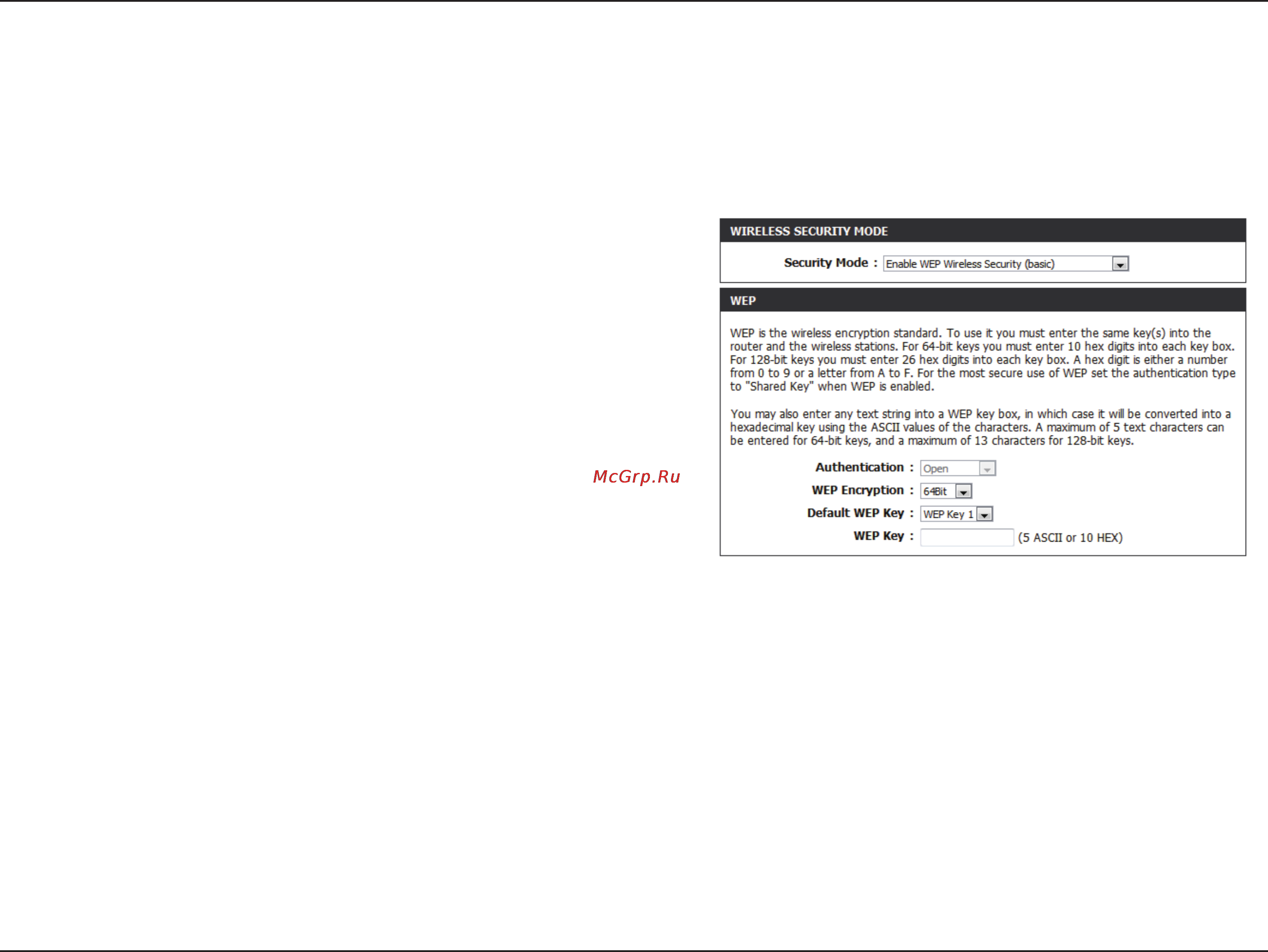

4. Next to Security Mode, select Enable WEP Wireless Security (basic).
5. Next to WEP Encryption, select 64bitor128bit.
6. Next to Default WEP Key, select the WEP key you would like to use
as the default WEP key. The available options are WEPKey1, WEP
Key2, WEP Key 3, or WEPKey4.
7. Enter the WEP key you would like to use in the WEP Key eld.
8. Click Save Settings to save your settings. If you are conguring the router with a wireless adapter, you will lose connectivity
until you enable WEP on your adapter and enter the same WEP key as you did on the router.
