77D-Link DIR-815 User Manual
Section 3 - Conguration

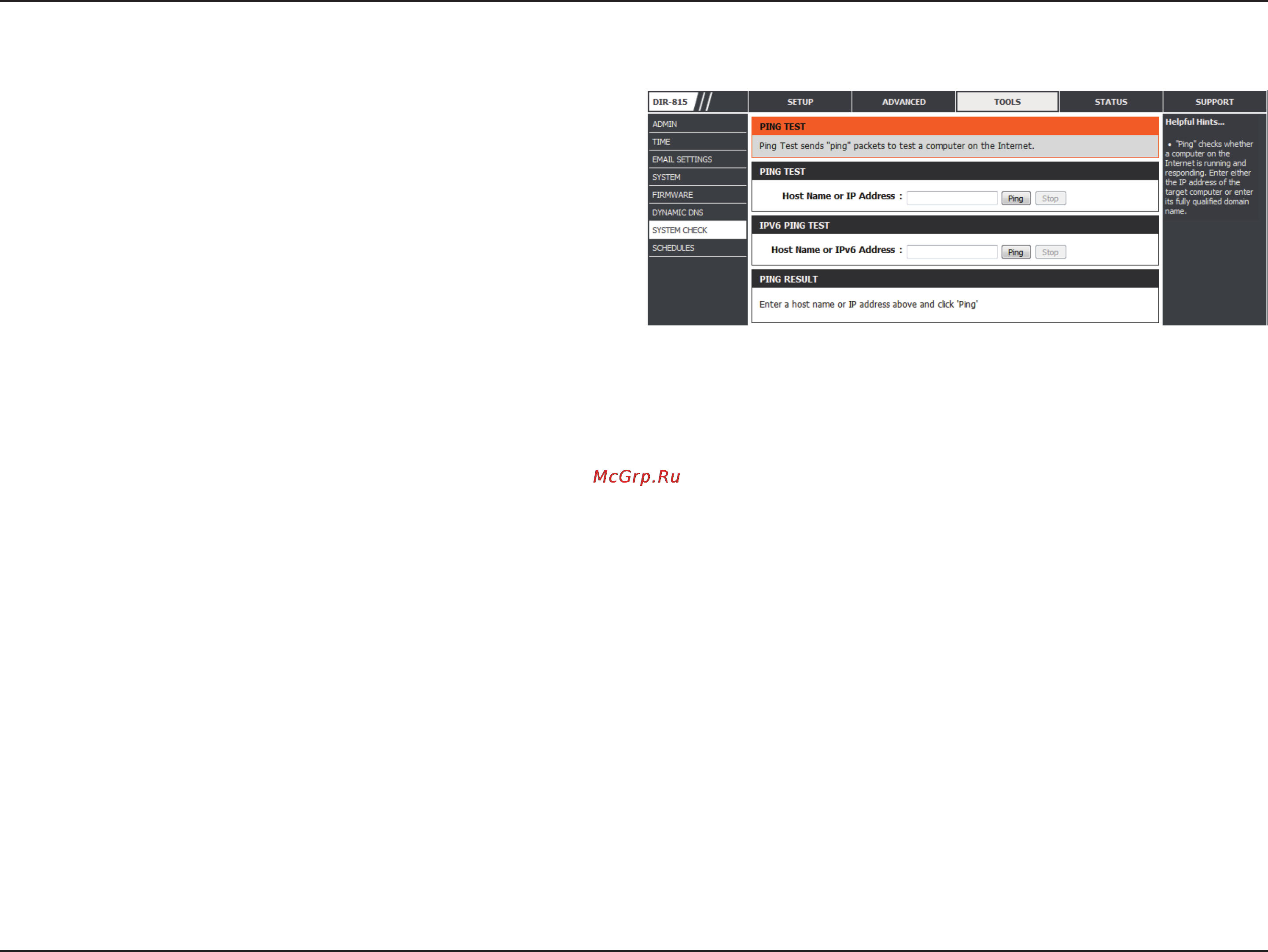

The Ping Test is used to send Ping packets to test if a
computer is on the Internet. Enter the IP Address that you
wish to Ping, and click Ping. Click Stop to stop sending
Ping packets
The IPv6 Ping Test is used to send IPv6 Ping packets to test
if a computer is on the Internet. Enter the IPv6 Address
that you wish to Ping, and click Ping. Click Stop to stop
sending IPv6 Ping packets
The results of your Ping/IPv6 Ping attempts will be
displayed here.
System Check
Ping Test:
IPv6Ping
Test:
Ping Results:
