39D-Link DIR-815 User Manual
Section 3 - Conguration

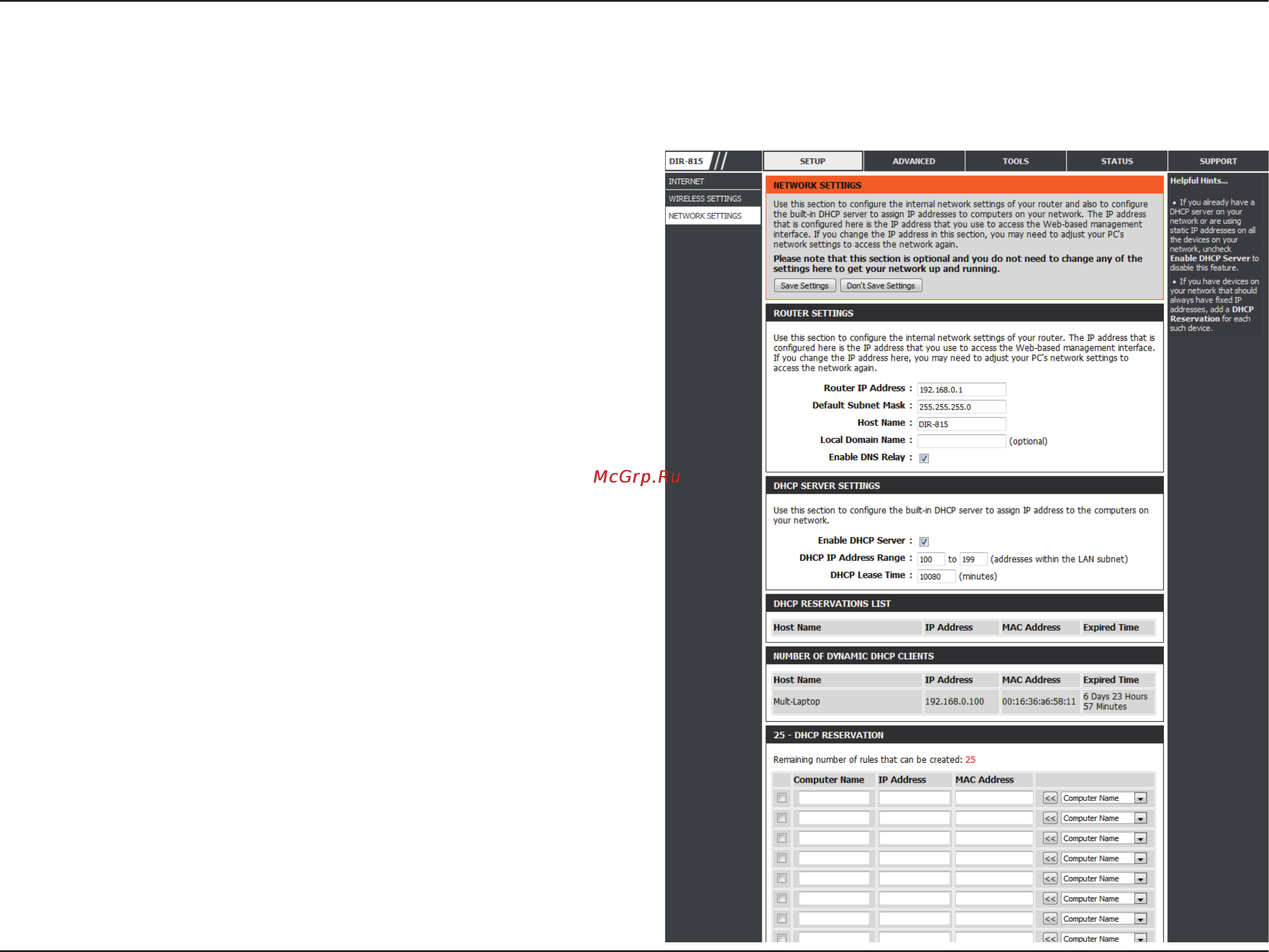

This section will allow you to change the local network settings of the router and to congure the DHCP settings.
Network Settings
Use this section to congure the Router’s local network
settings.
Use this section to congure the DIR-815’s built-in DHCP
server settings.
Displays information about the devices that have a DHCP
reservation from the DIR-815. The information includes the
Host Name, IP Address, MAC Address, and Expiration Time.
Displays information about the devices that have a
dynamic DHCP lease from the DIR-815. The information
includes the Host Name, IP Address, MAC Address, and Lease
Expiration Time.
Use this section to create a new DHCP reservation or
manage existing DHCP reservations.
Router
Settings:
DHCP Server
Settings:
DHCP
Reservations
List:
Number of
Dynamic
DHCP Clients:
DHCP
Reservation:
