36D-Link DIR-815 User Manual
Section 3 - Conguration

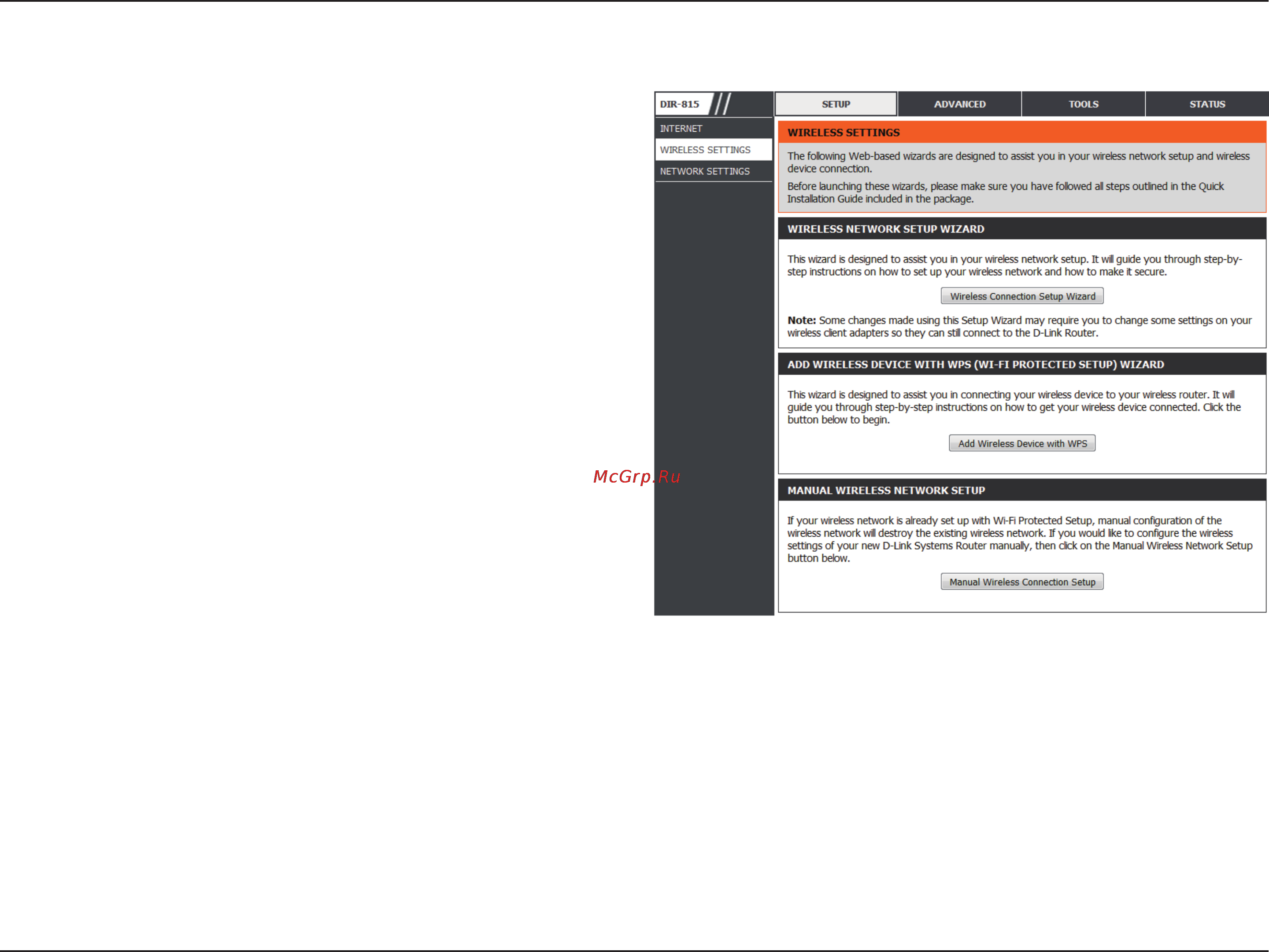

Wireless Settings
If you want to congure the wireless settings on your router
using the wizard, click Wireless Connection Setup Wizard and
refer to “Wireless Connection Setup Wizard” on page 87.
Click Add Wireless Device with WPS if you want to add a wireless
device using Wi-Fi Protected Setup (WPS) and refer to “Add
Wireless Device with WPS Wizard” on page 90.
If you want to manually congure the wireless settings on your
router click Manual Wireless Connection Setup and refer to
the next page.
