59D-Link DIR-815 User Manual
Section 3 - Conguration
IPv6
Use the drop-down menu to select the IPv6
Internet Connection mode.
My Internet
Connection is:

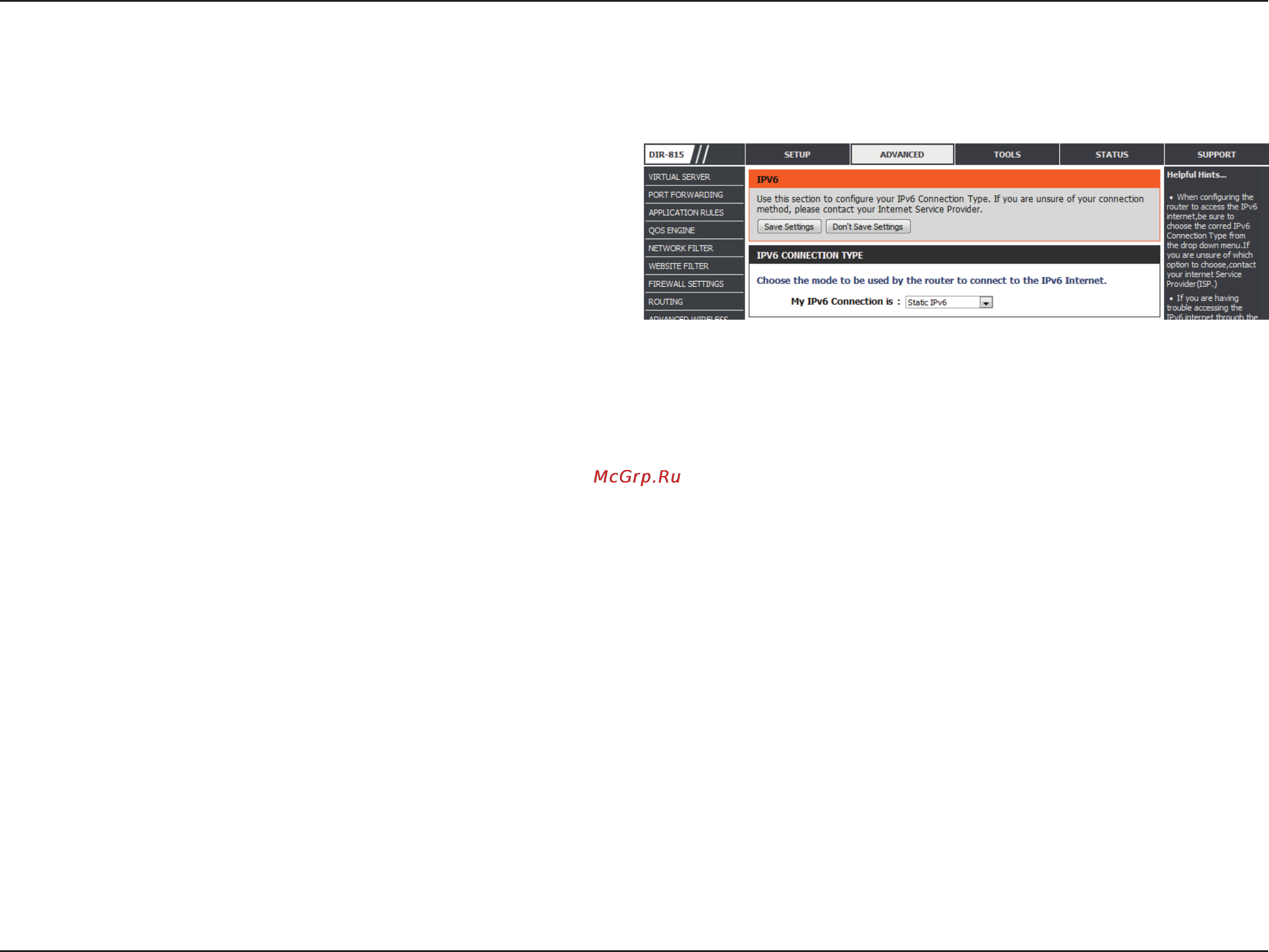

Use the IPv6 window to congure the mode that the Router will use to access an IPv6 Internet connection.
