30D-Link DIR-815 User Manual
Section 3 - Conguration
Select Static if your ISP assigned you the IP address, subnet
mask, gateway, and DNS server addresses. In most cases, select
Dynamic.
Enter the L2TP IP address supplied by your ISP (Static only).
Enter the Subnet Mask supplied by your ISP (Static only).
Enter the Gateway IP Address provided by your ISP.
Enter the Server IP provided by your ISP (optional).
Enter your L2TP username.
Enter your L2TP password and then retype the password in
the next box.
Use the radio buttons to specify the reconnect mode. The user
can specify a custom schedule or specify the On Demand, or
Manual option.
To specify a custom schedule, use the drop-down menu to
select one of the schedules that has been dened in the Tools>
Schedules window. To create a new schedule, click the New
Schedule button to open the Tools> Schedules window. Refer
to “Schedules” on page 78 for more information.
Address Mode:
L2TPIPAddress:
L2TPSubnet
Mask:

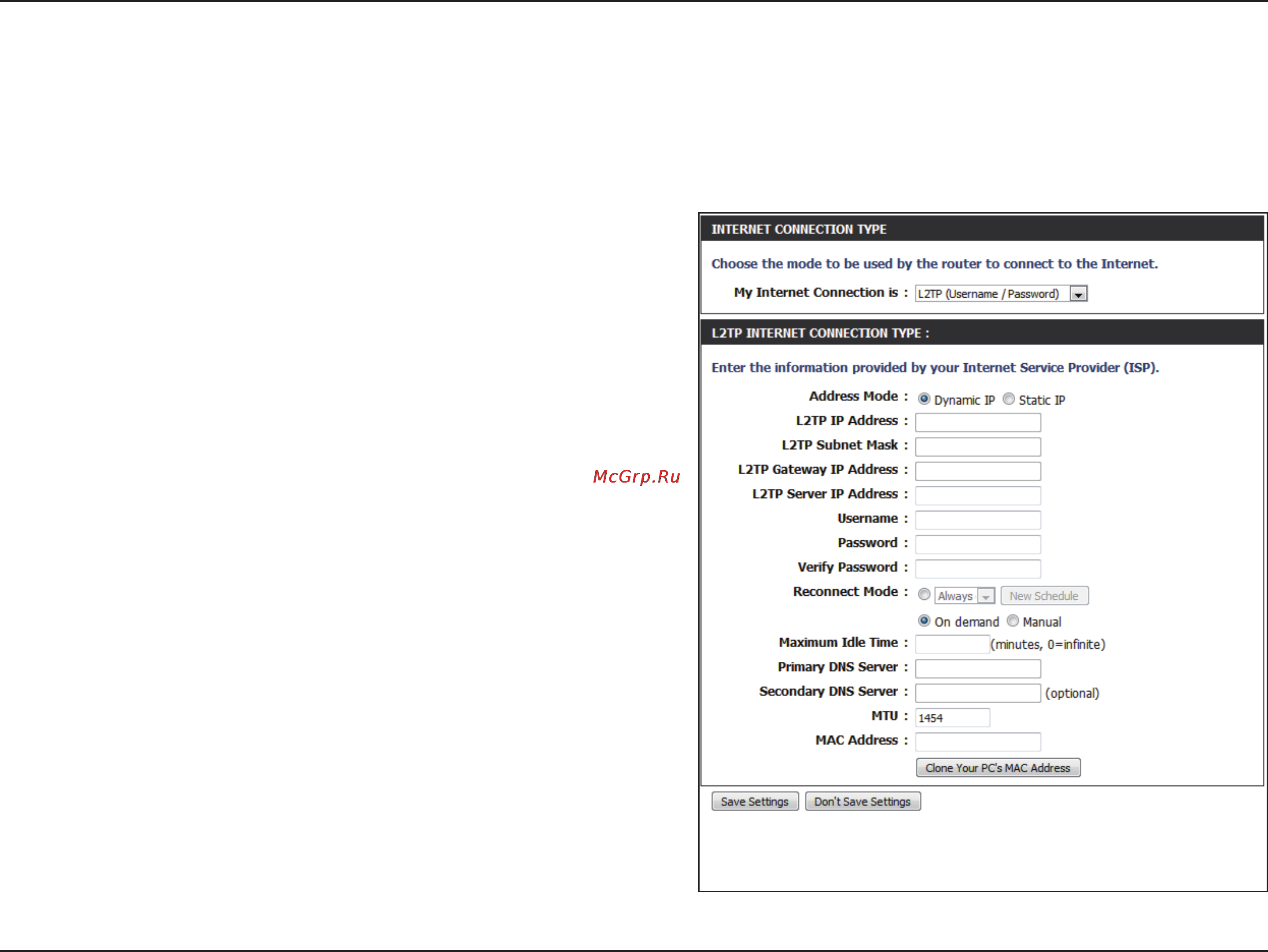

Manual Internet Connection Setup
L2TP
Choose L2TP (Layer 2 Tunneling Protocol) if your ISP uses a L2TP connection. Your ISP will provide you with a username and
password. This option is typically used for DSL services.
L2TPGatewayIP
Address:
L2TPServerIP
Address:
Username:
Password:
Reconnect
Mode:
