32D-Link DIR-815 User Manual
Section 3 - Conguration
Select Static if your ISP assigned you the IP address, subnet
mask, gateway, and DNS server addresses. In most cases,
select Dynamic.
Enter the IP address (Static PPTP only).
Enter the Primary and Secondary DNS Server Addresses
(Static PPTP only).
Enter the Gateway IP Address provided by your ISP.
Enter the Server IP provided by your ISP (optional).
Enter your PPTP username.
Enter your PPTP password and then retype the password
in the next box.
Use the radio buttons to specify the reconnect mode.
The user can specify a custom schedule or specify the On
Demand, or Manual option.
To specify a custom schedule, use the drop-down menu to
select one of the schedules that has been dened in the
Tools> Schedules window. To create a new schedule, click
the New Schedule button to open the Tools> Schedules
window. Refer to “Schedules” on page 78 for more information.
Address Mode:
PPTP IP Address:
PPTP Subnet
Mask:
PPTP Gateway:
PPTP Server IP:

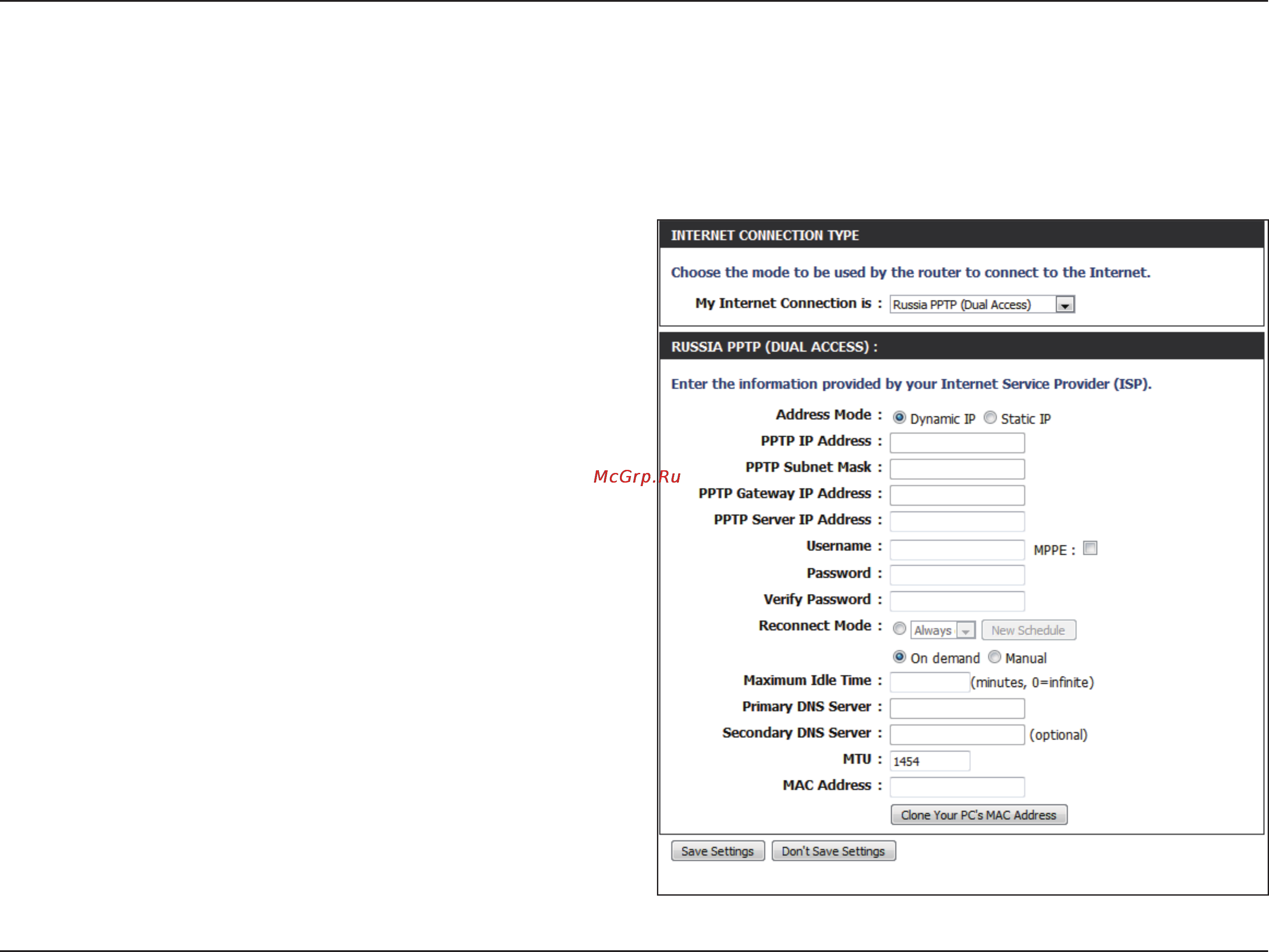

Manual Internet Connection Setup
Russia PPTP (Dual Access)
Username:
Password:
Reconnect
Mode:
Select PPTP (Point-to-Point Tunneling Protocol) from the drop-down menu if your ISP uses a PPTP connection. Your ISP will
provide you with a username and password. This option is typically used for DSL services.
