68D-Link DIR-815 User Manual
Section 3 - Conguration
IPv6
6to4-Stateful(DHCPv6)Autoconguration

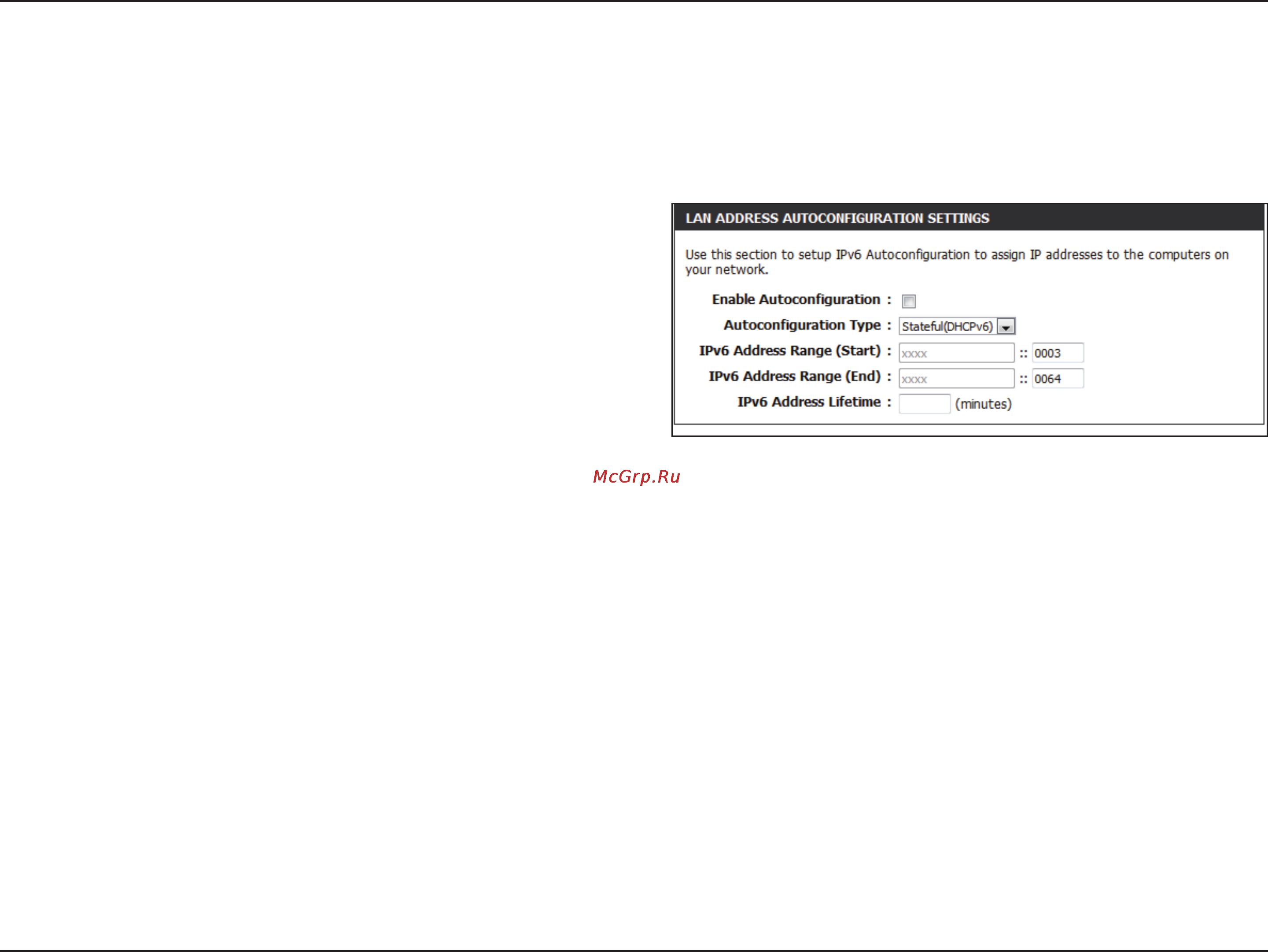

To congure the Router to use an IPv6 to IPv4 tunnel stateful autoconguration connection, congure the parameters in the
LAN Address Autoconguration Settings section as described below:
Check to enable the Autoconguration feature.
Select the Stateful(DHCPv6) option from the drop-down
menu.
Enter the start IPv6 Address for the DHCPv6 range for your
local computers.
Enter the end IPv6 Address for the DHCPv6 range for your
local computers.
Enter the IPv6 Address Lifetime (in minutes).
Enable
Autoconguration:
Autoconguration
Type:
IPv6AddressRange
Start:
IPv6AddressRange
End:
IPv6Address
Lifetime:
Click the Save Settings button to save any changes made.
