71D-Link DIR-815 User Manual
Section 3 - Conguration
Enter a new password for the Administrator Login Name.
The administrator can make changes to the settings.
Enables a challenge-response test to require users to type
letters or numbers from a distorted image displayed on
the screen to prevent online hackers and unauthorized
users from gaining access to your router’s network
settings.
Remote management allows the DIR-815 to be congured
from the Internet by a web browser. A username and
password is still required to access the Web-Management
interface. In general, only a member of your network can
browse the built-in web pages to perform Administrator
tasks. This feature enables you to perform Administrator
tasks from the remote (Internet) host.
Enter the port number that will be used to access the DIR-815.
Admin
Password:
Admin

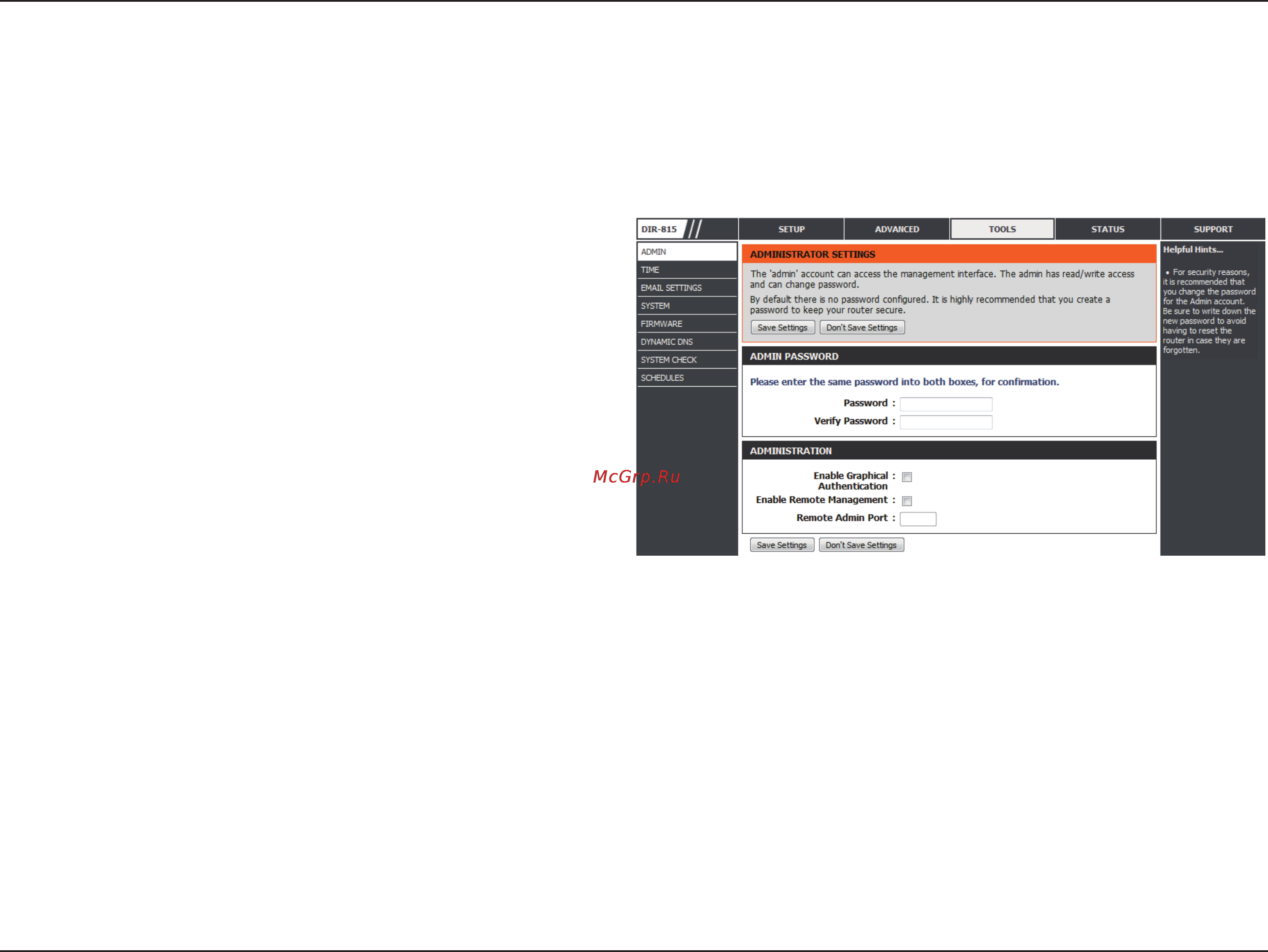

This page will allow you to change the Administrator password and congure the authentication settings. This window also
allows you to enable Remote Management, via the Internet.
Tools
Enable
Graphical
Authentication:
Enable Remote
Management:
Remote
Admin Port:
Click the Save Settings button to save any changes made.
