D-Link DIR-815 [92/123] Wireless connection setup wizard
![D-Link DIR-815 [92/123] Wireless connection setup wizard](/views2/1044559/page92/bg5c.png)
87D-Link DIR-815 User Manual
Section 4 - Security
Wireless Connection Setup Wizard

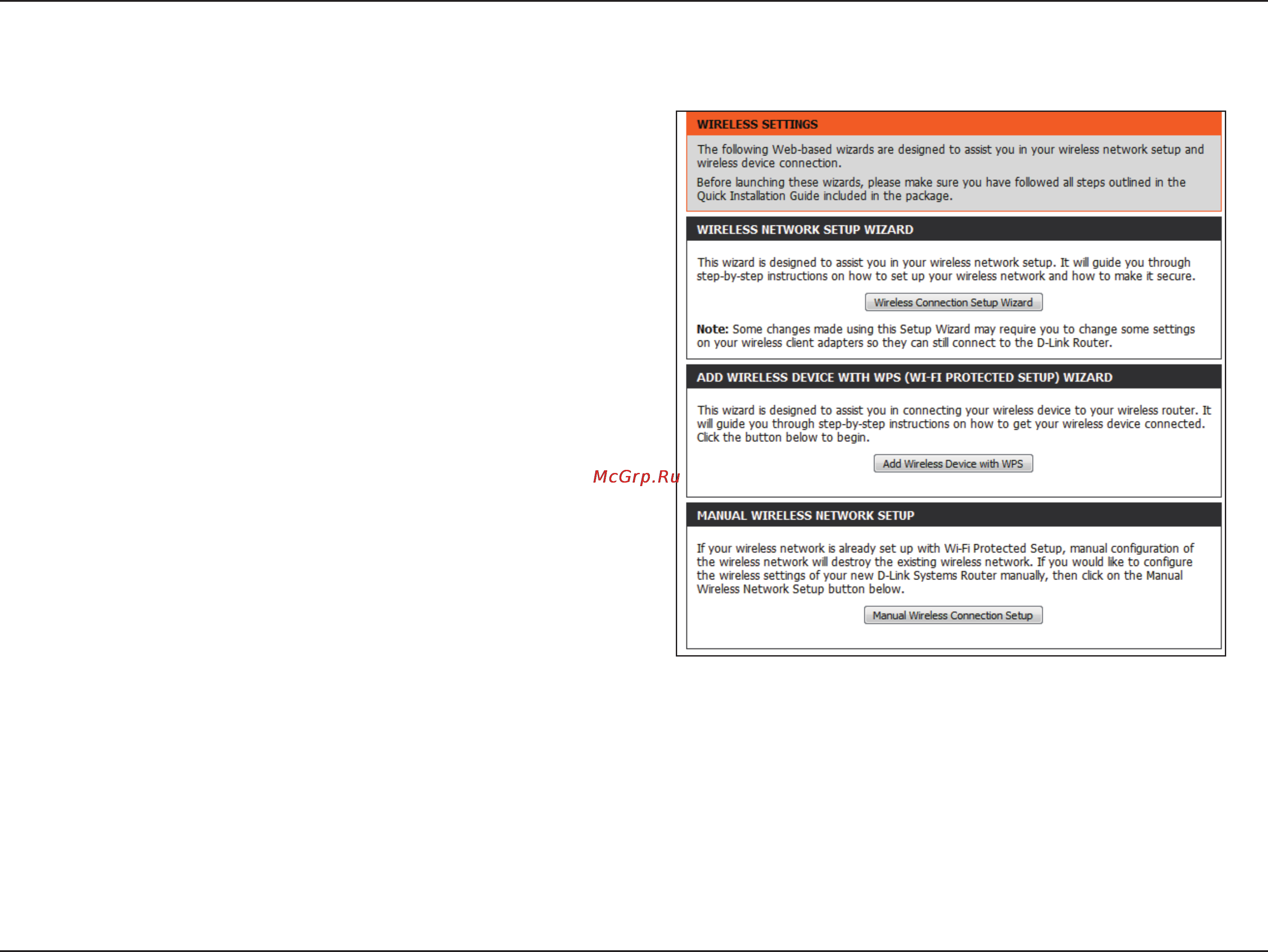

To run the Wireless Connection Setup Wizard, click the Wireless
Connection Setup Wizard button in the Setup>Wireless
Settings window.
