69D-Link DIR-815 User Manual
Section 3 - Conguration

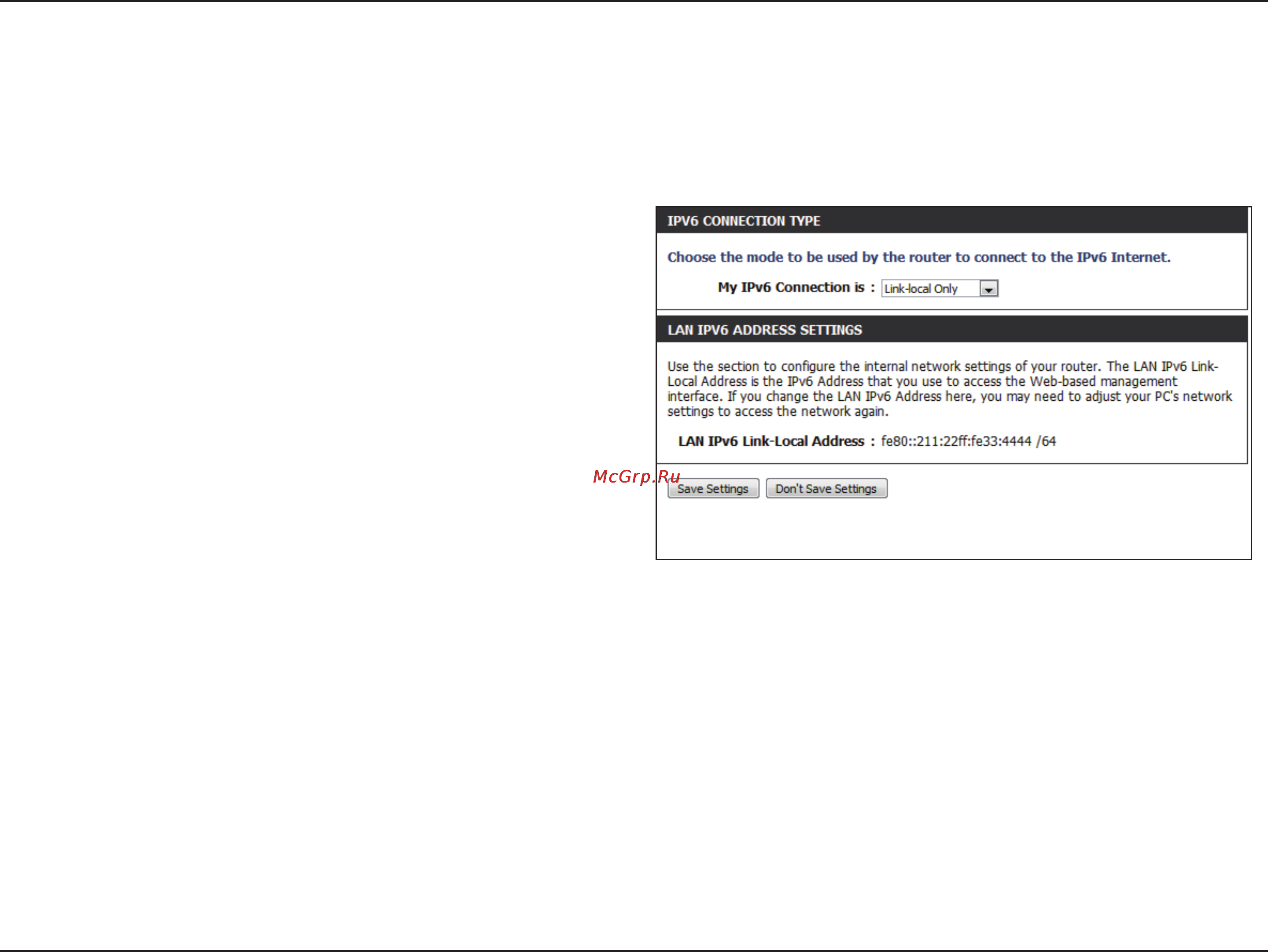

Displays the LAN IPv6 Link-Local address of the router.
LANIPv6
Address
Settings:
IPv6
Link-local Only
Select Link-local Only from the MyIPv6Connectionis drop-down menu if your Router will use the IPv6 link local method
to connect to the Internet.
Click the Save Settings button to save any changes made.
