60D-Link DIR-815 User Manual
Section 3 - Conguration
IPv6

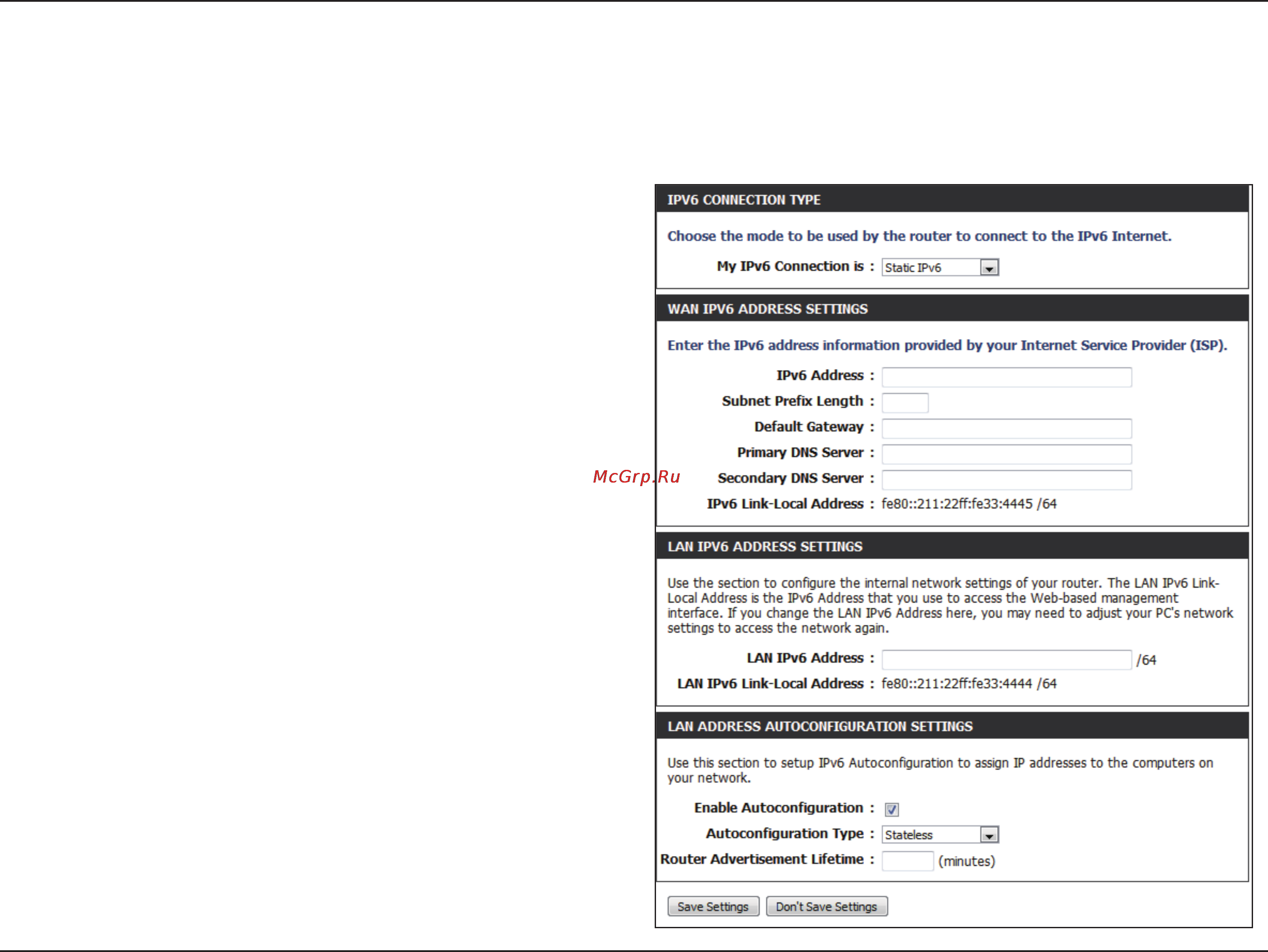

StaticIPv6
Select StaticIPv6 from the MyIPv6Connectionis drop-down menu if your Router will use a static IPv6 address to connect
to the Internet.
Enter the address settings supplied by your Internet
provider (ISP).
Enter the LAN (local) IPv6 address for the router.
Displays the Router’s LAN Link-Local Address.
Use this section to congure the IPv6 autoconguration
settings.
WANIPv6Address
Settings:
LANIPv6Address:
LANIPv6
Link-Local Address:
LAN Address
Autoconguration
Settings:
Click the Save Settings button to save any changes made.
