17D-Link DIR-815 User Manual
Section 3 - Conguration

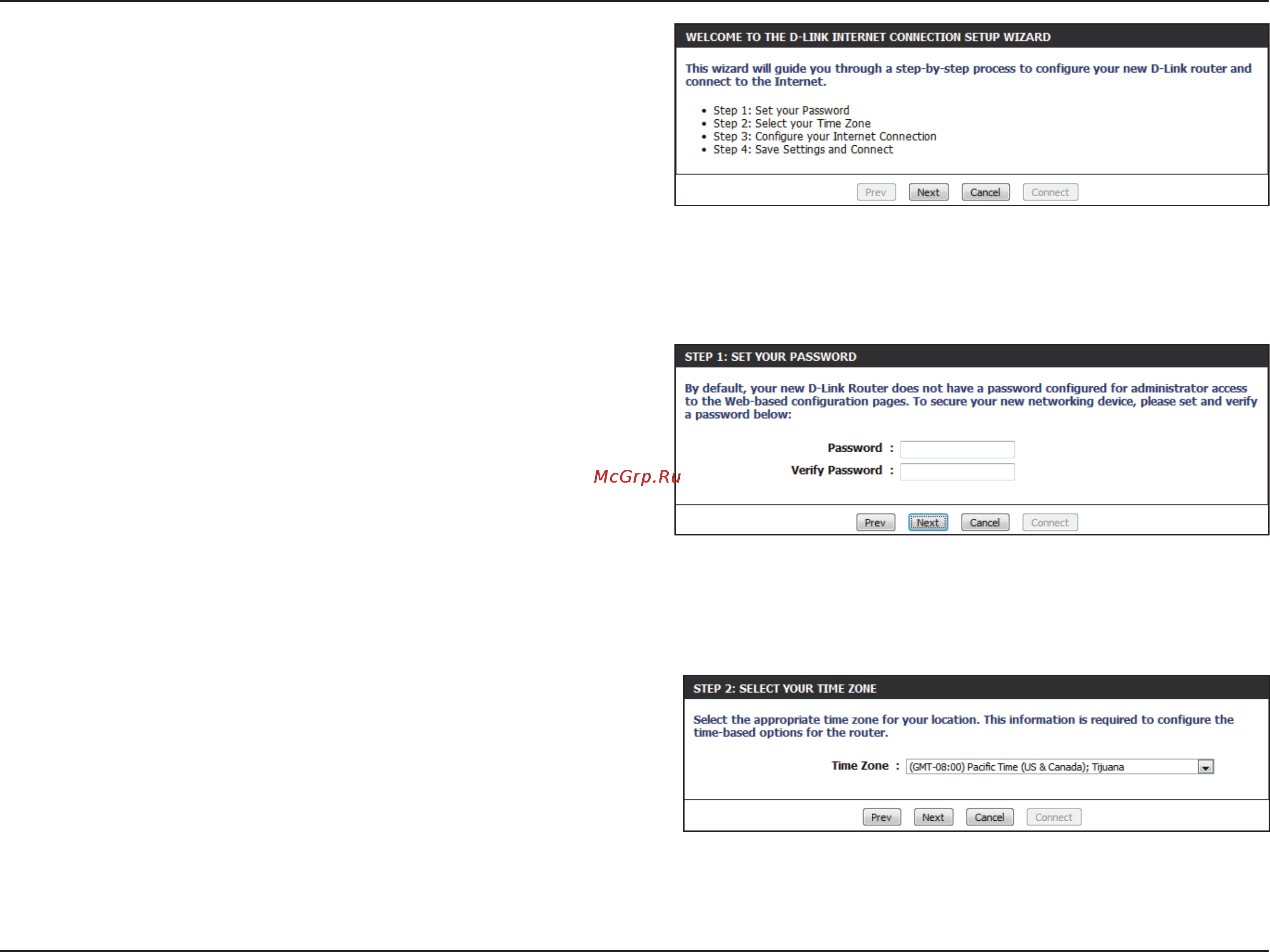

Create a new password and then click Next to continue.
The following window appears, summarizing the steps required
to complete the Internet Connection Setup Wizard:
Click Next to continue.
Select your time zone from the drop-down menu and then click
Next to continue.
