89D-Link DIR-815 User Manual
Section 4 - Security

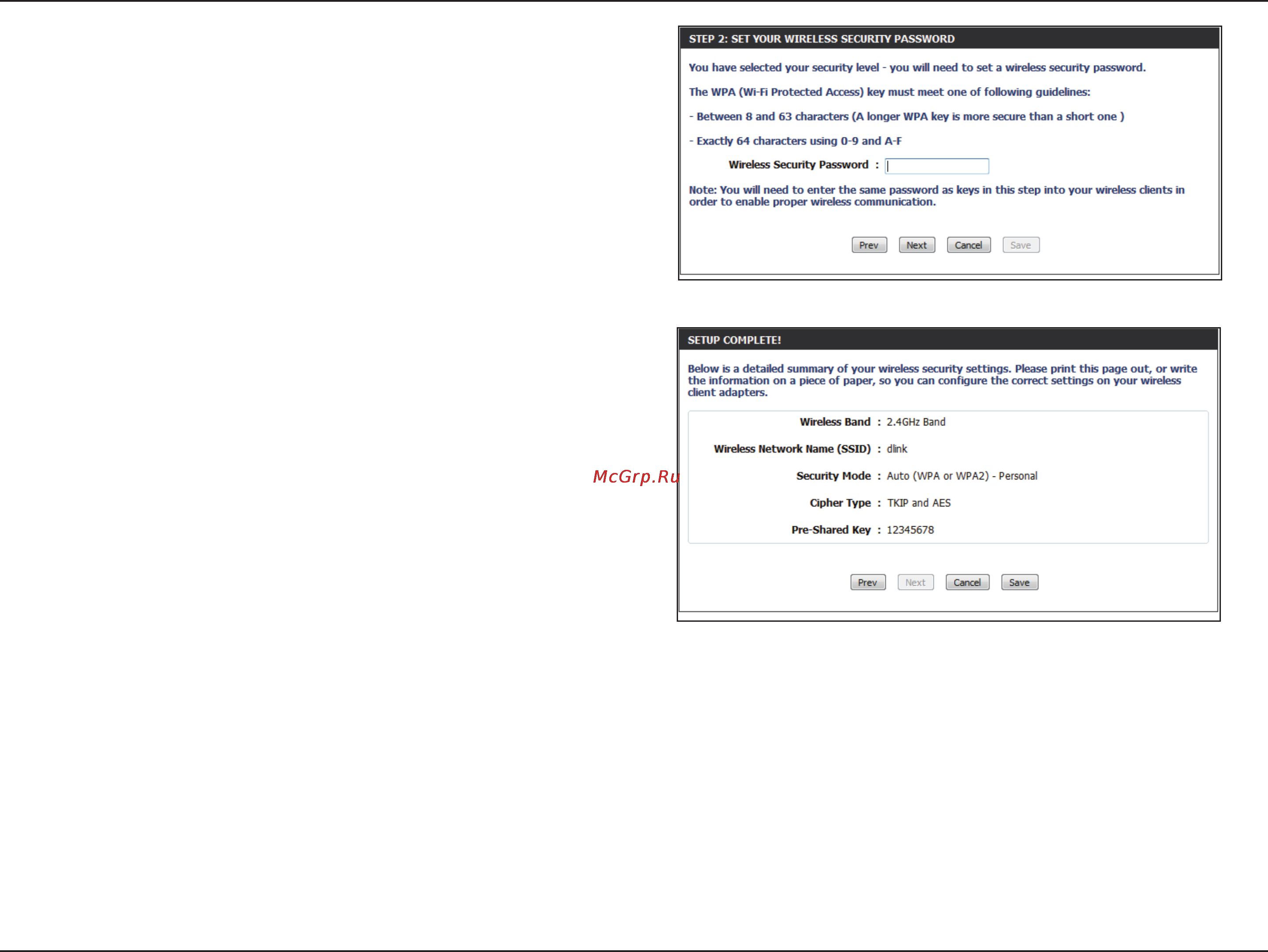

If you selected Manually, the following screen will appear.
Enter the Wireless Security Password you would like to use for your
wireless network and click Nextto proceed to the next window.
The summary window will display your settings. Write down the
security key and enter this on your wireless clients. Click Save
to save your settings.
