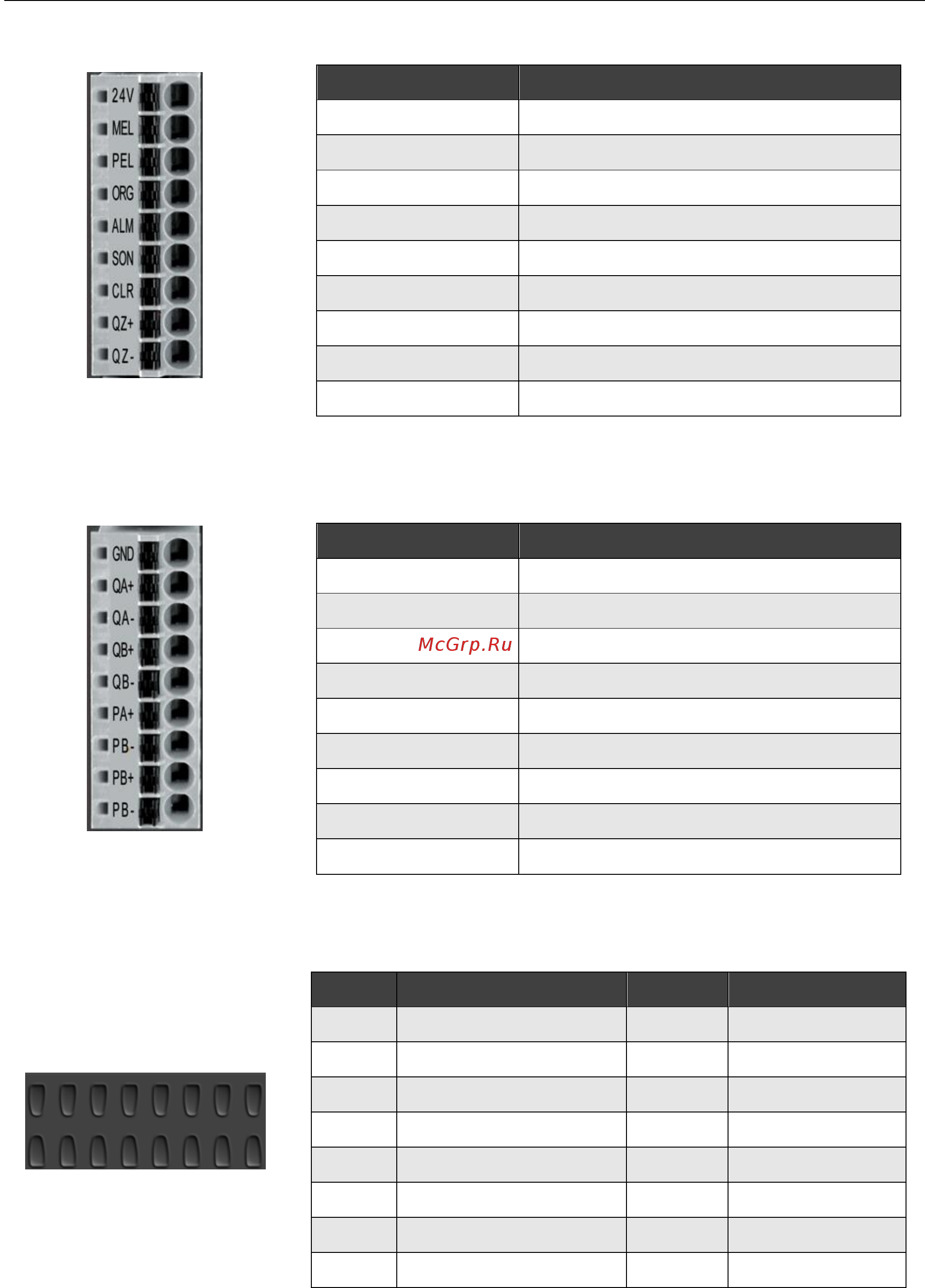

Chapter 3 Product Description R1-EC 5621 User Guide
3-2 October, 2014
Figure 3.2 Pin Definition of
Part B
Label
Description
24V
24 V Input
MEL
Negative Limit Signal Input
PEL
Positive Limit Signal Input
ORG
Home Limit Signal Input
ALM
Alarm Signal Input
SON
SVON Signal Output
CLR
Clear Signal Output
QZ+
Encoder Z Phase Signal Input (+)
QZ-
Encoder Z Phase Signal Output (-)
Figure 3.3 Pin Definition of
Part A
Label
Description
GND
24 V Power Ground
QA+
Encoder A Phase Signal Input (+)
QA-
Encoder A Phase Signal Input (-)
B+
Encoder B Phase Signal Input (+)
QB-
Encoder B Phase Signal Input (-)
PA+
Output Pulse Signal (+)
PA-
Output Pulse Signal (-)
PB+
Direction Signal (+)
PB-
Direction Signal (-)
Figure 3.4 Indicator
Definition
Label
Description
Label
Description
1
MEL
9
QA+
2
PEL
10
QA-
3
ORG
11
QB+
4
ALM
12
QB-
5
SON
13
PA+
6
CLR
14
PA-
7
QZ+
15
PB+
8
QZ-
16
PB-
○
8
○
7
○
6
○
5
○
4
○
3
○
2
○
1
○
16
○
15
○
14
○
13
○
12
○
11
○
10
○
9
