R1-EC5621 User Guide Chapter 5 CiA402 Drive Profile

October, 2014 5-9

5.3 Touch Probe Function

The feedback position can be latched with the following trigger events：

• ORG signal trigger

• QZ signal trigger

Supporting one set of Touch Probe Function.

• Latch Control: 60B8h (Bit 0 to 7)

• Latch Status: 60B9h (Bit 0 to 7)

• Latch position is always stored to the Touch Probe1 Position Value (60BAh).

• Trigger Signal: ORG signal / QZ signal

Related Objects

Index

Sub

Index

Name

Access

PDO

Mapping

Units

Type

60B8h

Touch probe function

UINT

60B9h

Touch probe status

UINT

60BAh

Touch probe 1 position value

DINT

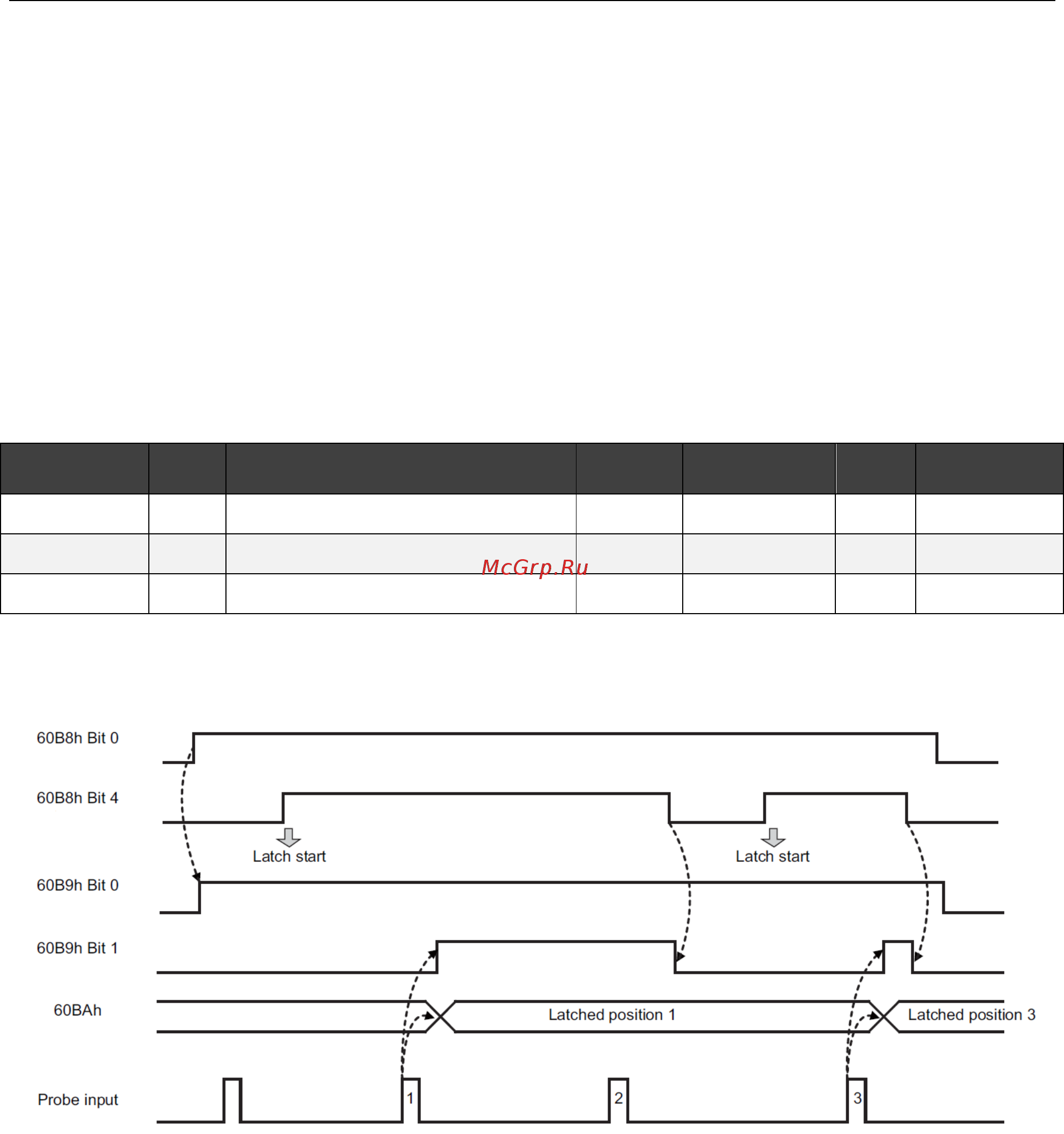

The figure below shows the operation of Touch probe function.

• Single Trigger Mode (60B8h bit1 = 0)

Figure 5.12
