Delta Electronics R1-EC5621 [15/49] Chapter 4 wiring

October, 2014 4-1

Chapter 4 Wiring

4.1 Wiring Example of Input Point

Wiring of Input Point (MEL, PEL, ORG, ALM)

Connection Type: SINK

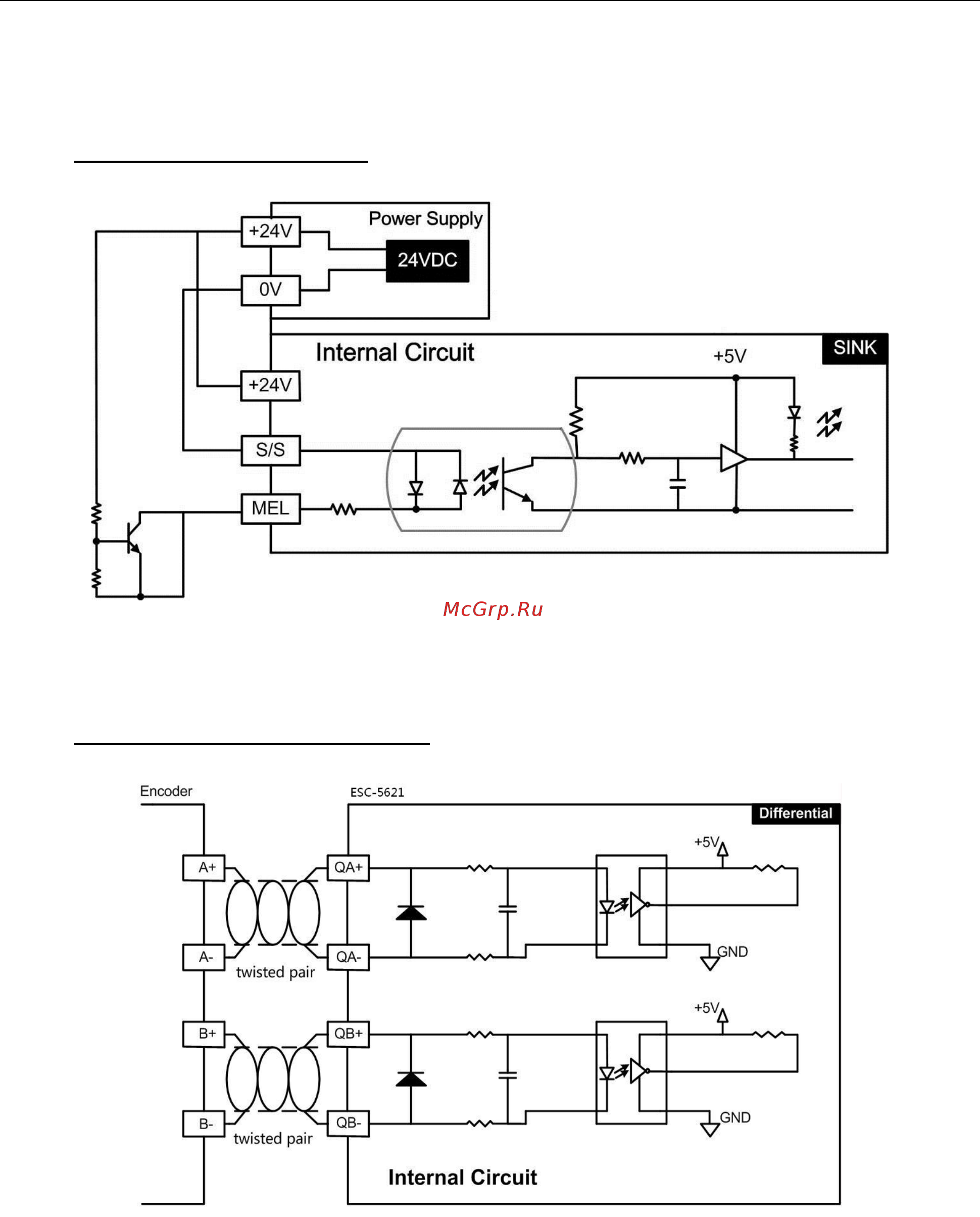

Figure 4.1 Wiring Example of Input Point (SINK)

Wiring of Input Point (QA+, QA-, QB+, QB-, QZ+, QZ-)

Connection Type: Differential

Figure 4.2 Wiring Example (Differential Type)
