Delta Electronics R1-EC5621 [16/49] Wiring example of output point

Chapter 4 Wiring R1-EC5621 User Guide

4-2 October, 2014

4.2 Wiring Example of Output Point

Wiring of Output Point (SVON, RALM)

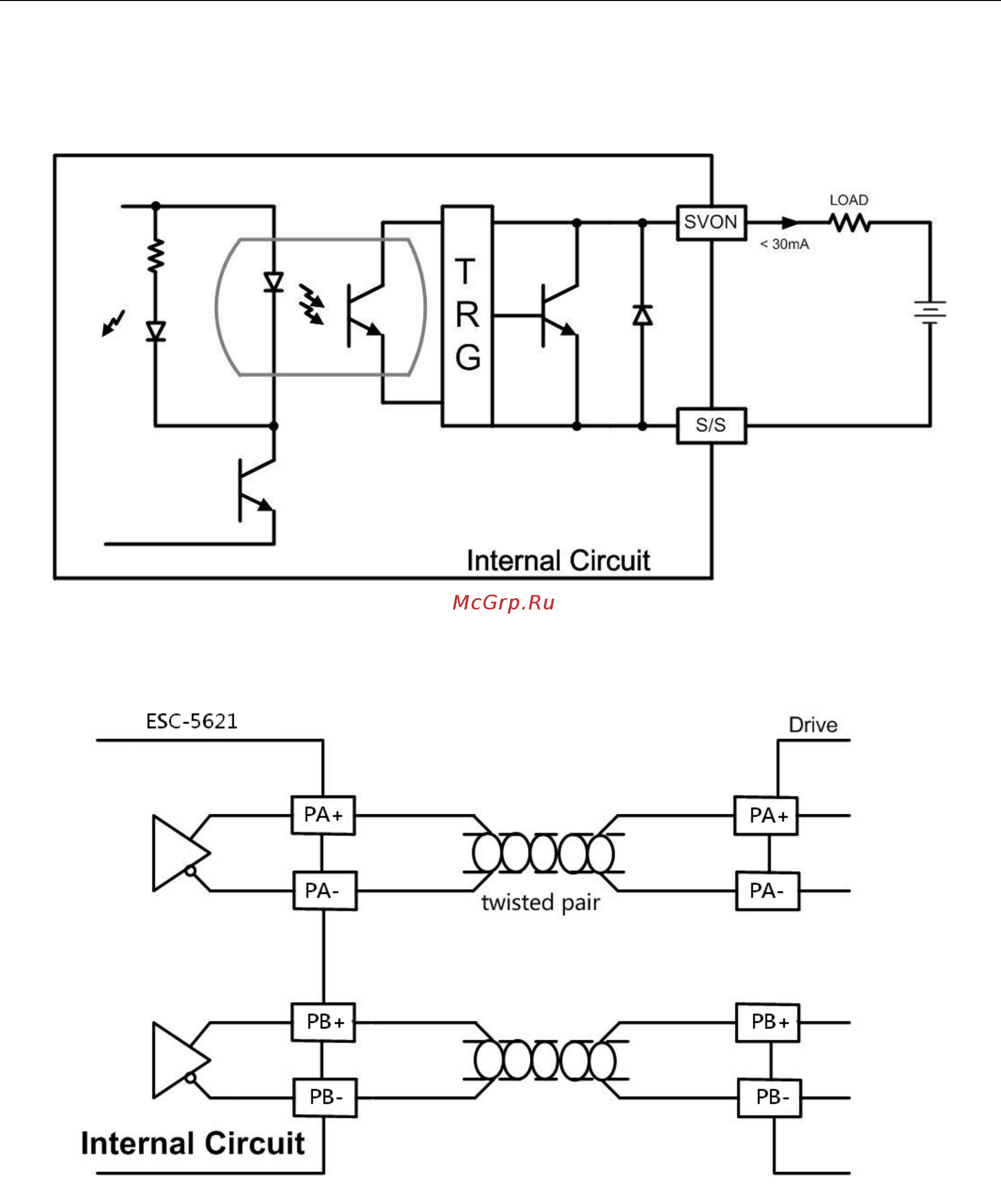

Figure 4.3 Wiring Example of Output Point

Wiring of Output Point (PA+, PA-, PB+, PB-)

Figure 4.4 Wiring Example of Output Point
