Chapter 5 CiA402 Drive Profile R1-EC5621 User Guide
5-2 October, 2014
5.2 Position Control Mode
5.2.1 Profile Position Mode
The function of Profile Position mode is to specify the velocity and acceleration,
allowing the motor to reach the target position from the start position.

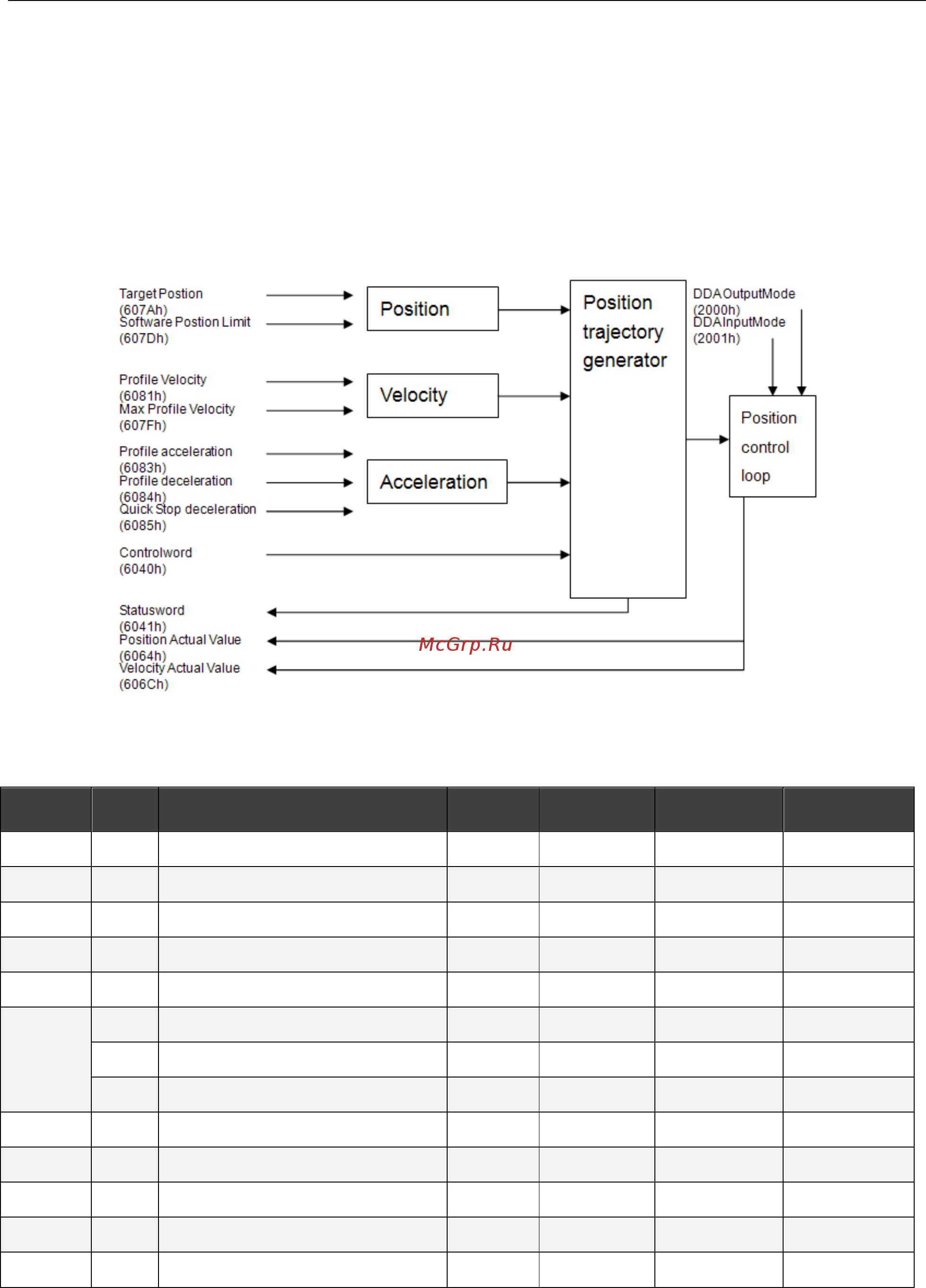

Below is the block diagram of Profile Position mode.
Figure 5.1 Block Diagram of Profile Position Mode
Related Objects
Index
Sub
Name
Access
PDO
Mapping
Units
Type
6040h
-
Controlword
RW
Yes
-
UINT
6041h
-
Statusword
RO
Yes
-
UINT
6064h
-
Position actual value
RO
Yes
Pos Units
DINT
606Ch
-
Velocity actual value
RO
No
Vel Units
DINT
607Ah
-
Target position
RW
Yes
Pos Units
DINT
607Dh
-
Software position limit
-
-
-
-
1
Min. position limit
RW
No
Pos Units
DINT
2
Max. position limit
RW
No
Pos Units
DINT
607Fh
-
Max. profile velocity
RW
No
Vel Units
UDINT
6081h
-
Profile velocity
RW
No
Vel Units
UDINT
6083h
-
Profile acceleration
RW
No
Acc Units
UDINT
6084h
-
Profile deceleration
RW
No
Acc Units
UDINT
6085h
-
Quick stop deceleration
RW
No
Acc Units
UDINT
