Fluke 1760 [101/110] W warning
![Fluke 1760 [101/110] W warning](/views2/1005066/page101/bg65.png)
Options and Accessories
Accessories 6
6-23
EMC Standards
EN 61326 –1: 1997/A1: 1998.
W Warning
Wear high voltage protection gloves, switch off conductors and
ensure that the potential is zero.
Utilize the Flexi current sensor only at 600 V rms or dc to
ground and frequencies below 1 kHz.
Accuracy (Typical, for 50/60 Hz)

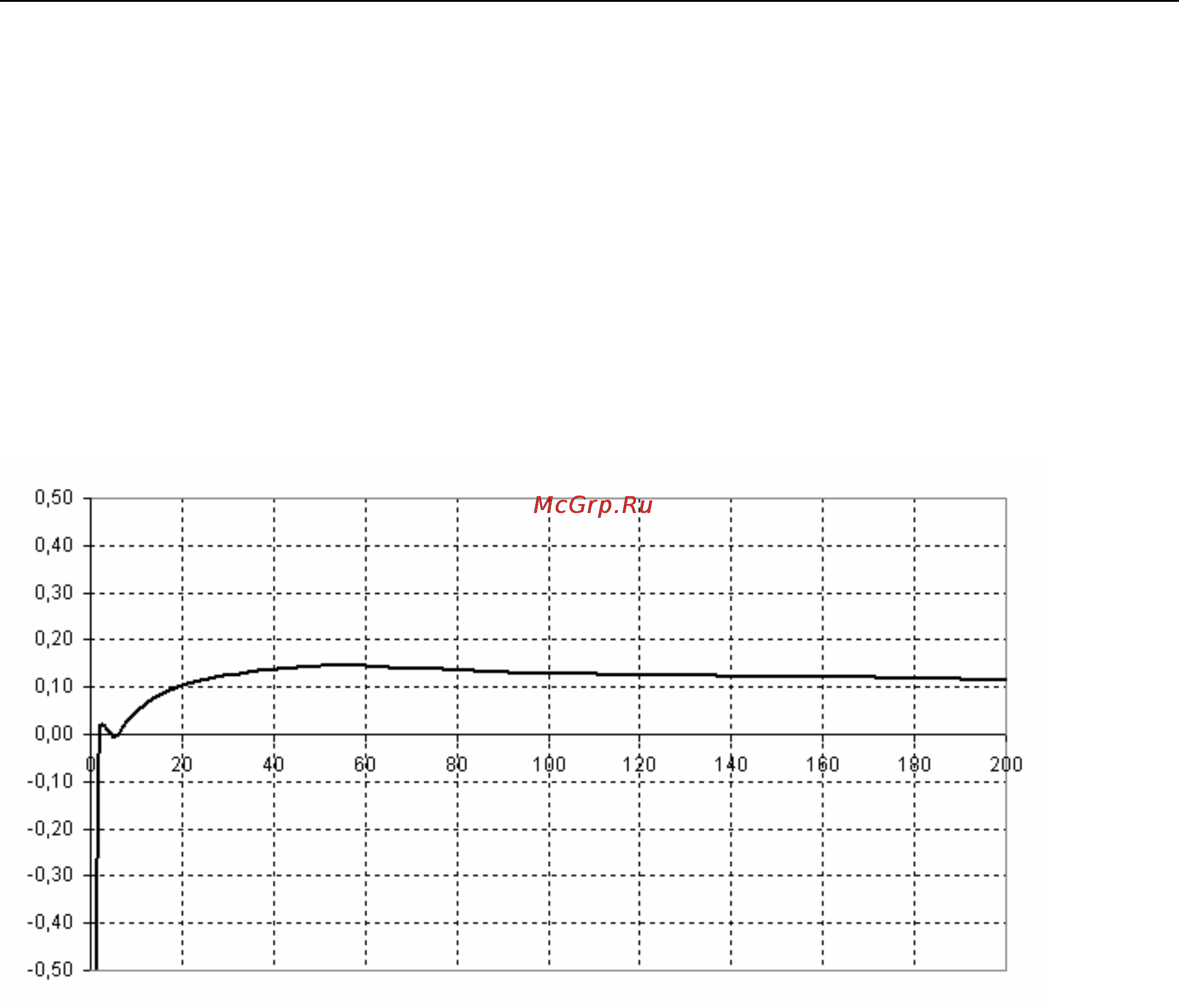

Linearity, error in % of measured value, primary current in A:
