Introduction
Design and Functions 1
1-11

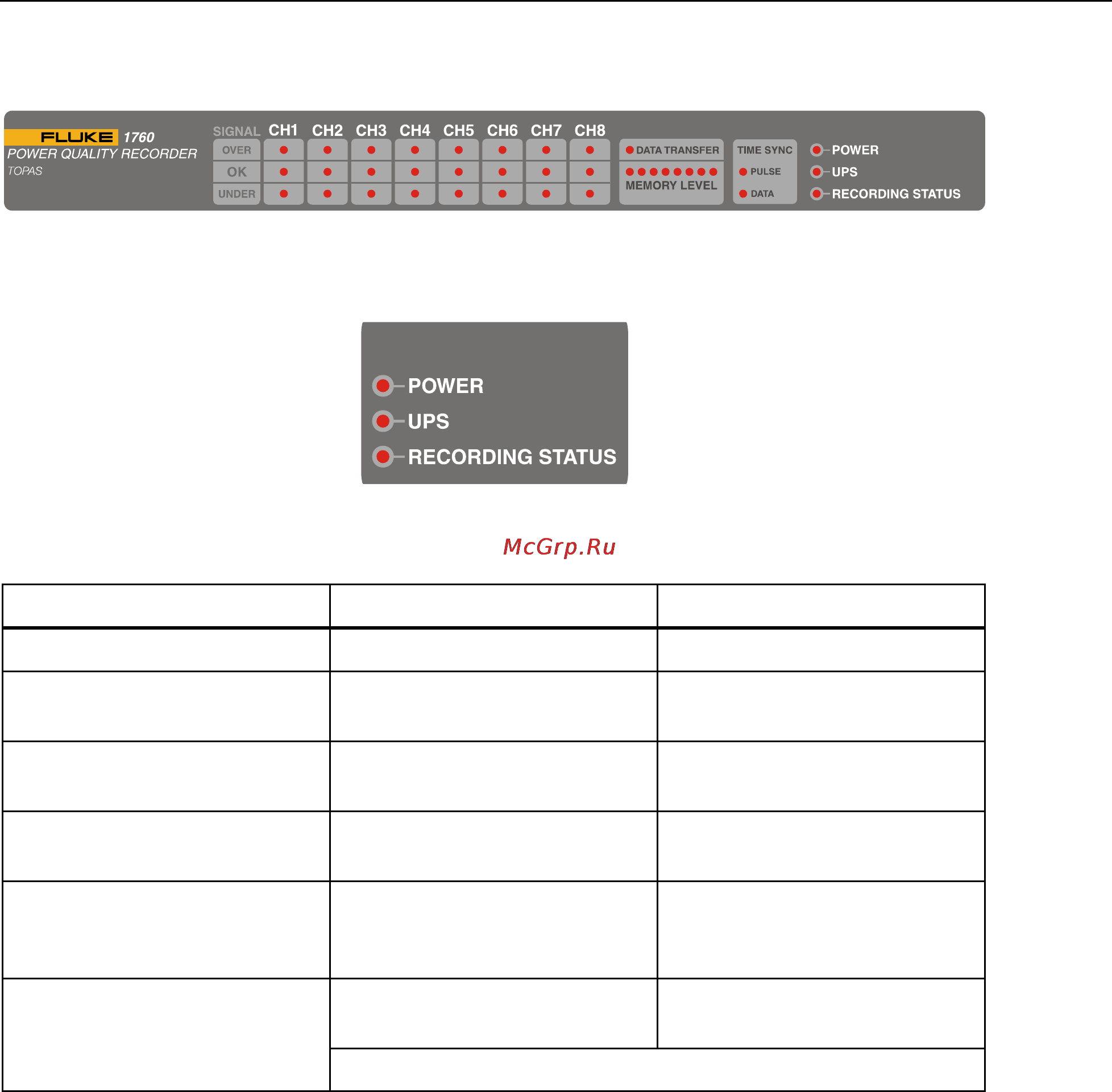

C LED Indicators
led-schild gesamt.wmf
LEDs in the field Power:
led-power.wmf
Overview
Condition LED POWER LED UPS
Instrument boot Green OFF
Mains is on, battery is not charged
Green
Green, yellow, or red according to
capacity
Mains is on, battery is charged
Green
Slowly Flashing Green, yellow, or
red according to capacity
Battery operation
OFF
Green, yellow, or red according to
capacity
Battery discharge mode
OFF
Flashing Green, yellow, or red,
Memory LEDs show “decreasing”
yellow flashlight
Green, flashing
Flashing Green, yellow, or red
according to capacity
Instrument shutdown
Flashing alternately
