F Serial port COM1 (RS232)

Serial port for connection of the device to the serial port of a PC.

The default settings are 57.600 Baud, 8 data bits, 1 stop bit, no parity.

com_stecker.wmf

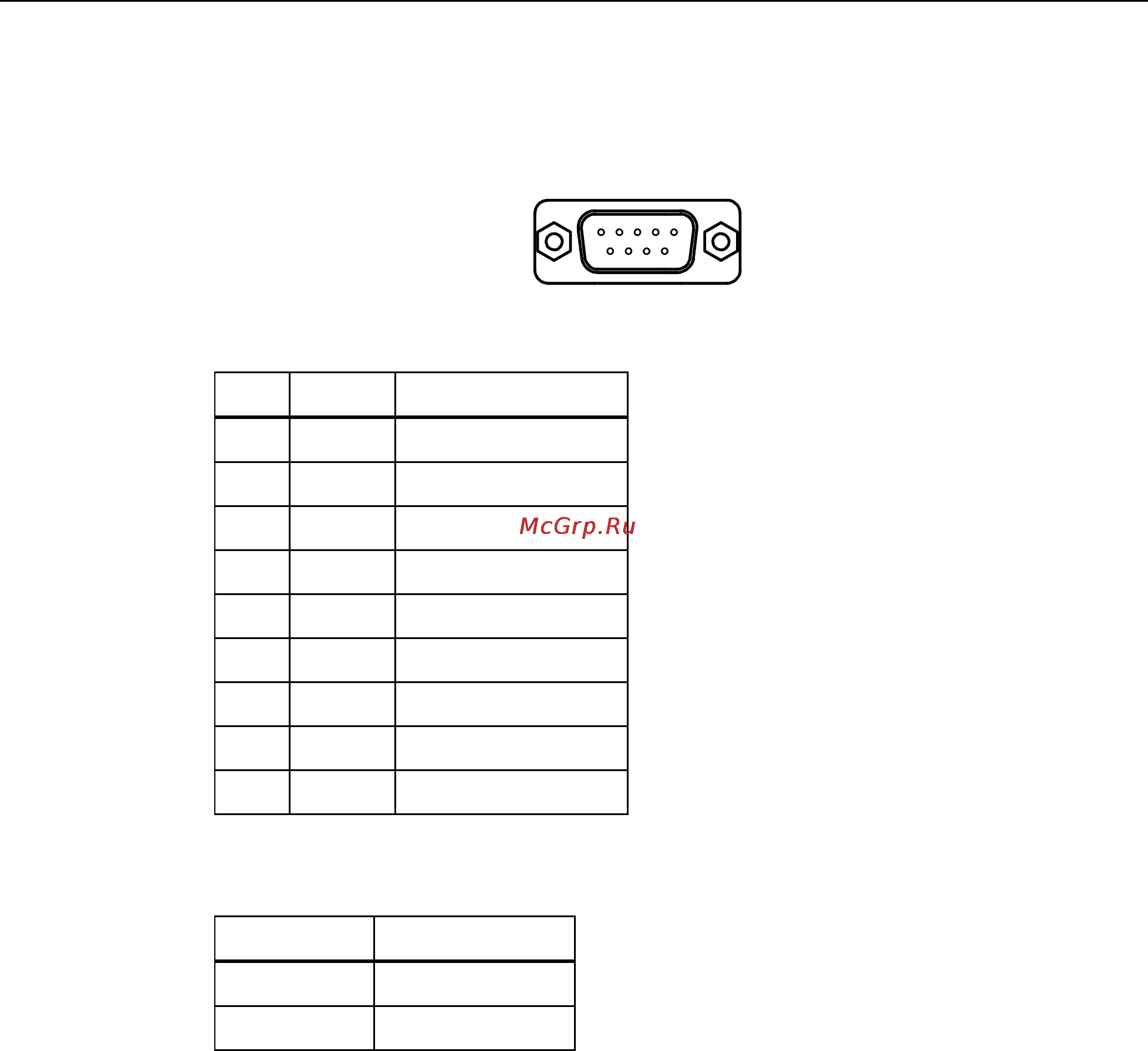

Pin assignment:

Pin Signal Description

1 DCD Data Carrier Detect

2 RxD Receive Data

3 TxD Transmit Data

4 DTR Data Terminal Ready

5 GND Ground

6 DSR Data Set Ready

7 RTS Request To Send

8 CTS Clear To Send

9 RI Ring Indicator

G Feature connector

Specification of outputs / inputs:

Condition Voltage level

Low (inactive) 0 - 0.8 V

High (active) 2.5 - 5 V

Maximum load current: 5 mA.
