1760
Users Manual
6-16

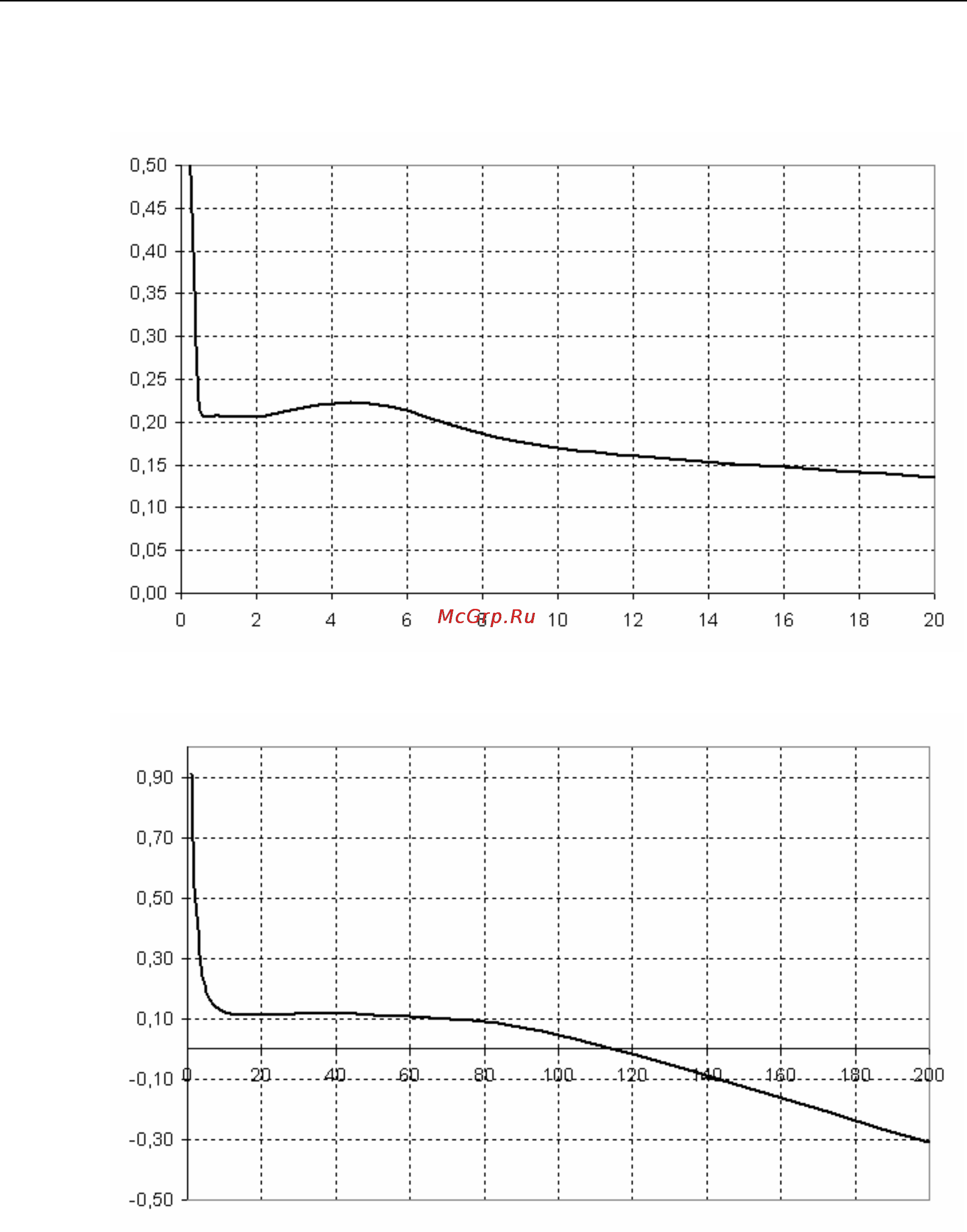

Accuracy (Typical, for 50/60 Hz)
Linearity, error in % of measured value, primary current in A:
