1760
Users Manual
1-4
CAT Identification

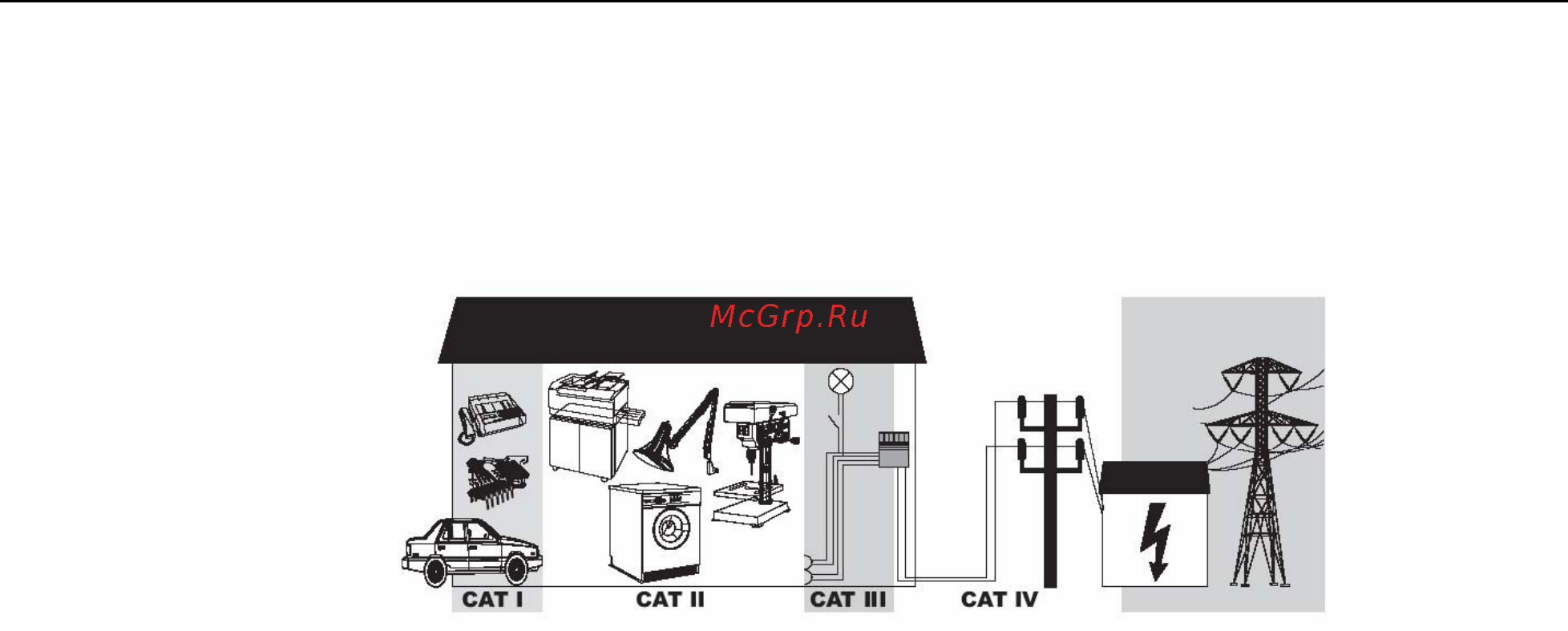

Figure 1-1 shows an example to identify the locations of different measurement
categories (CAT).
Figure 1-1. CAT
Safety Instructions
The design and manufacture of the device conform to the latest state of technology and
the safety standards laid down in IEC 61010 1/2
nd
edition. If used improperly, there is a
risk of injury to persons and damage of property.
Please read this section carefully. It will familiarize you with important safety
instructions for handling your 1760 PQ Analyzer. In this manual a
Warning identifies
conditions and actions that pose hazard(s) to the user. A Caution identifies conditions
and actions that may damage the Recorder.
Note
The 1760 PQ Analyzer is referred to as ‘Recorder’ through out the manual.
WX Warnings
To avoid electric shock or personal injury:
The Power Quality Recorder may only be used and handled by
qualified personnel.
Maintenance work must be done only by qualified service
personnel.
Use only specified current probes. If you use flexible current
probes, wear suitable protective gloves or work on de-
energized conductors.
Protect the Recorder against wetness and humidity.
Do not hold the Current Clamp anywhere beyond the tactile
barrier.
To prevent electrical shock, always connect current probe test
leads to the Recorder before connecting to the load.
To avoid electrical shock, do not connect the voltage
measuring or power supply input to systems with higher
voltages to ground (earth) than is marked on the Recorder.
