1760
Users Manual
2-6

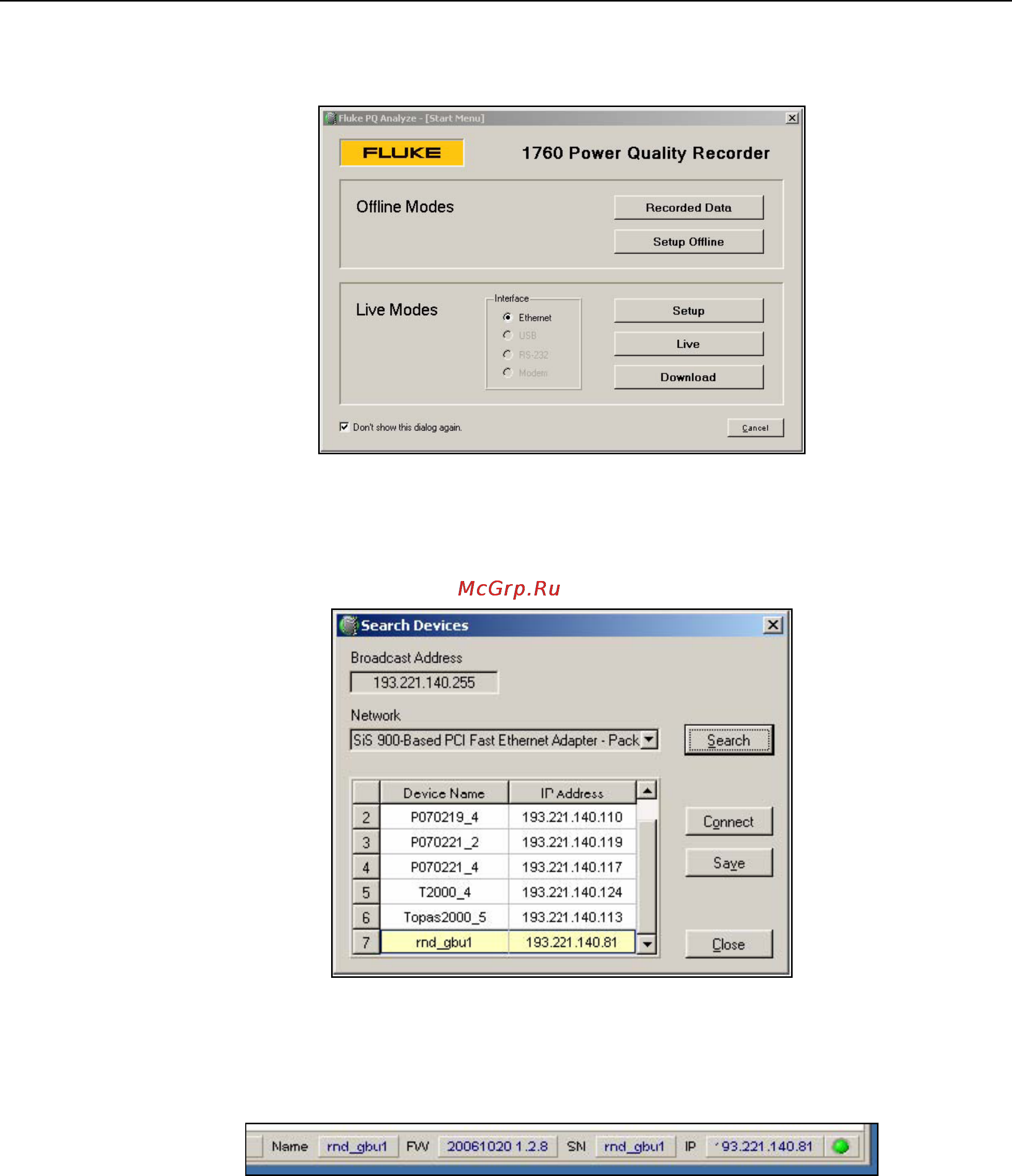

In the “Live Modes” section press “Setup”.
In the “Search Devices” dialog press “Search”.
Select your instrument in the list and press “Connect”.
After successful connection, you see a green light in the lower right corner next to status
information about the instrument.
