Fluke 1760 [34/110] Installation
![Fluke 1760 [34/110] Installation](/views2/1005066/page34/bg22.png)
1760
Users Manual
2-4

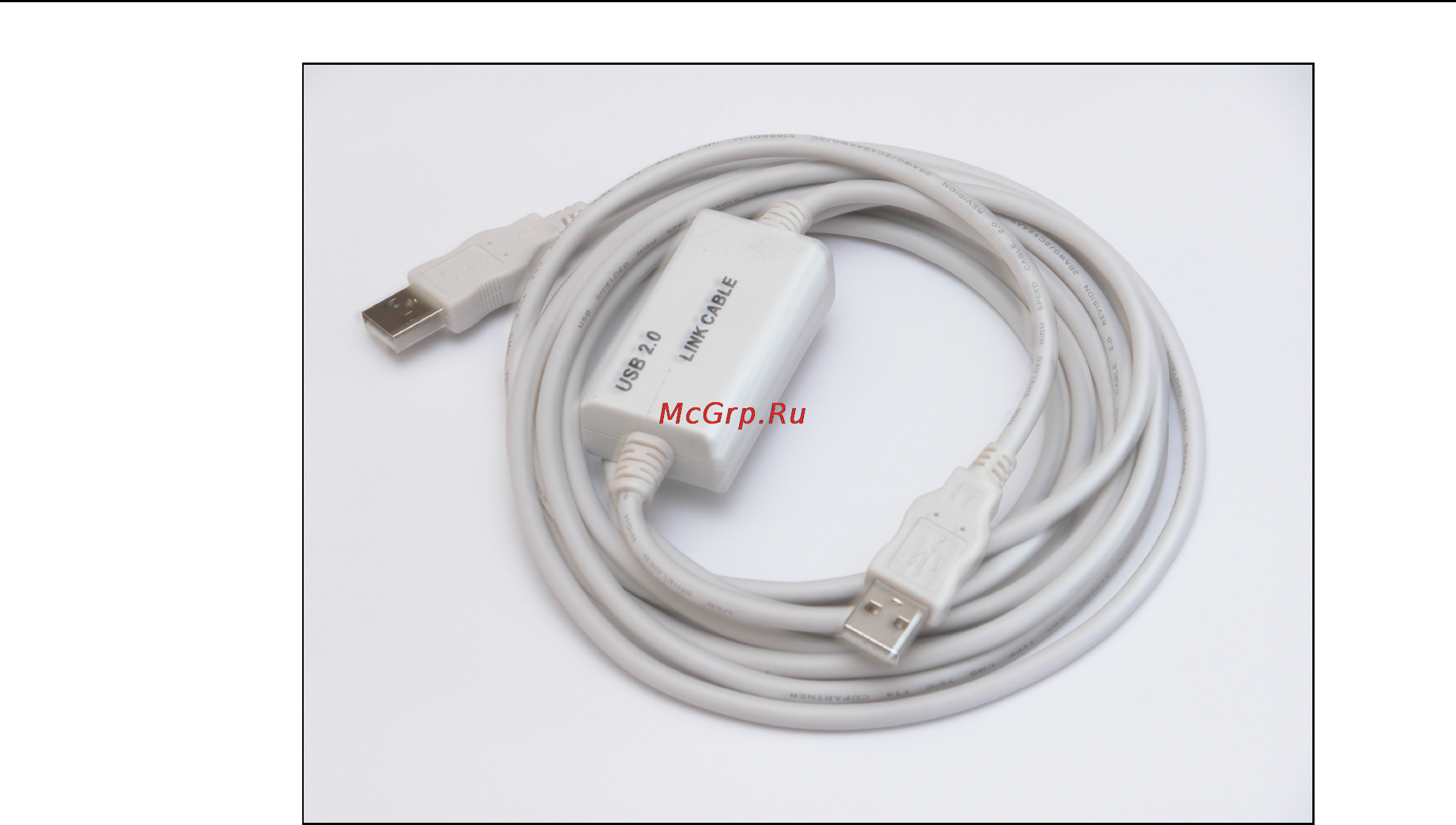

Figure 2-2. USB Cable
Setup
Installation
Follow the safety instructions regarding the ambient conditions and location of the
installation.
W X Warning
First connect the device with the mains cable and compatible
adapter to the power supply network. Observe the
specifications on the device type plate.
The device is connected to mains power, and a number of
internal components are live with dangerous voltage levels. To
remain safe during the operation, the device must be equipped
with a low-resistance connection to the earth. Therefore, check
the mains socket and its wiring.
Connect the supply cable of the device only to the sections
CAT I, II or III of the supply system. The voltage to earth may
not exceed 300 V.
Switching the Device On
Switch on the power supply to the device (lift switching knob B slightly and move to
position ‘I’). The LED POWER is lit. After approx. 40 seconds of booting, the device is
ready for the operation.
Switching the Device Off
Lift switching knob B slightly and move to position ‘0’. The LED POWER goes off
after closing all the internal data files.
