Options and Accessories
Accessories 6
6-25
Flexi Current Sensor 3000 A/6000 A
This current probe has been designed for non intrusive, accurate ac current
measurements. Using the latest technologies (internal memory for calibration data)
provides current measurements between 30 A and 6000 A. The measurement range can
be selected in the PQ Analyze software: IAC3000 or IAC6000.
Electrical Characteristics
Nominal current In: 3000 A, 6000 A AC rms
Measuring ranges: 30 A … 3000 A or 60 A … 6000 A AC
Peak current: 10 kA, 19 kA
Max. non destructive current: up to 19 kA rms
Intrinsic error: < ±2 % of mv
Linearity (10 % - 100 % of In): ±0.2 % of In
Conductor position influence: < ±2 % of m.v, distance to measuring head
>30 mm
Error due to adjacent conductor: ≤ ±2 A (Iext = 500 A, distance to head
>200 mm)

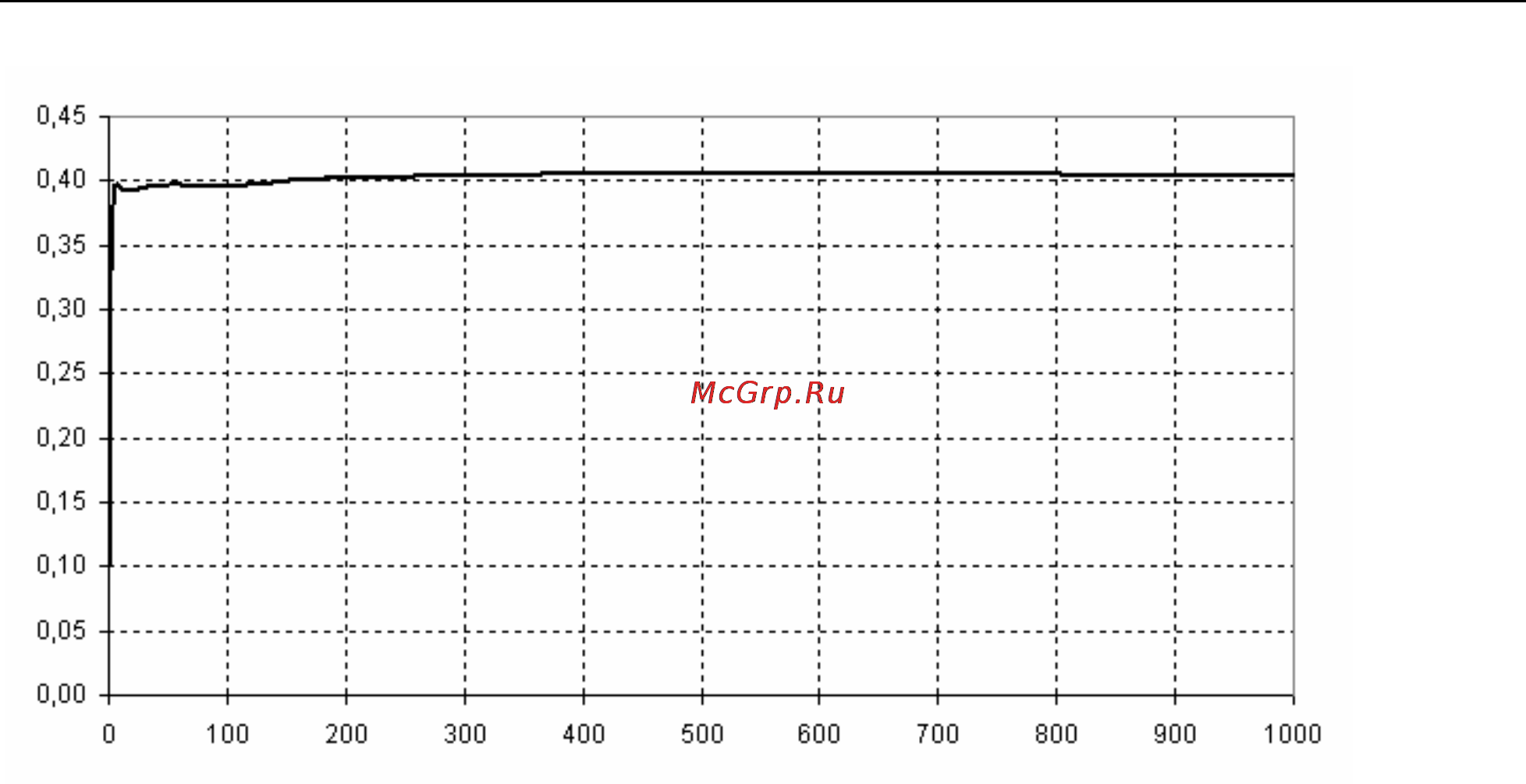

Phase error (to reference conditions): < ± 0.5 degrees
Temperature coefficient: 0.005 % of range/ °C
Safety: 600 V CAT IV, type B sensor, pollution
degree 2
