Fluke 1760 [17/110] Warning

Introduction

Safety Instructions on Device Housing 1

1-7

If you are in doubt as regards the safe operation of the device, immediately shutdown the

unit and the respective accessories, secure them against inadvertent switching on and

bring them to an authorized service agent.

Safety Instructions on Device Housing

Mains Connection

The mains connection must conform to the ranges/values as inscribed on the instrument

labels.

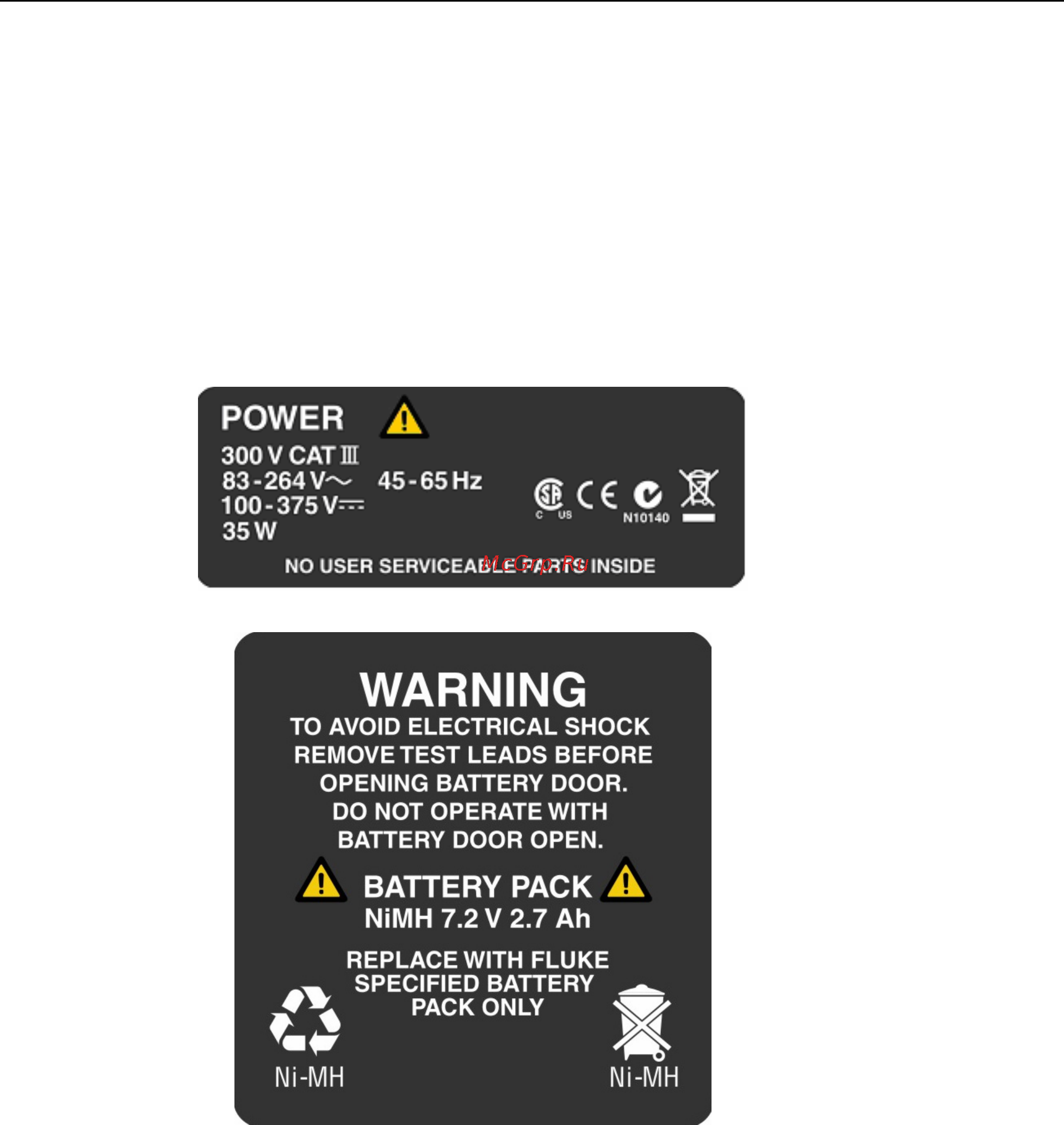

Figure 1-2 shows the instrument labels.

schild-mains.wmf

schild-akku.wmf

Figure 1-2. Instrument Labels

Warning

Risk of voltage peaks in higher categories. Connect the supply

cable of the device only to sections CAT I, II or III of the supply

system (Refer to the ‘Functional Description’ section) the

voltage to earth may not exceed 300 V.
