7/8/96-B 11
4. Commands
4.1 Procedure of Control Code Handshaking
4.1.1 Control codes without parameters

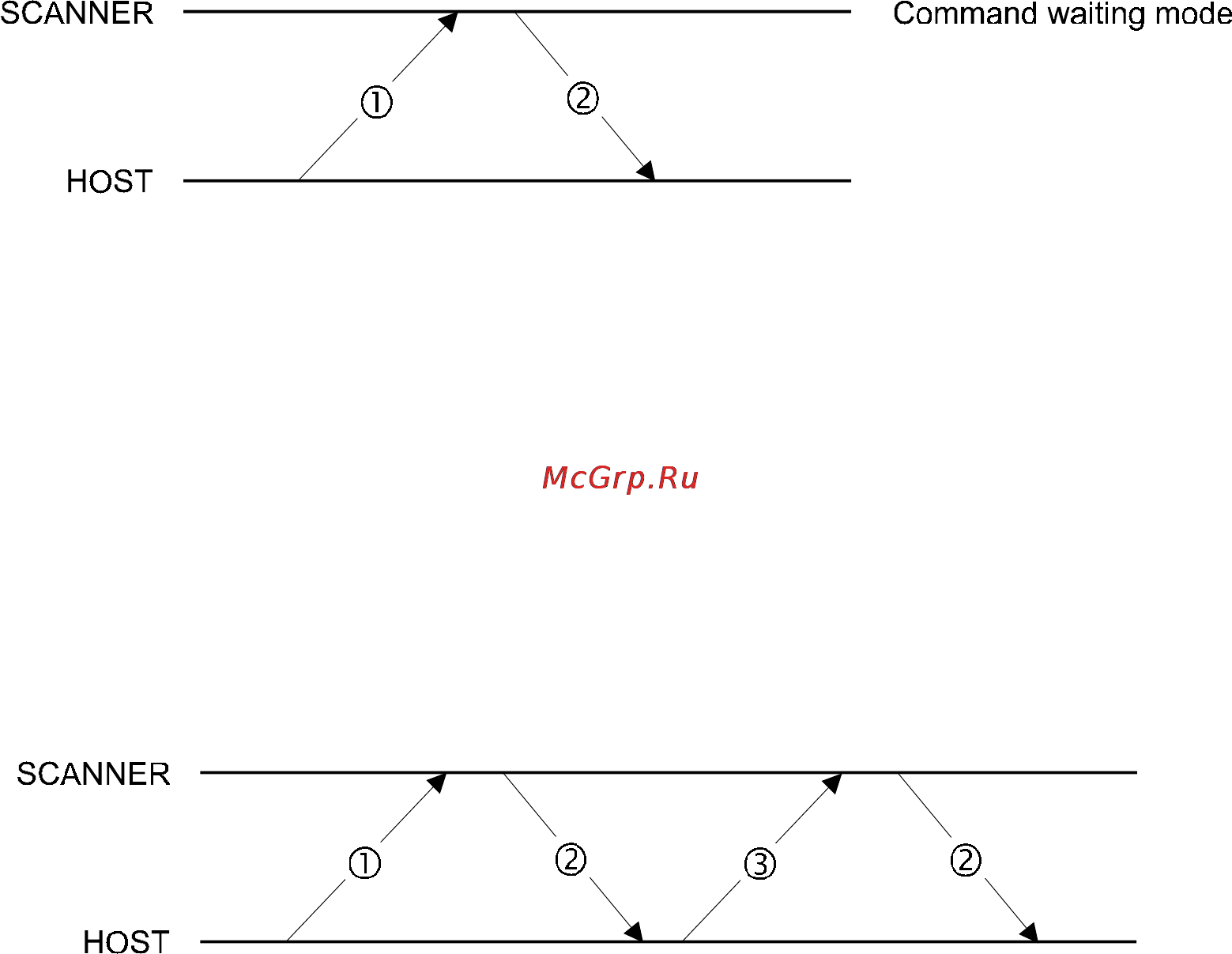

1) Control code from the host computer
2) Response from the scanner
ACK( 06H ): Legal control code is received.
(The scanner accepts the control code.)
NACK( 15H ): Illegal control code is received.
(The scanner does not accept the control code.)
4.1.2 Control codes with parameters
1) Control code from the host computer
2) Response from the scanner
ACK( 06H ): Legal control code is received.
(The scanner accepts the control code.)
NACK( 15H ): Illegal control code is received.
(The scanner does not accept the control code.)
3) If the host receives ACK, it sends the parameters.
4) Response from the scanner
ACK( 06H ): Legal parameters are received.
(The scanner accepts the parameters.)
NACK( 15H ): Illegal parameters are received.
(The scanner does not accept the parameters.)
