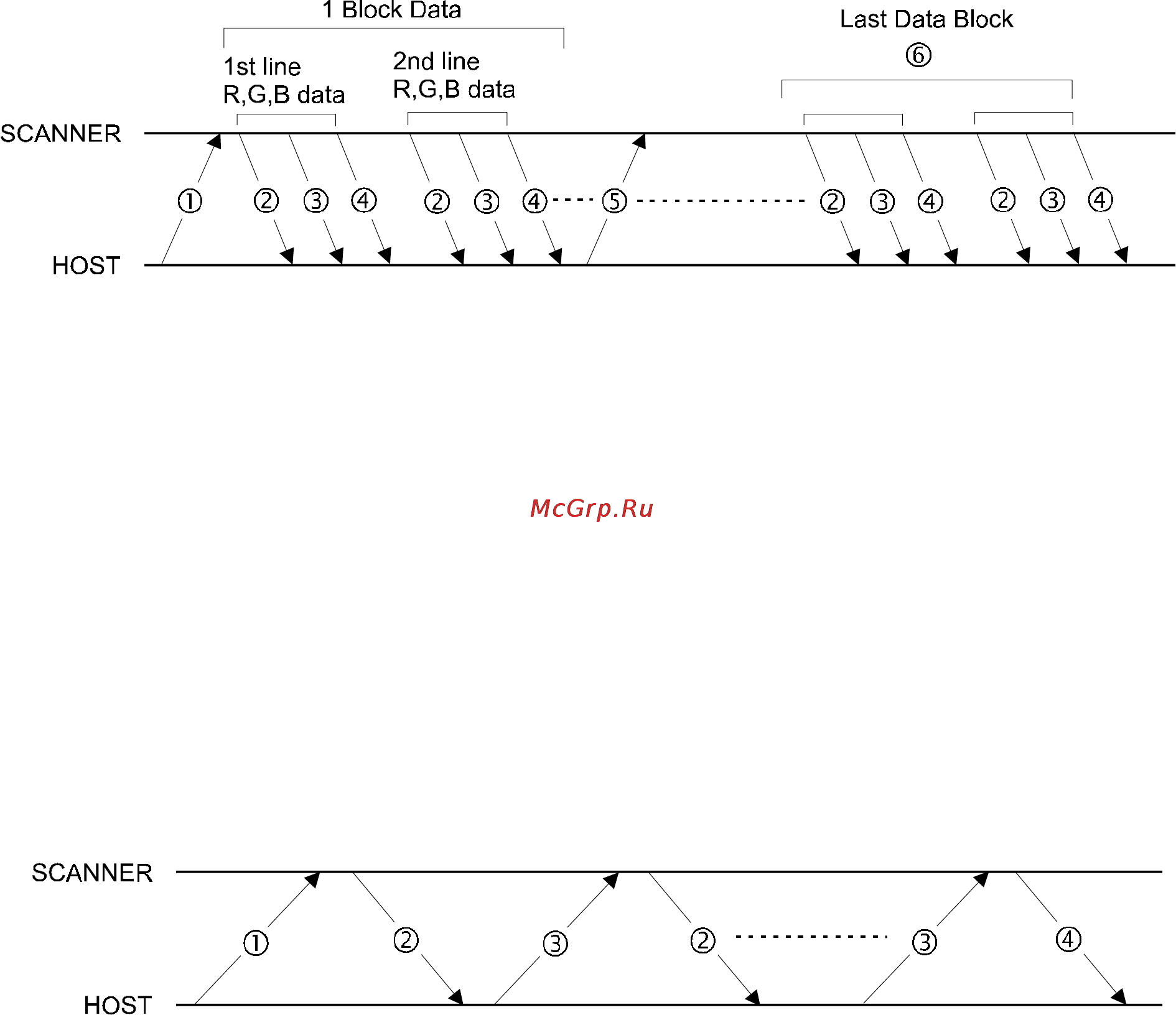

4.2.5 Image data transfer: line sequence mode (Block transfer mode)

1) Control code from the host computer.

2) The Data-Block(G or R) from the scanner.

3) The Data-Block(R or G) from the scanner.

4) The Data-Block(Blue) from the scanner.

5) Response from the host computer.

ACK( 06H ): Continue and send the next data

CAN( 18H ): Abort

6) The last Data-Block

Note: The host computer should not send back ACK(06H) after receiving the last Data-Block.

4.2.6 Image data transfer: Byte sequence mode

1) Control code from the host computer.

2) The Data-Block(R,G,B 1Block data) from the scanner.

3) Response from the host computer.

ACK( 06H ): Continue and send the next data

CAN( 18H ): Abort

4) The last Data-Block

Note: The host computer should not send back ACK(06H) after receiving the last Data-Block.
