7/8/96-B 13

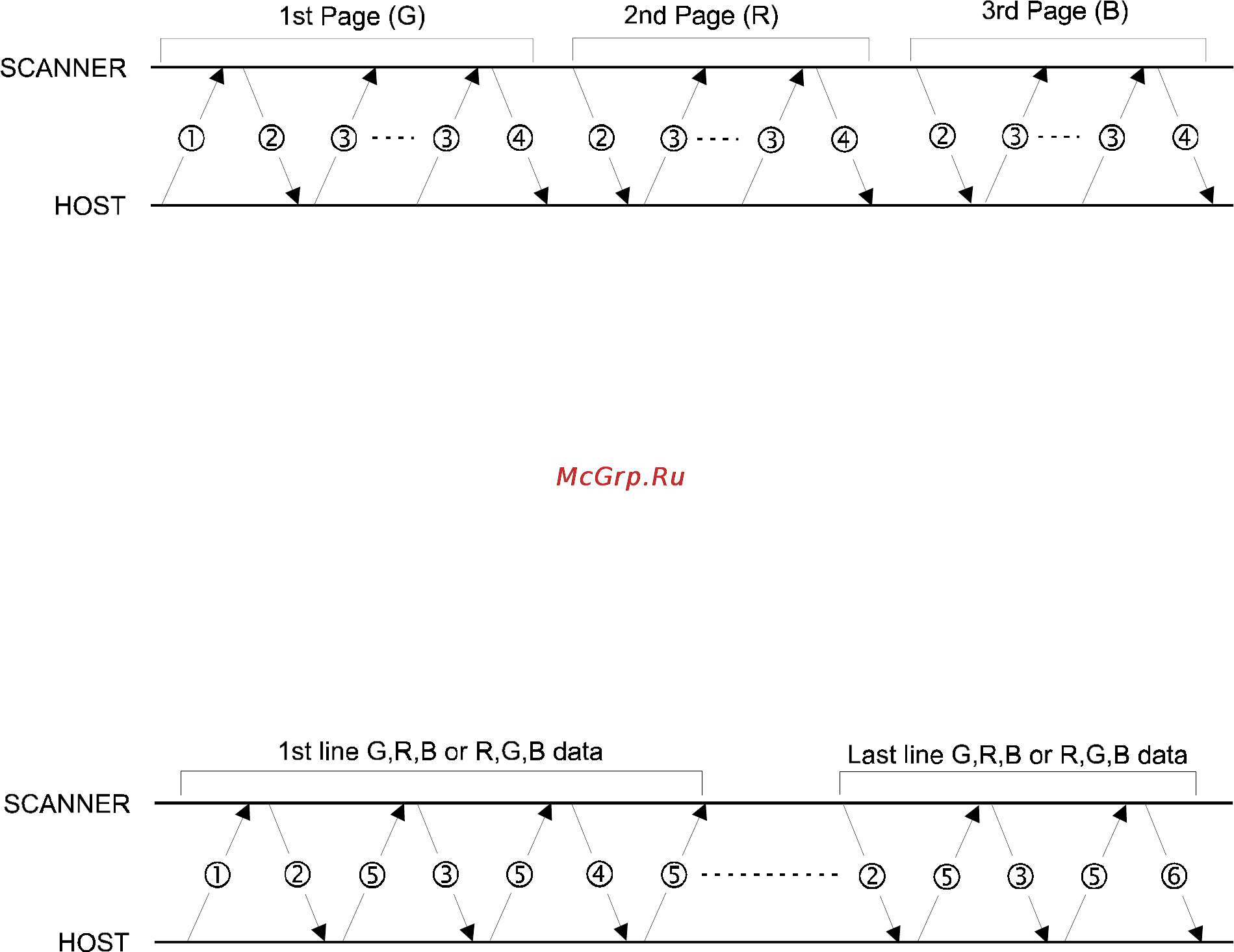

4.2.3 Color reading (Page sequence mode)
1) Control code from the host computer.
2) The Data-Block from the scanner.
3) Response from the host computer.
ACK( 06H ): Continue and send the next data
CAN( 18H ): Abort
4) The last Data-Block
Note: The host computer should not send back ACK(06H) after receiving the last Data-Block.
4.2.4 Image data transfer: Line sequence mode
1) Control code from the host computer.
2) The Data-Block(The first color data) from the scanner.
3) The Data-Block(The 2nd color data) from the scanner.
4) The Data-Block(The 3rd color data) from the scanner.
5) Response from the host computer.
ACK( 06H ): Continue and send the next data
CAN( 18H ): Abort
6) The last Data-Block
Note: The host computer should not send back ACK(06H) after receiving the last Data-Block.
