6 7/8/96-B

3. Interfaces

Bi-di Parallel I/F and SCSI

3.1 Bi-di Parallel I/F

Data: 8 bit Parallel

Handshake: BUSY, ACK handshaking

Signal: TTL level

Connector: 36 pins

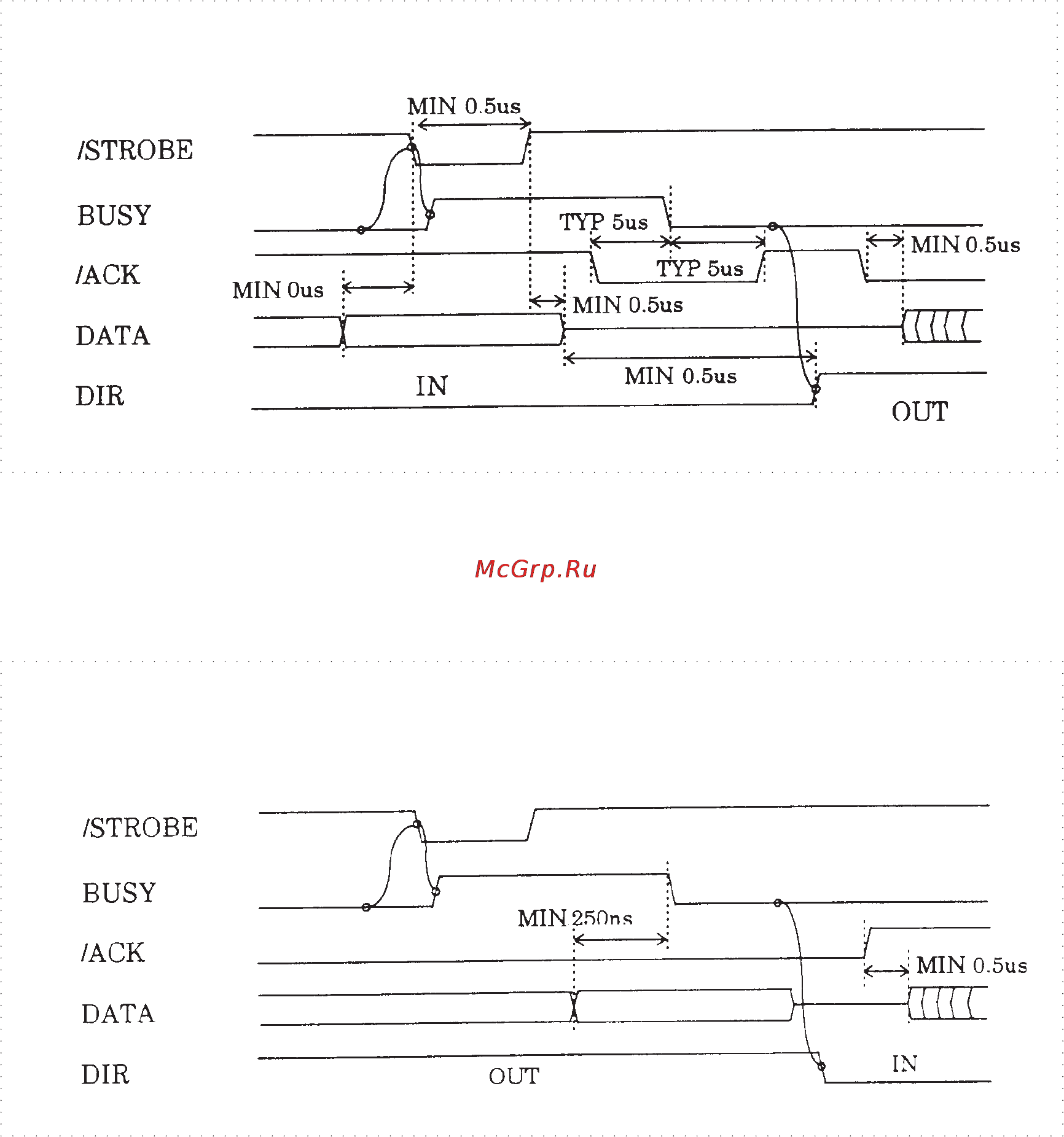

Parallel interface timing chart

(1) Timing chart of input (Host to scanner)

(2) Timing chart of output (Scanner to Host)
