7/8/96-B 7

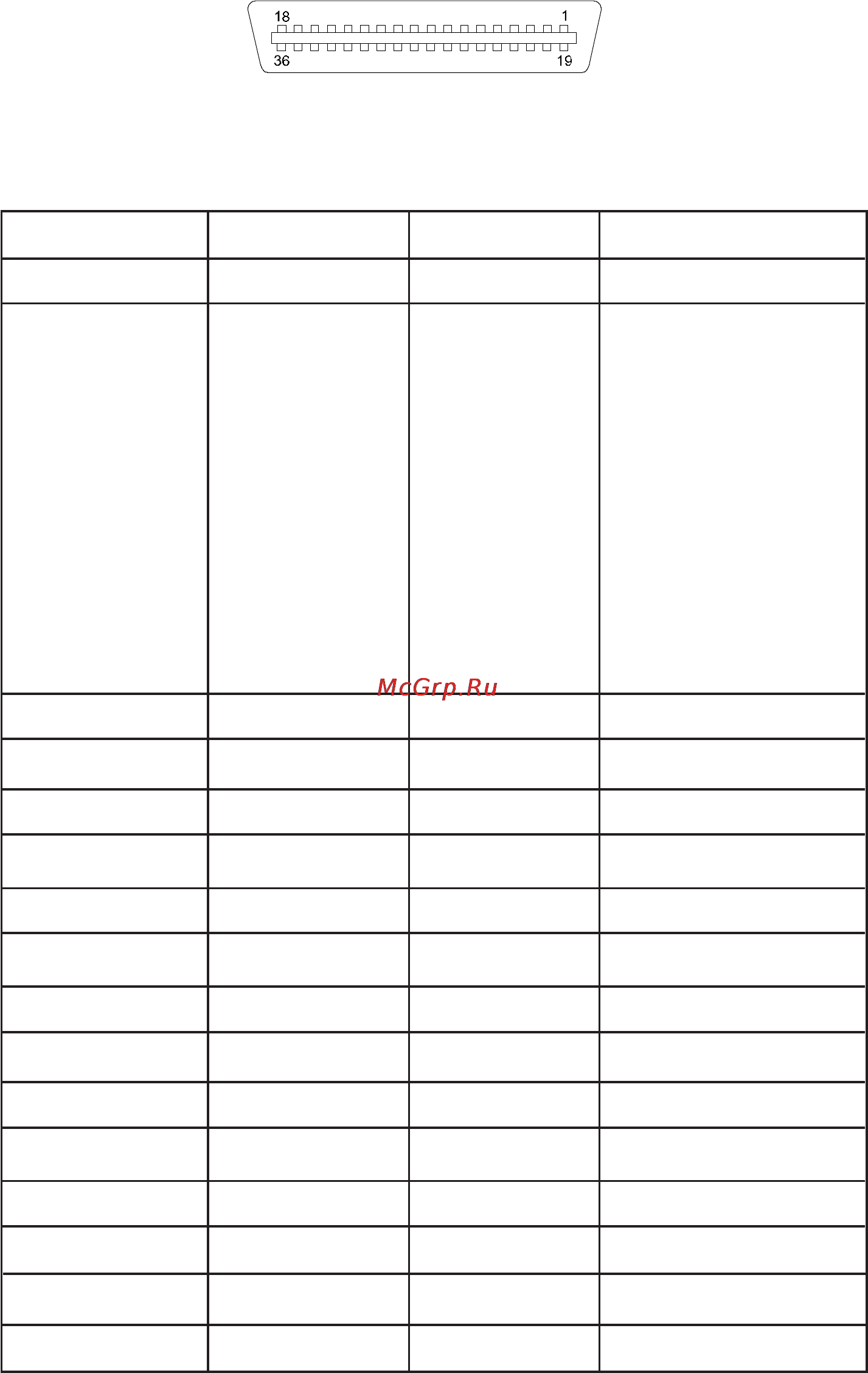

Parallel interface pin assignments

Pin No. Signal_Name Direction Function

1 /STROBE I Data strobe pulse

2 DATA0 I/O 8 bit Data Bus

3 DATA1 I/O

4 DATA2 I/O

5 DATA3 I/O

6 DATA4 I/O

7 DATA5 I/O

8 DATA6 I/O

9 DATA7 I/O

10 /ACK O acknowledge

11 BUSY O Scanner Busy

12 NC

13 GND ground

14~15 NC

16 GND — ground

17 C_GND — FG

18 NC

19~30 GND — ground

31 INIT I Initial Min 50µsec

32 NC

33 GND — ground

34,35 NC

36 DIR I Direction
