Key Function
9 [Back] For moving to the previous step or layer
in the navigation structure.
10
Arrows [
▲
] [
▼
]
For switching between parameter groups,
parameters, and within parameters, or
increasing/decreasing parameter values.
Arrows can also be used for setting local
reference.
11 [OK] Press to access parameter groups or to
enable a selection.
12
[►]
Press to move from left to right within
the parameter value to change each digit
individually.
Table 3.3 Legend to Illustration 3.1, Navigation Keys
D. Operation keys and indicator lights (LEDs)
Key Function
13 Hand On Starts the frequency converter in local control.
•
An external stop signal by control input or
serial communication overrides the local
hand on.
14 O/Reset Stops the motor but does not remove power
to the frequency converter or resets the
frequency converter manually after a fault has
been cleared.
15 Auto On Puts the system in remote operational mode.
•
Responds to an external start command by
control terminals or serial communication.
Table 3.4 Legend to Illustration 3.1, Section D
WARNING
ELECTRICAL HAZARD
Even after pressing the [O/Reset] key, voltage is present
at the terminals of the frequency converter. Pressing the
[O/Reset] key does not disconnect the frequency
converter from mains. Touching live parts can result in
death or serious injury.
•
Do not touch any live parts.
3.1.2 The Right-key Function on NLCP
Press [►] to edit any of the 4 digits on the display
individually. When pressing [►] once, the cursor moves to
the rst digit, and the digit starts ashing as shown in
Illustration 3.3. Press the [
▲
] [
▼
] to change the value.
Pressing [►] does not change the value of the digits, or
move the decimal point.
130BC440.10
Setup 1
Setup 1
Setup 1
Setup 1
Setup 1

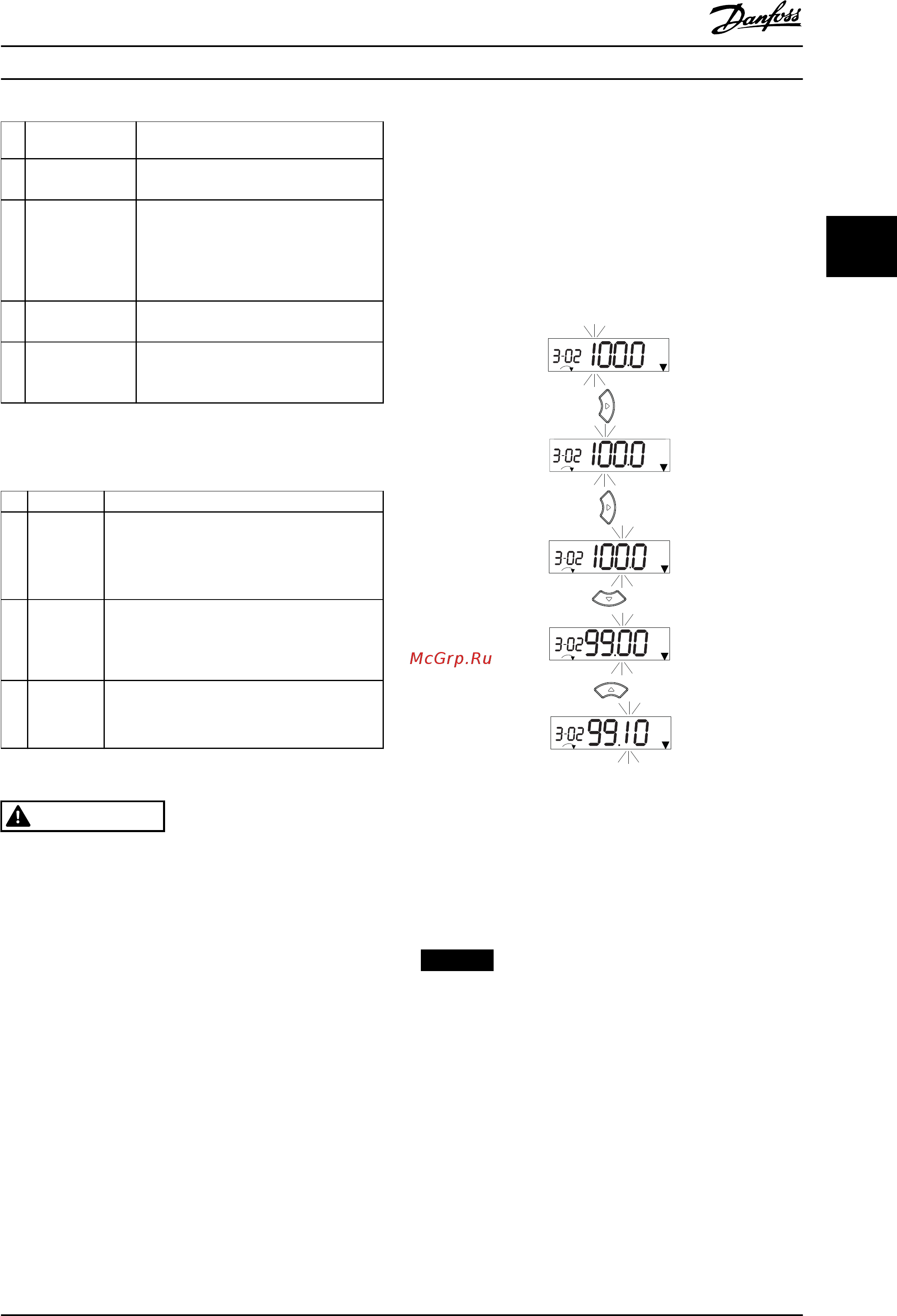

Illustration 3.3 Right-key Function
[►] can also be used for moving between parameter
groups. When in Main Menu, press [►] to move to the rst
parameter in the next parameter group (for example, move
from parameter 0-03 Regional Settings [0] International to
parameter 1-00 Conguration Mode [0] Open loop).
NOTICE
During start-up, the NLCP shows the message LCP ON.
When this message is no longer shown, the frequency
converter is ready for operation. Adding or removing
options can extend the duration of start-up.
Programming Programming Guide
MG07C202 Danfoss A/S © 03/2016 All rights reserved. 13
3 3
