2U4FH-8L

6 7

English

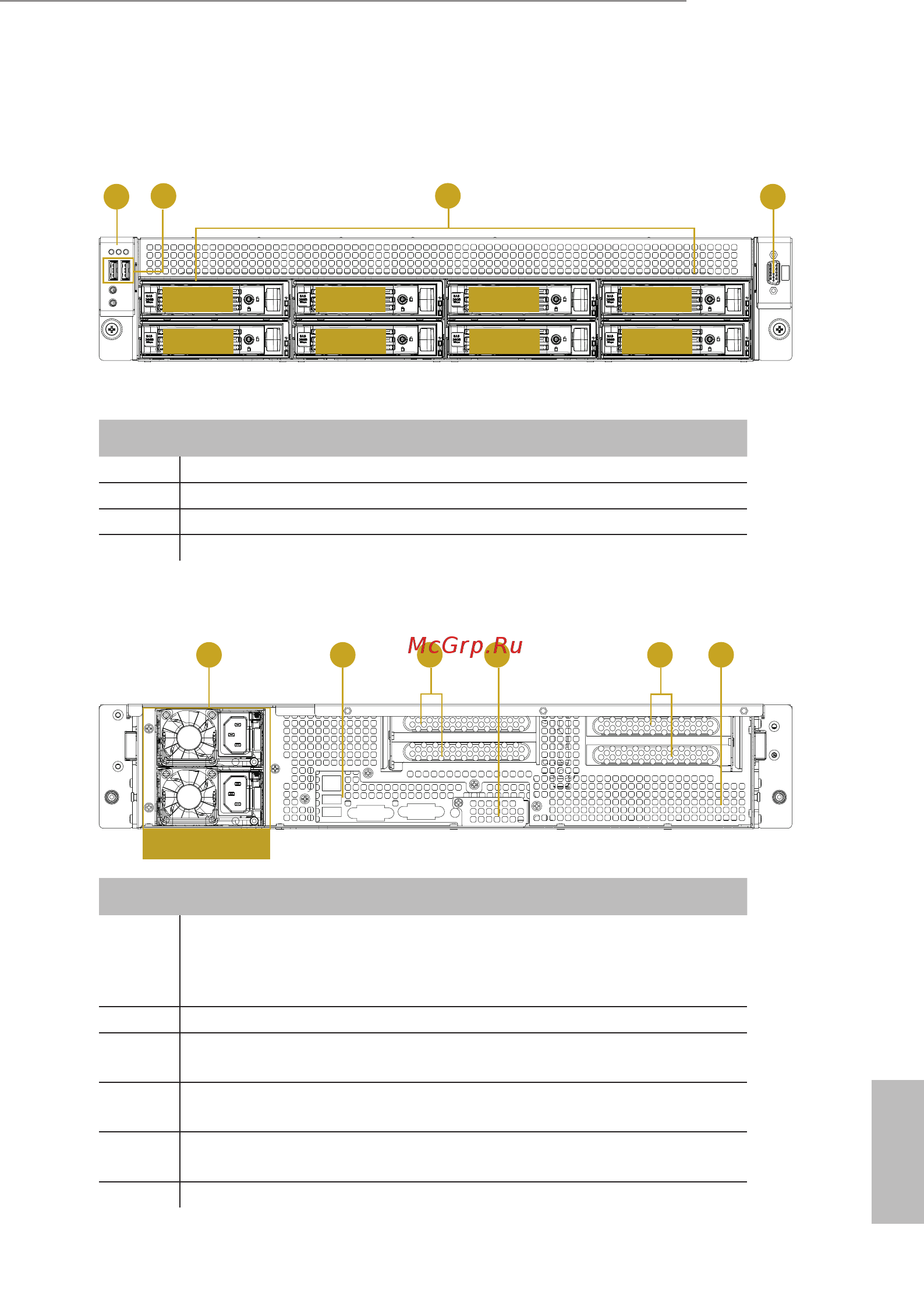

2.3 System Front Panel

HDD4

HDD5

HDD6

HDD7

HDD0

HDD1

HDD2

HDD3

No. Description

1 Control Panel Buttons and LEDs

2 2 x USB 2.0 Ports

3 8 x 3.5" Hot-Swap HDD Trays (HDD0~HDD7)

4 VGA Port

2.4 System Rear Panel

Redundant PSU 1+1:

Only one PSU is allowed to be

removed while the server is running.

3 4 6

No. Description

1 2 x Power Supply Units (Redundant PSU 1+1)

*Server requires 1 working PSU, with 1 redundant PSU. You must have at least one active

supply, installed, functioning and connected to AC. Only one of the PSUs is allowed to be

removed while the server is running.

2 I/O Shield (depends on the specication of the server board)*

3 2 x PCI Express Slots (on the riser card assembly)

*Supports Low prole and FHHL (Full High Half Length) PCIe cards

4 1 x LAN Mezzanine Card Slot

*Support for 1GbE x 2, 10GbE x2 or SFP+ (Fiber) x2

5 2 x PCI Express Slots (on the riser card assembly)

*Supports Low prole and FHHL (Full High Half Length) PCIe cards

6 Rear Vent*

*e locations of I/O shield and rear vent may vary depending on the system and server board models.
