ASRock 2U4FH-8L [35/43] Chassis cables
![ASRock 2U4FH-8L [35/43] Chassis cables](/views2/1694126/page35/bg23.png)
2U4FH-8L
28 29
English

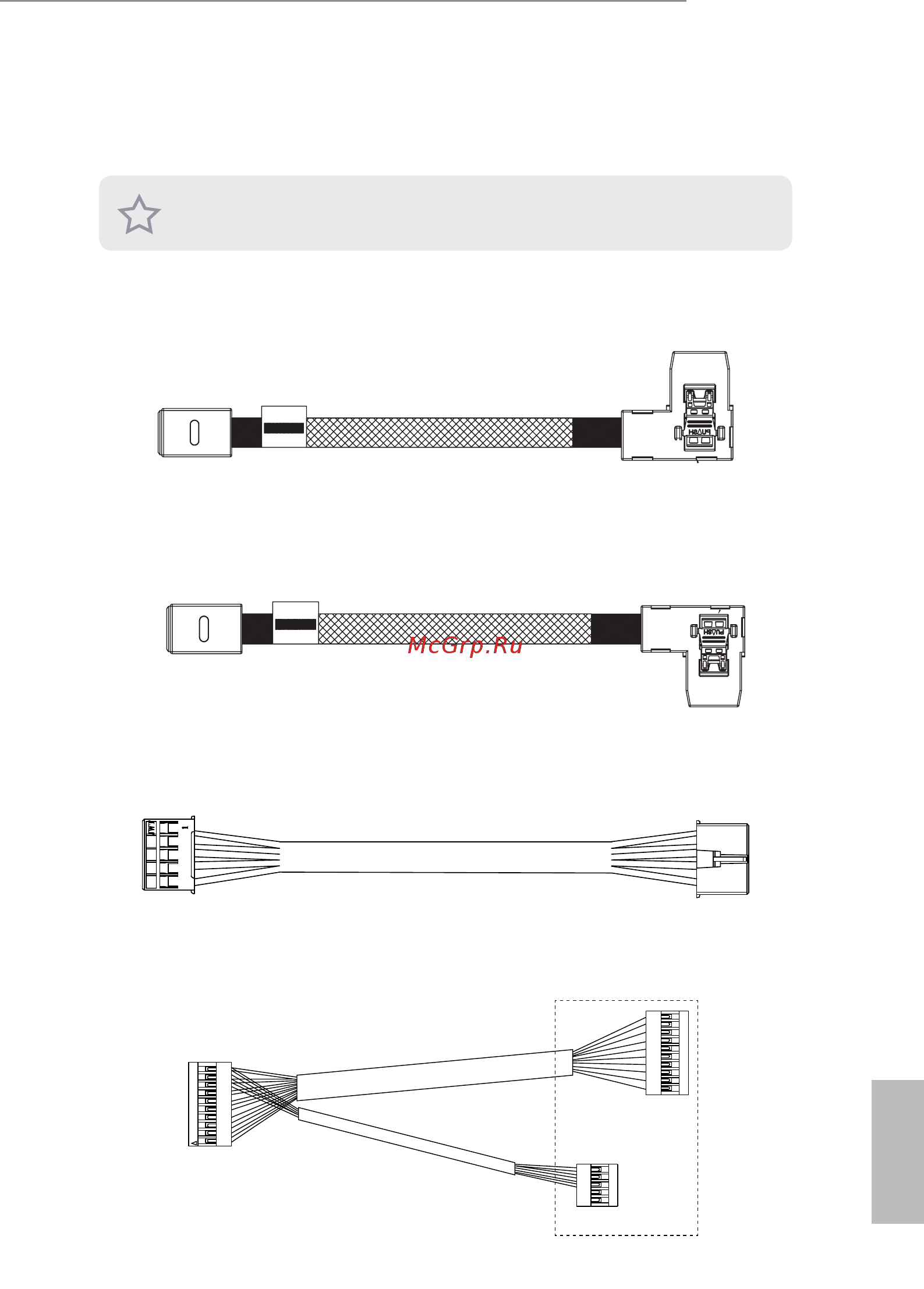

3.8 Chassis Cables
is section lists supported cables for your chassis system.
Cable type and quantity vary depending on the server board that comes with your system.
1. BPB Cable, MiniSAS HD to 8087(L/A) (650mm) (Quantity: 1)
Backplane
Server Board
2. BPB Cable, MiniSAS HD to 8087(R/A) (650mm) (Quantity: 1)
Backplane
Server Board
3. SMBus Cable, 1*5Pin, PDB to MB (650mm) (Quantity: 1)
Server BoardBackplane
4. Front Panel Cable (840+800mm) (Quantity: 1)*
FPB
AUX_PANEL1
PANEL1
Server Board
