2U4FH-8L
22 23
English

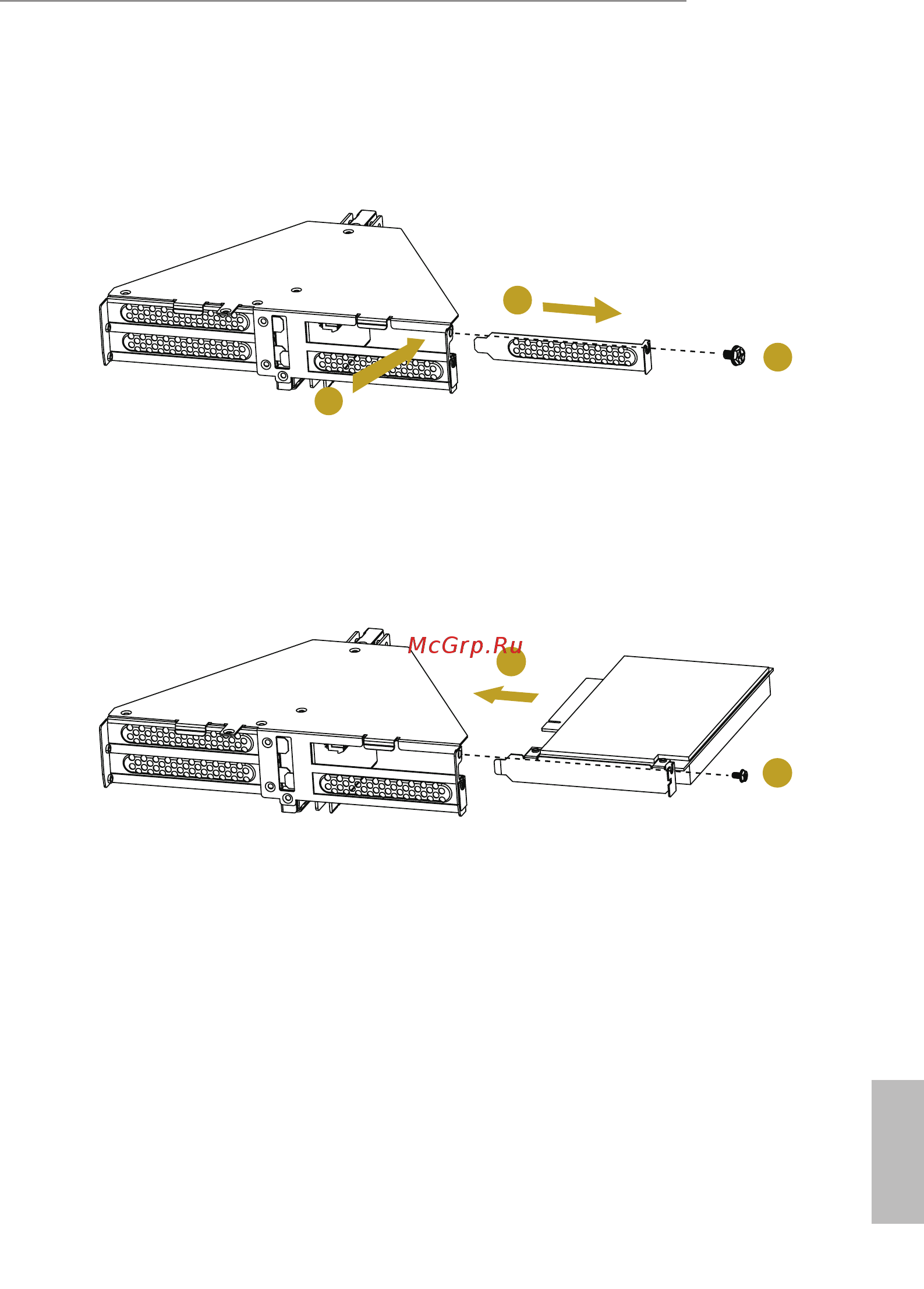

3. Remove the screw securing the ller plate.
4. Push to release the the ller plate from the assembly.
5. Slide the ller plate out sideways.
3
5
4
6. Install an add-in card into the retainer plate and into the connector on the riser card
assembly.
7. Secure the card to the assembly with a screw.
7
6
