ASRock 2U4FH-8L [41/43] Pin definitions
![ASRock 2U4FH-8L [41/43] Pin definitions](/views2/1694126/page41/bg29.png)
2U4FH-8L
34 35
English

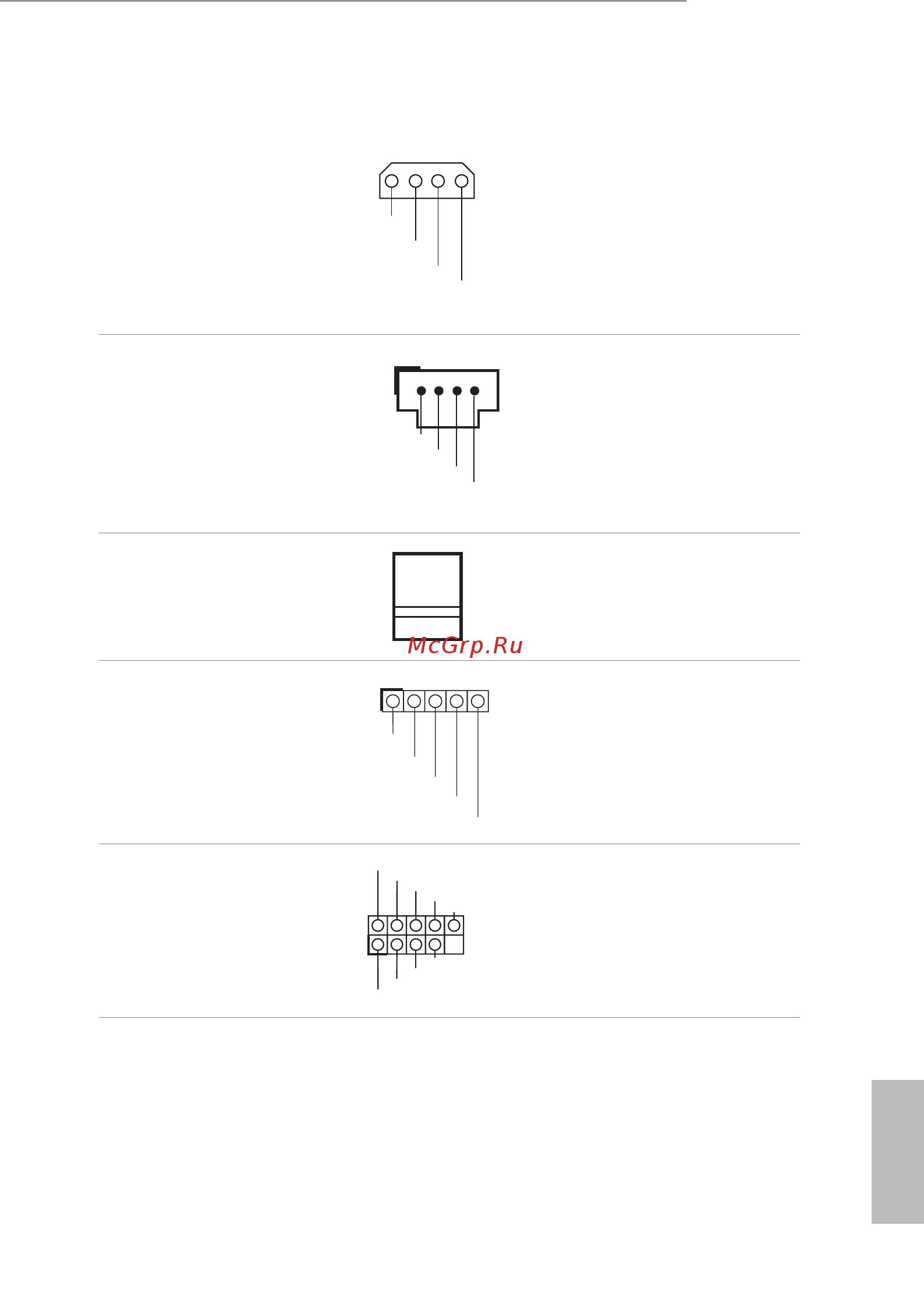

4.4 Pin Denitions
HDD Power Connectors
(PWR_HDD1)
(PWR_HDD2)
(PWR_HDD3)
+5V
+12V
GND1
GND2
e 4-pin connectors
provide power to the
backplane.
SSD Power Connectors
(PWR_HDD4)
(PWR_HDD5)
(PWR_HDD6)
(PWR_HDD7)
+12V_HDD
+5V_HDD
GND
GND
e 4-pin connectors pro-
vide power to the SSDs.
MiniSAS HD Connectors
(HBA0)
(HBA1)
ese connectors are used
to connect a mini-SAS HD
cable to the motherboard.
SMB Connector
(5-pin BMC_SMB1)
1
+3V_SEL
SCL
SDA
GND
GND
e SMB (SubMiniature
version B) connector provides
a communication interface
between the backplane and the
motherboard.
USB 2.0 Header
(9-pin USB_HEADER1)
DUMMY
GND
GND
+B
-B
USB_PWR
+A
-A
USB_PWR
1
e header supports two USB 2.0
ports on the front panel.
