ASRock 2U4FH-8L [14/43] English
![ASRock 2U4FH-8L [14/43] English](/views2/1694126/page14/bge.png)
8 9
English

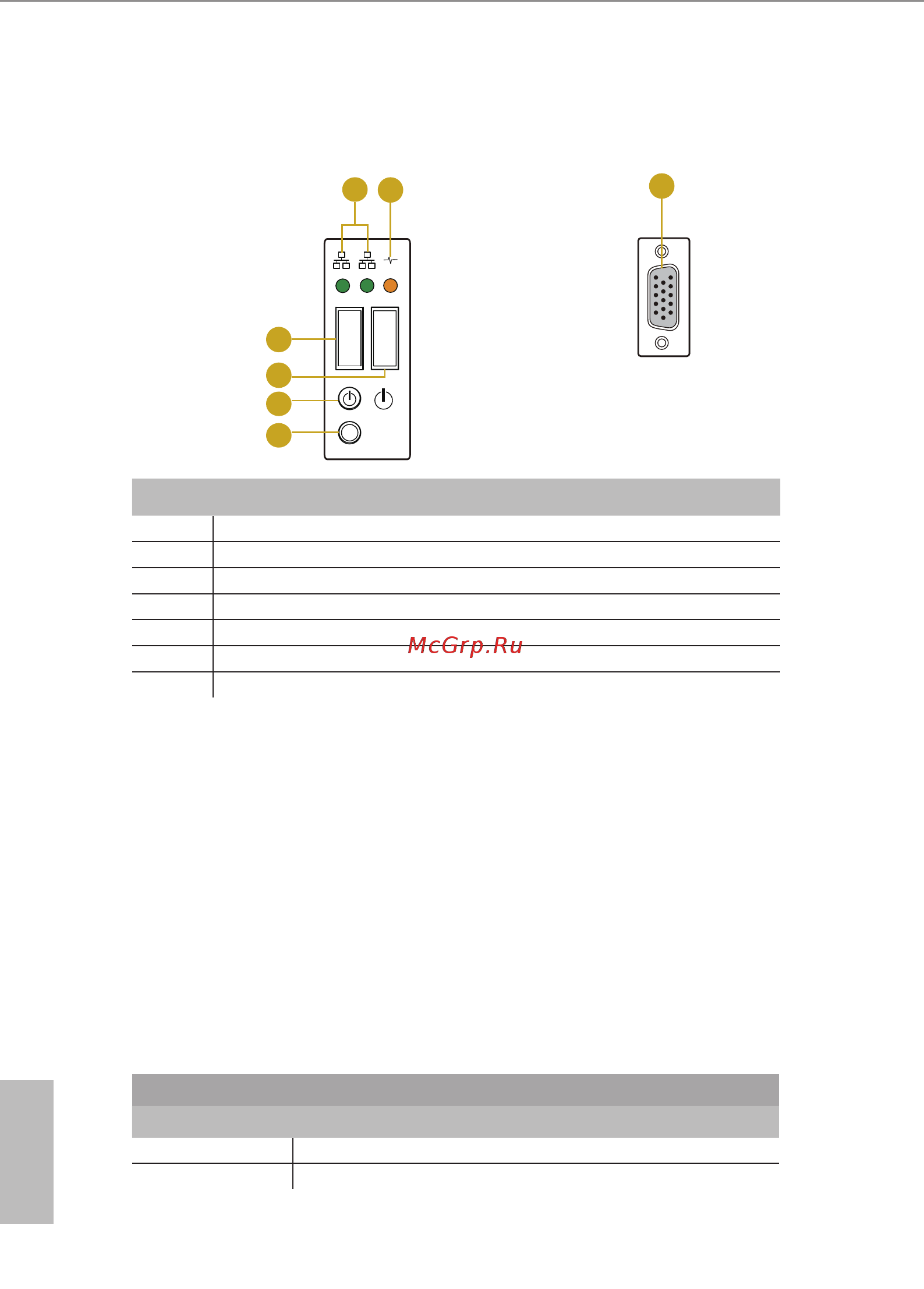

2.5 Front Control Panel Buttons and LEDs
Front Control Panel
UID
USB2
12
USB1
2
6
5
3
4
1
7
No. Description
1 LAN1, LAN2 Activity LED*
2 System Health LED*
3 USB 2.0 Port (USB1)
4 USB 2.0 Port (USB2)
5 Power Button and LED
6 UID Button and LED*
7 VGA Port
*Please be noted that the functions are supported depending on the type of the motherboard.
UID Button
Press the UID button to toggle the front panel UID LED and the baseboard UID LED on
and o. You are able to locate the server you’re working on from behind a rack of servers.
Power Button
Press the power switch button to toggle the system power on and standby/sleep modes.
To remove all power from the system completely, disconnect the power cord from the
server.
Status LED Denitions
Power LED
Status Description
Green Power on
O Power o
