ASRock 2U4FH-8L [36/43] English
![ASRock 2U4FH-8L [36/43] English](/views2/1694126/page36/bg24.png)
30 31
English

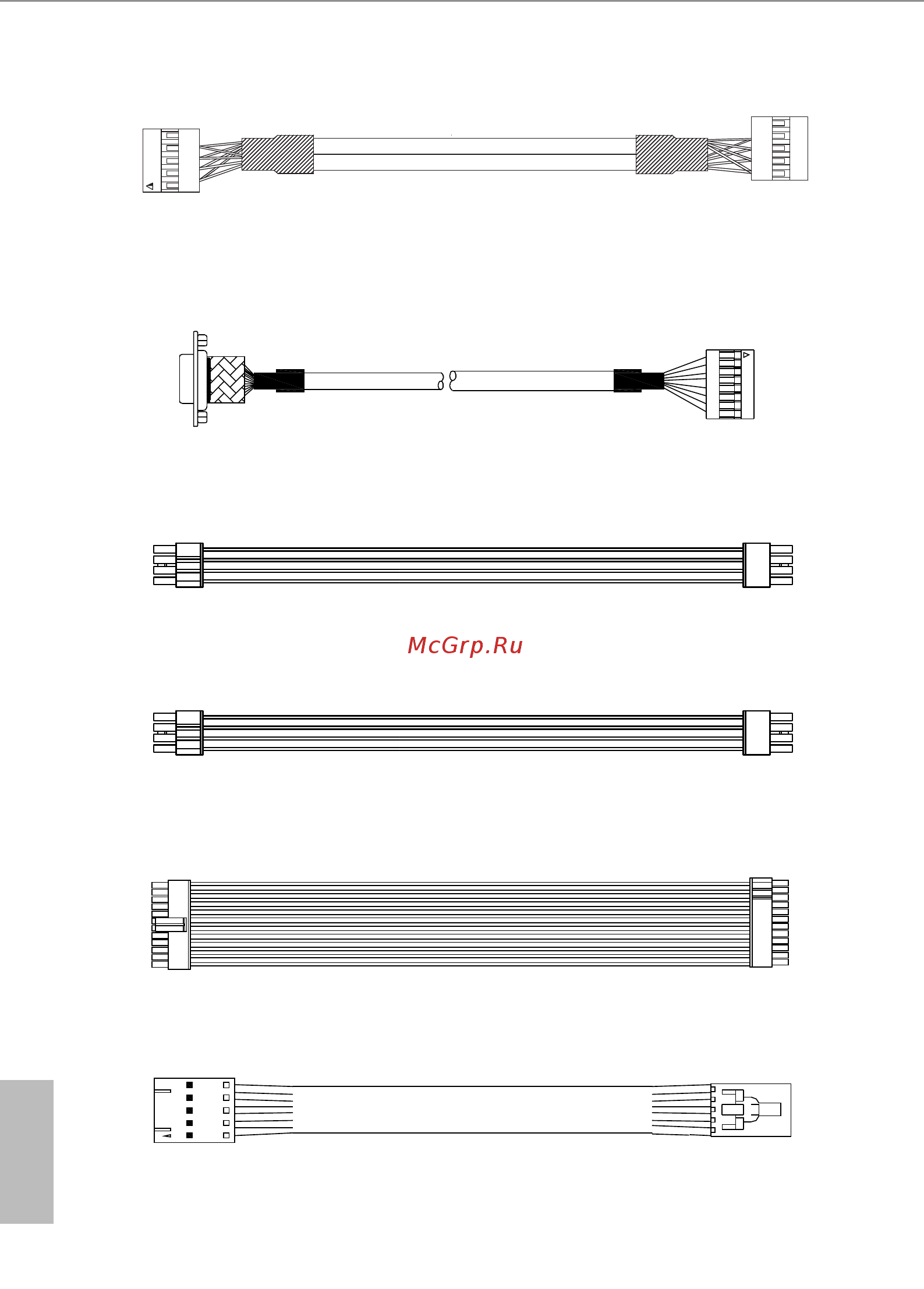

5. USB Cable (1250mm) (Quantity: 5)
Server Board
FPB
6. VGA Cable (850mm) (Quantity: 1)
Server BoardFront Panel
7. Power Cable, ATX 8Pin (200mm) (Quantity: 1)
1
PDBServer Board
8. Power Cable, ATX 8Pin (700mm) (Quantity: 1)
1
PDBServer Board
9. Power Cable, ATX 24Pin (520mm) (Quantity: 1)
Server Board PDB
10. PMBus Cable (500mm) (Quantity: 1)
Server Board PDB
