2U4FH-8L
8 9
English

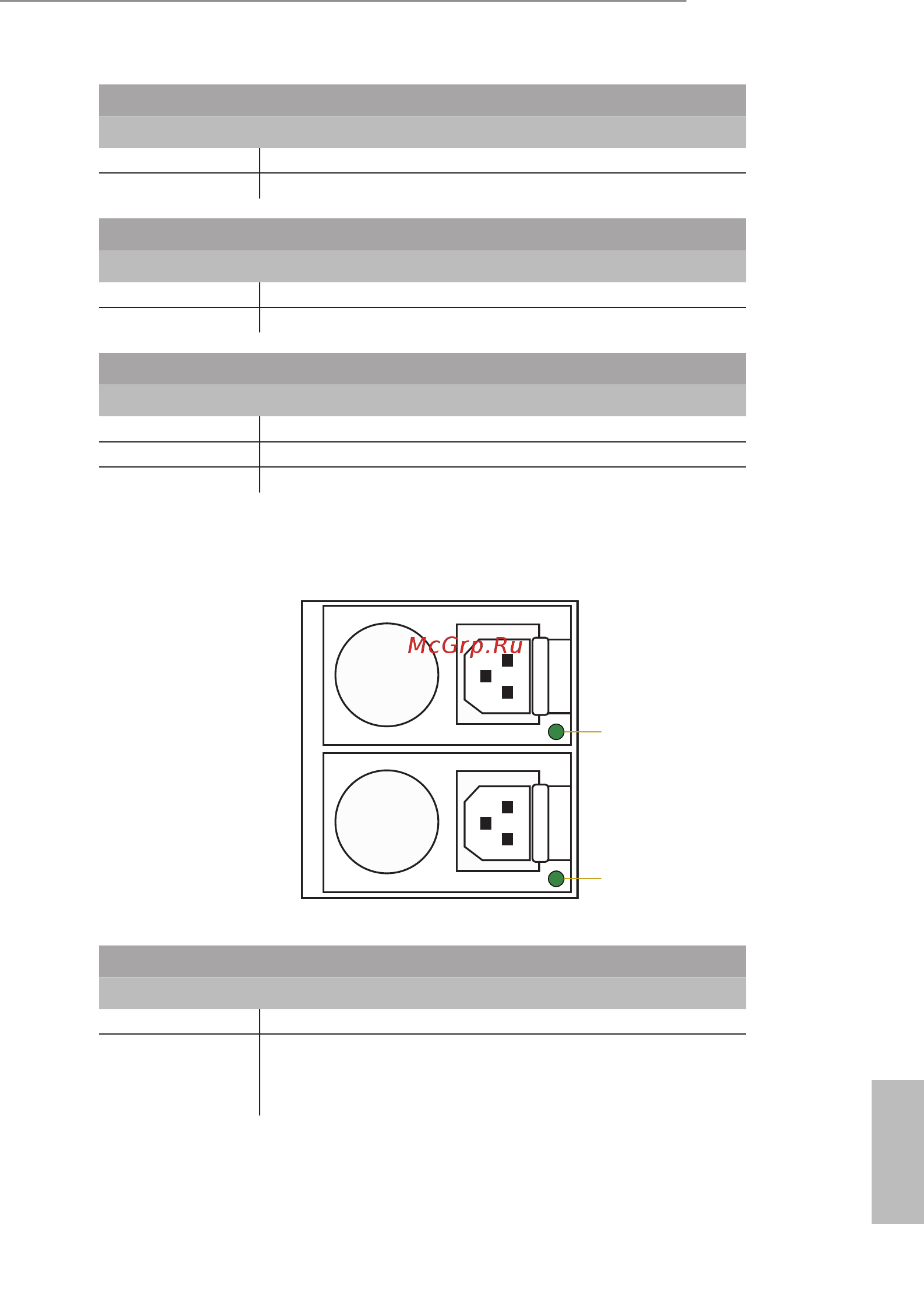

UID LED
Status Description
Blue System identication is active.
O System identication is disabled.
System Health LED
Status Description
Solid Red ere is a fault in the system.
O System is normally operating.
LAN1, LAN2 LED
Status Description
Blinking Green Network access
Solid Green MEZZ LAN1/LAN2 is present.
O No MEZZ LAN1/LAN2 is present.
2.6 PSU LED
Power LED
Power LED
PSU Status LED
Status Description
Green Normal work; output ON and OK
Amber Module fault/protection in operating mode
(failure, OCP, OVP, Fan Fail, OTP, UVP)
AC cord unplugged
