2U4FH-8L
32 33
English

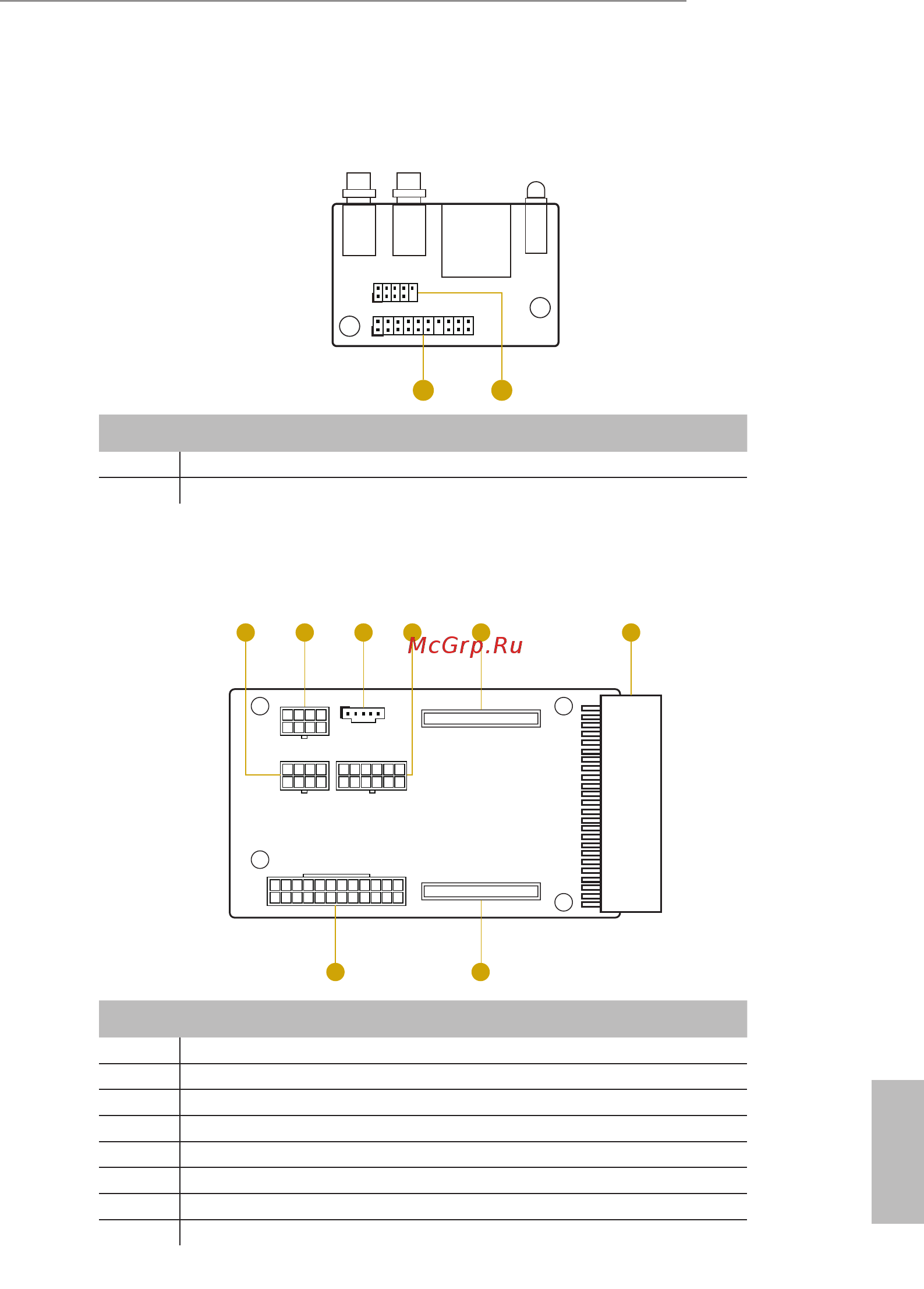

4.2 Front Panel Board (FPB)
Top View
1 2
1
AUX_PANEL1
1
USB_HEADER1
No. Description
1 Front and Auxiliary Panel Header (AUX_PANEL1)
2 USB Header (USB_HEADER1)
4.3 Power Distribution Board (PDB-D)
Top View
1
PWR_HDD1
ATX12V2
ATXPWR1
ATX12V1
J3
PSU2
CON2
CON1
1 2 3 4 5
7
6
8
No. Description
1 ATX 8pin Power Connector (ATX12V1)
2 ATX 8pin Power Connector (ATX12V2)
3 PMBus Connnector (J1)
4 HDD Power Connector (PWR_HDD1)
5 Connector for Power Distribution Board (PDB-B) (CON2)
6 Power Supply Connector (PSU2)
7 ATX 24pin Power Connector (ATXPWR1)
8 Connector for Power Distribution Board (PDB-B) (CON1)
